SMAT-30
Multi-Application Transducer
SMD & Pin version
Pagina 1 van 4

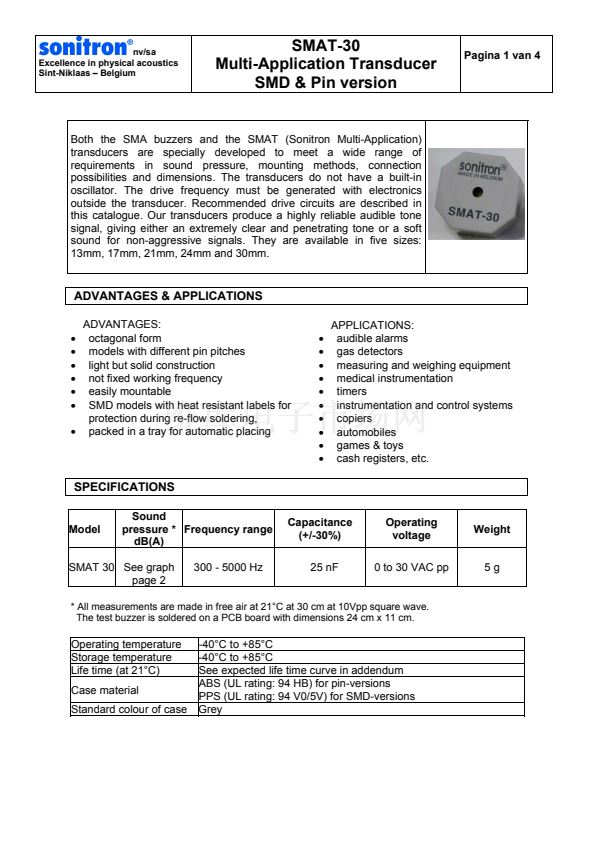

Both the SMA buzzers and the SMAT (Sonitron Multi-Application)
transducers are specially developed to meet a wide range of
requirements in sound pressure, mounting methods, connection
possibilities and dimensions. The transducers do not have a built-in
oscillator. The drive frequency must be generated with electronics

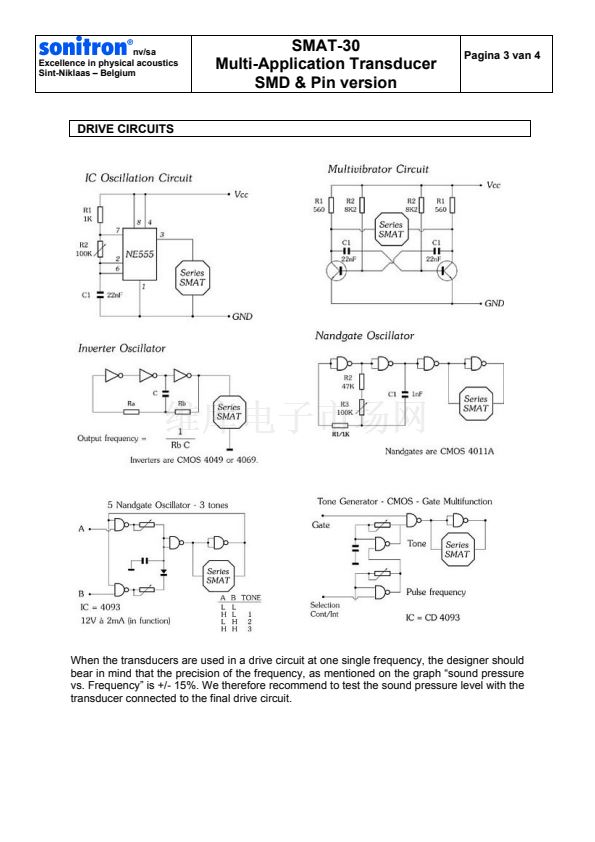

outside the transducer. Recommended drive circuits are described in
this catalogue. Our transducers produce a highly reliable audible tone
signal, giving either an extremely clear and penetrating tone or a soft
sound for non-aggressive signals. They are available in five sizes:
13mm, 17mm, 21mm, 24mm and 30mm.
ADVANTAGES & APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ADVANTAGES:
octagonal form
models with different pin pitches
light but solid construction
not fixed working frequency
easily mountable
SMD models with heat resistant labels for
protection during re-flow soldering,
packed in a tray for automatic placing
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
APPLICATIONS:
audible alarms
gas detectors
measuring and weighing equipment
medical instrumentation
timers
instrumentation and control systems
copiers
automobiles
games & toys
cash registers, etc.
SPECIFICATIONS
Model
Sound
pressure * Frequency range
dB(A)
300 - 5000 Hz
Capacitance
(+/-30%)
25 nF
Operating
voltage
0 to 30 VAC pp
Weight
5g

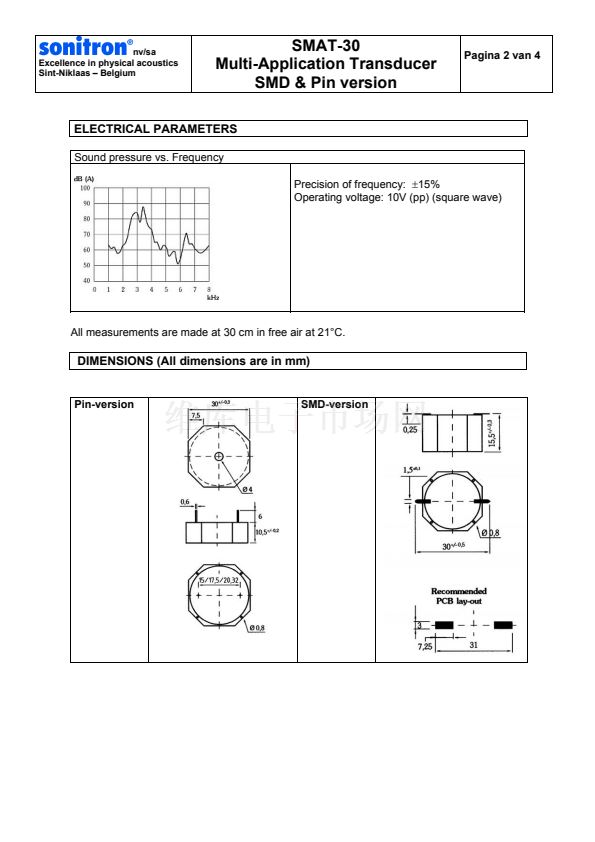

SMAT 30 See graph
page 2
* All measurements are made in free air at 21擄C at 30 cm at 10Vpp square wave.
The test buzzer is soldered on a PCB board with dimensions 24 cm x 11 cm.
Operating temperature
Storage temperature
Life time (at 21擄C)
Case material
Standard colour of case
-40擄C to +85擄C
-40擄C to +85擄C
See expected life time curve in addendum
ABS (UL rating: 94 HB) for pin-versions
PPS (UL rating: 94 V0/5V) for SMD-versions
Grey

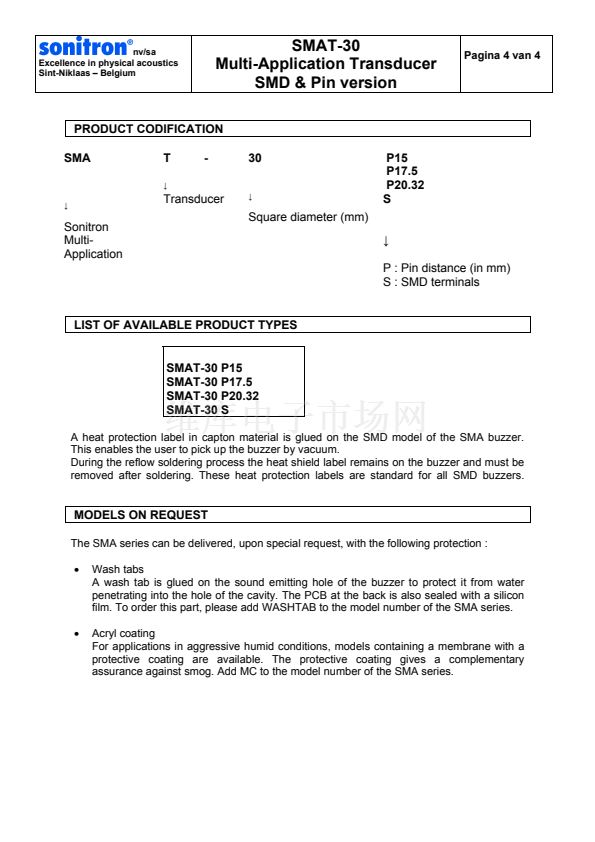

SMAT-30S相關型號PDF文件下載
-
型號
版本
描述
廠商
下載
-
英文版
Multi-Application Transducer SMD & Pin version
ETC
-
英文版
Thomas
-
英文版
Thomas
-
英文版
