SM5902AF

NIPPON PRECISION CIRCUITS INC.

compression and non compression type

shock-proof memory controller

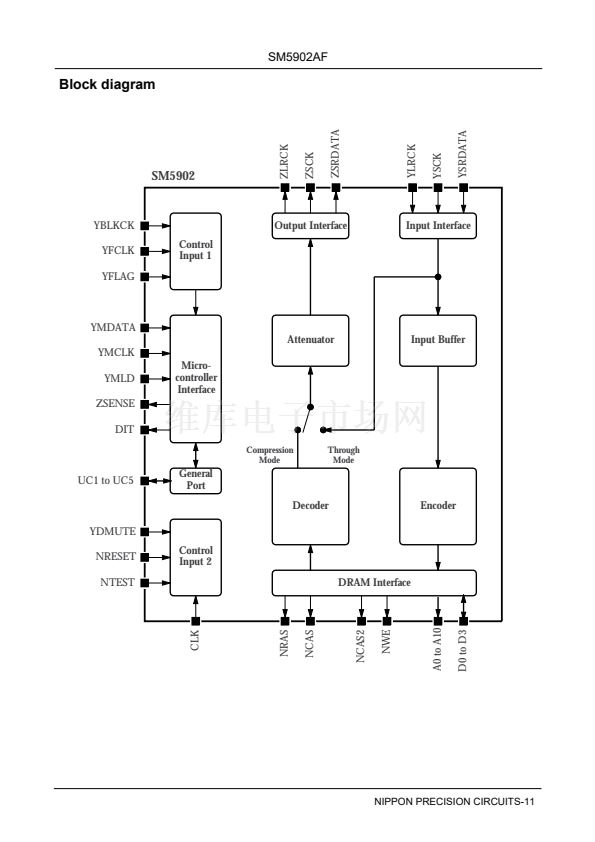

Overview

The SM5902 is a compression and non compres-

sion type shock-proof memory controller LSI for

compact disc players. The compression level can

be set in 4 levels, and external memory can be

selected from 4 options (1M, 4M, 4M脳 2, 16M).

Digital attenuator, soft mute and related functions

are also incorporated. It operates from a 2.4 to 5.5

V wide supply voltage range.

Features

- 2-channel processing

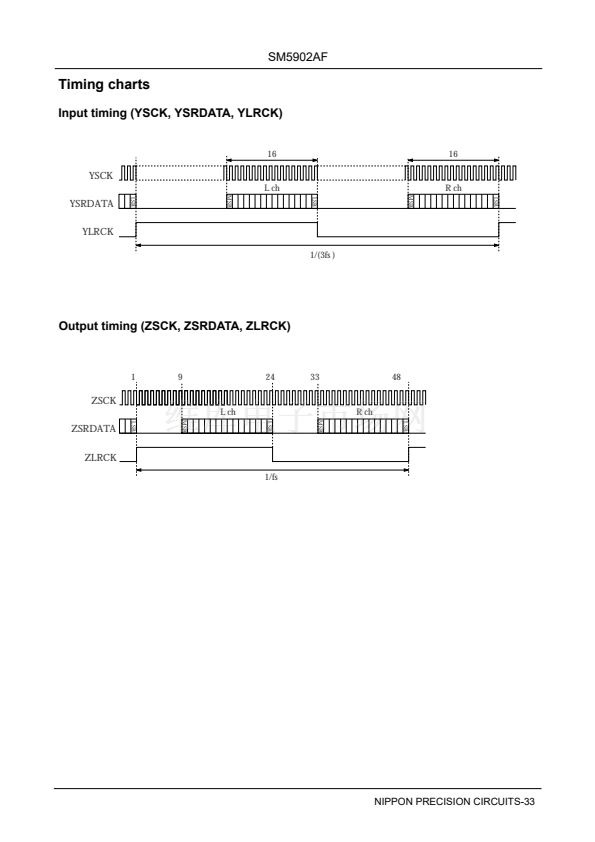

- Serial data input

鈰?/div>

2s complement, 16-bit/MSB first, right-justified

format

鈰?/div>

Wide capture function

(up to 3

脳

speed input rate)

- System clock input

鈰?/div>

384fs (16.9344 MHz)

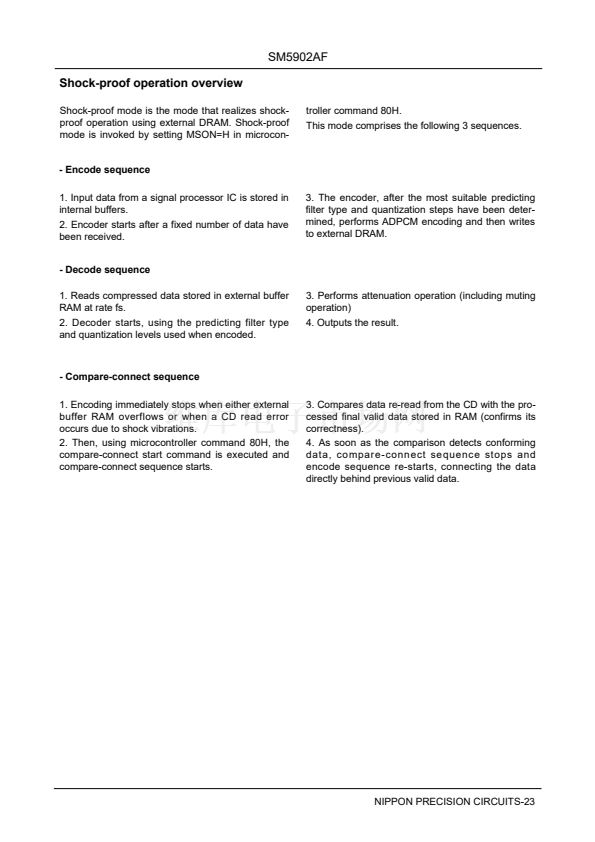

- Shock-proof memory controller

鈰?/div>

ADPCM compression method

鈰?/div>

4-level compression mode selectable

4-bit compression mode 2.78 s/Mbit

5-bit compression mode 2.22 s/Mbit

6-bit compression mode 1.85 s/Mbit

Full-bit non compression mode 0.74 s/Mbit

鈰?/div>

4 external DRAM configurations selectable

脳

16M DRAM (4M

脳

4 bits, refresh cycle =

2048 cycle)

脳

or 2

脳

4M DRAM (1M

脳

4 bits)

脳

1M DRAM (256k

脳

4 bits)

鈰?/div>

DRAM at 5V operation is usable for Low-volt-

age operation

- Compression mode selectable

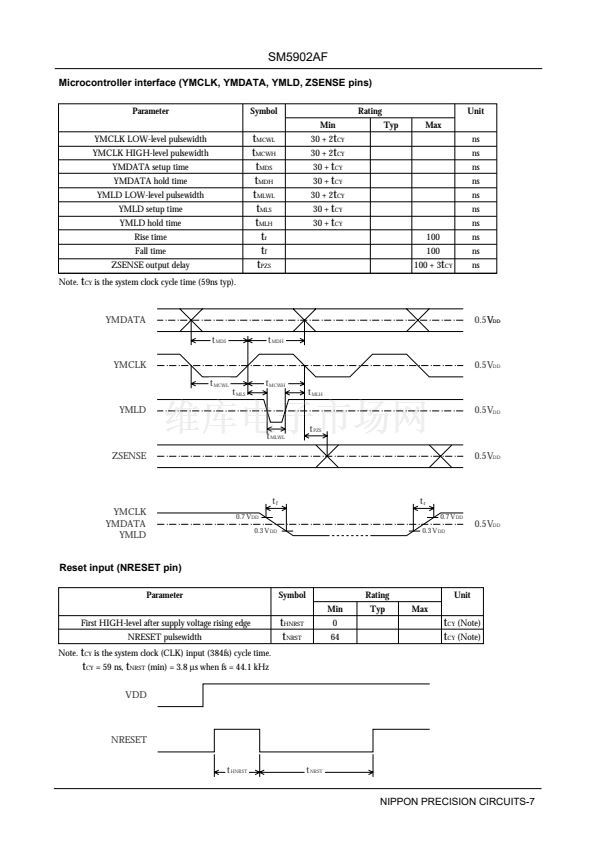

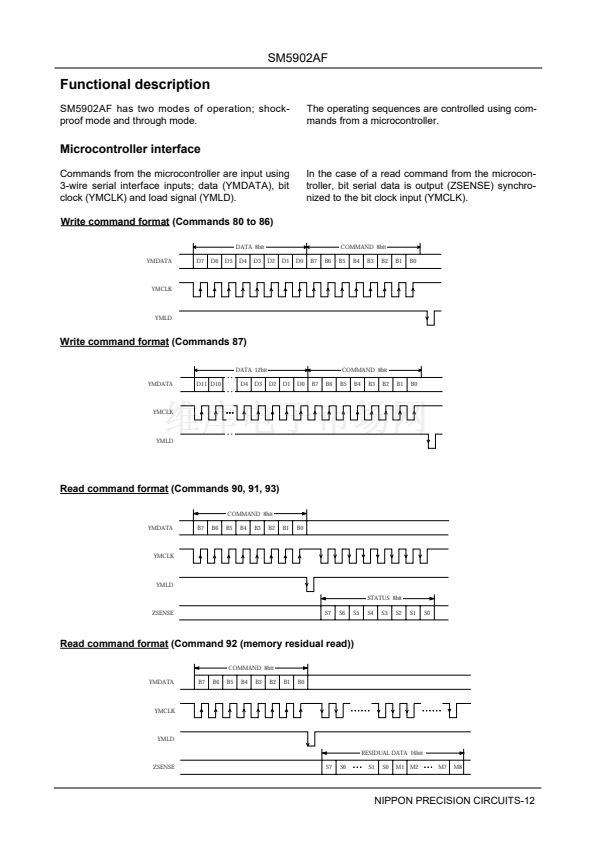

- Microcontroller interface

鈰?/div>

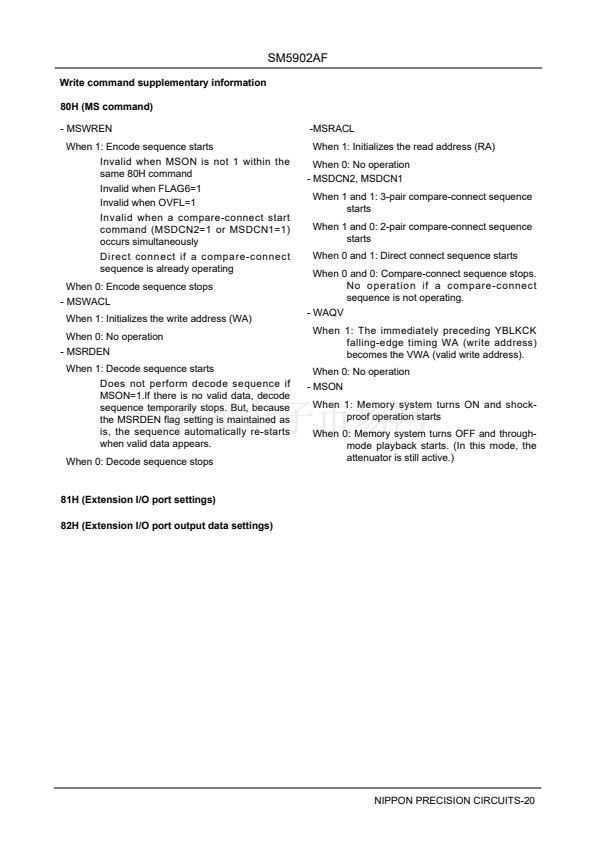

Serial command write and status read-out

鈰?/div>

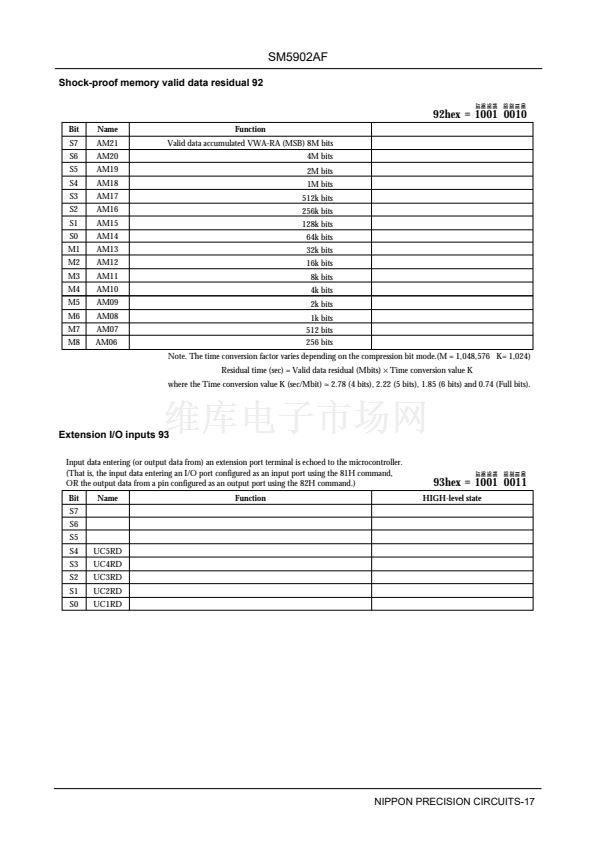

Data residual detector:

15-bit operation, 16-bit output

鈰?/div>

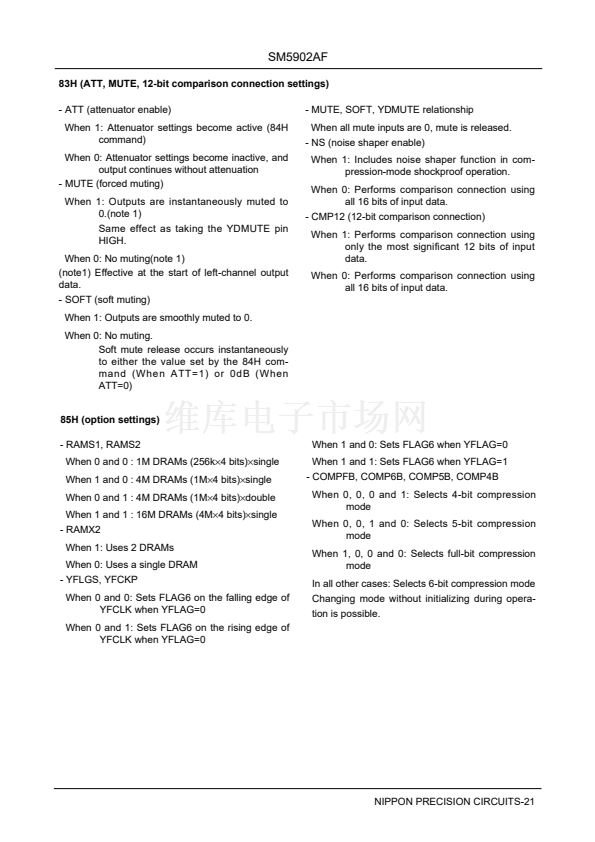

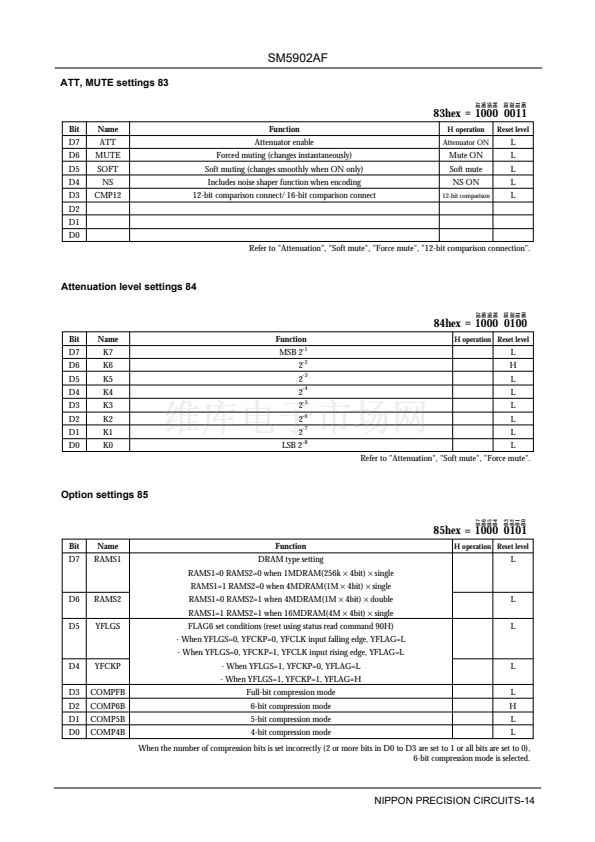

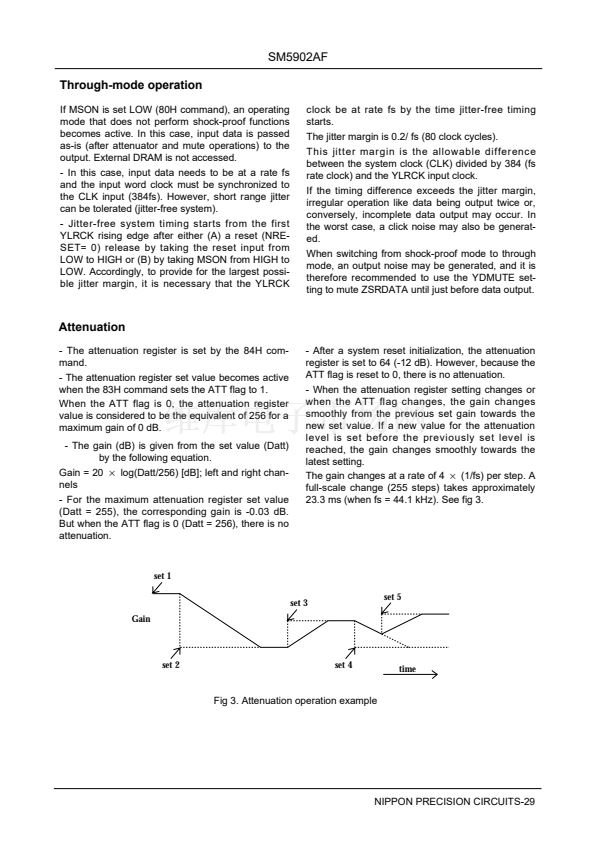

Digital attenuator

8-bit setting

鈰?/div>

Soft attenuator function

Noiseless attenuation-level switching

(256- step switching in 23 ms max.)

鈰?/div>

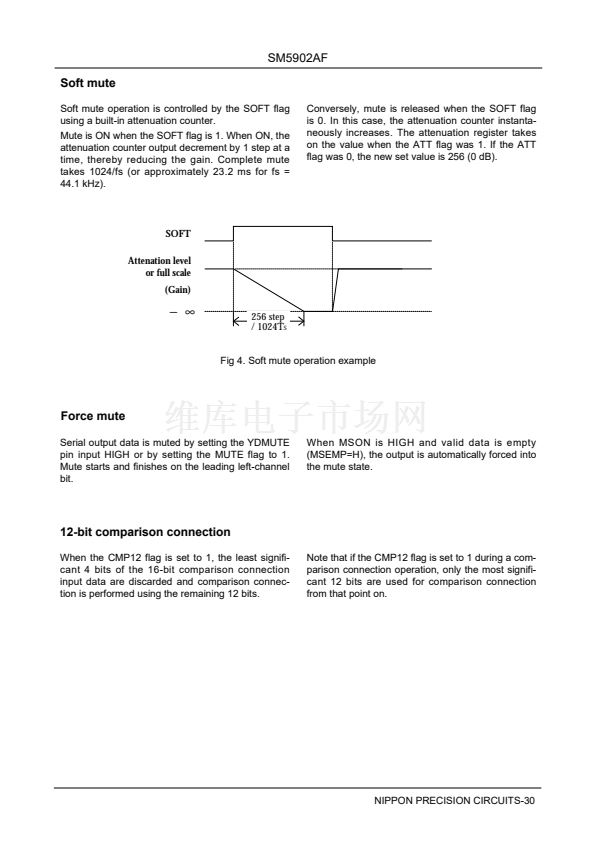

Soft mute function

Mute ON in 23 ms max.

Direct return after soft mute release

鈰?/div>

Forced mute

- Extension I/O

Microcontroller interface for external control

using 5 extension I/O pins

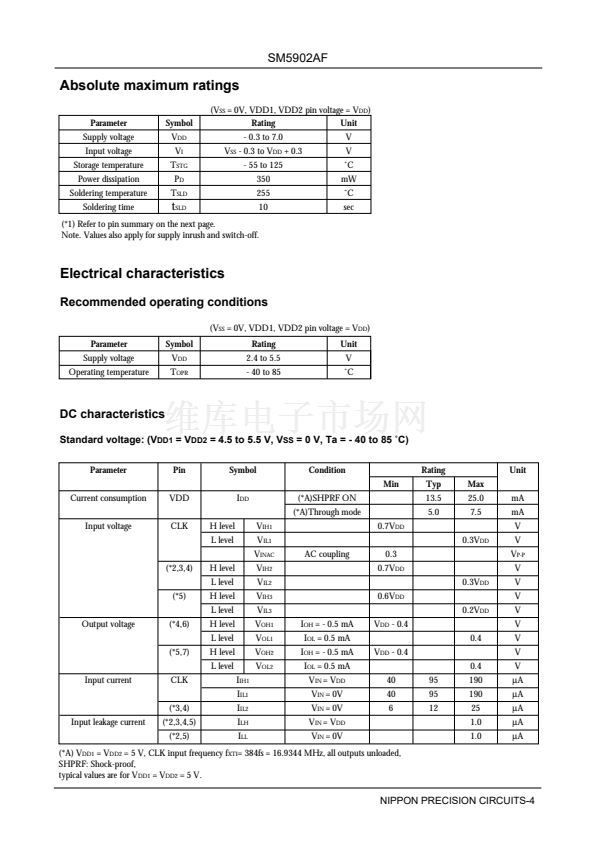

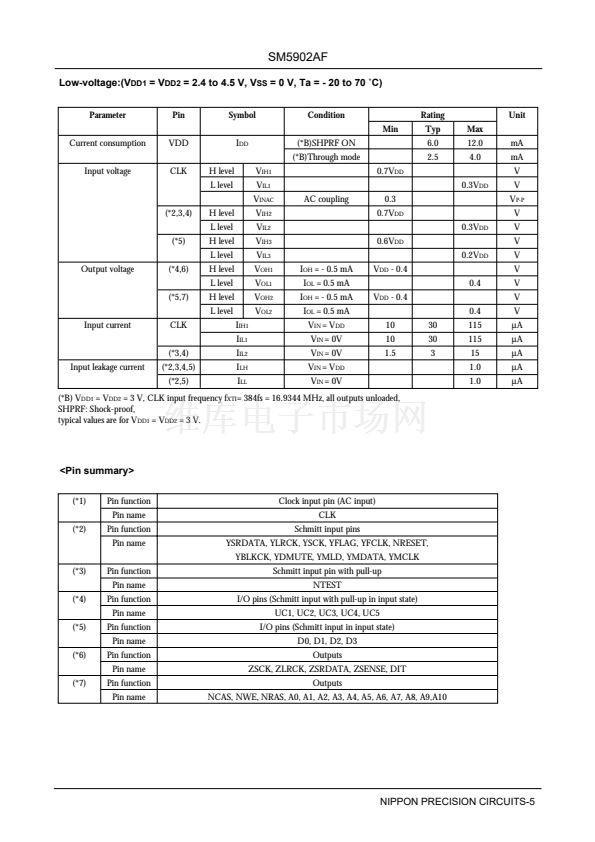

- +2.4 to +5.5 V wide operating voltage range

- Schmitt inputs

All input pins (including I/O pins) except CLK

(system clock)

- Reset signal noise elimination

Approximately 3.8

碌s

or longer (65 system

clock pulses) continuous LOW-level reset

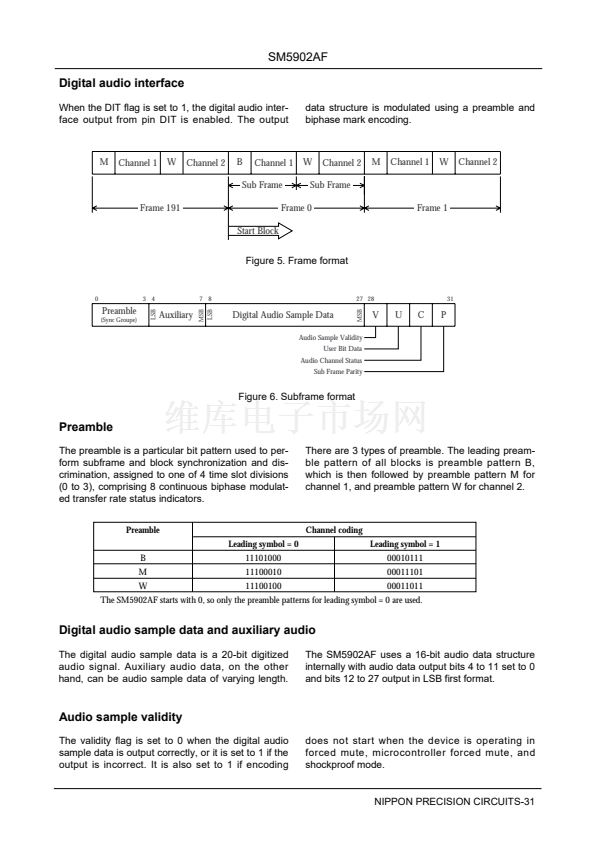

- Digital audio interface (DIT)

- 44-pin QFP package (0.8 mm pin pitch)

Ordering Information

SM5902AF

44pin QFP

NIPPON PRECISION CIRCUITS-1
