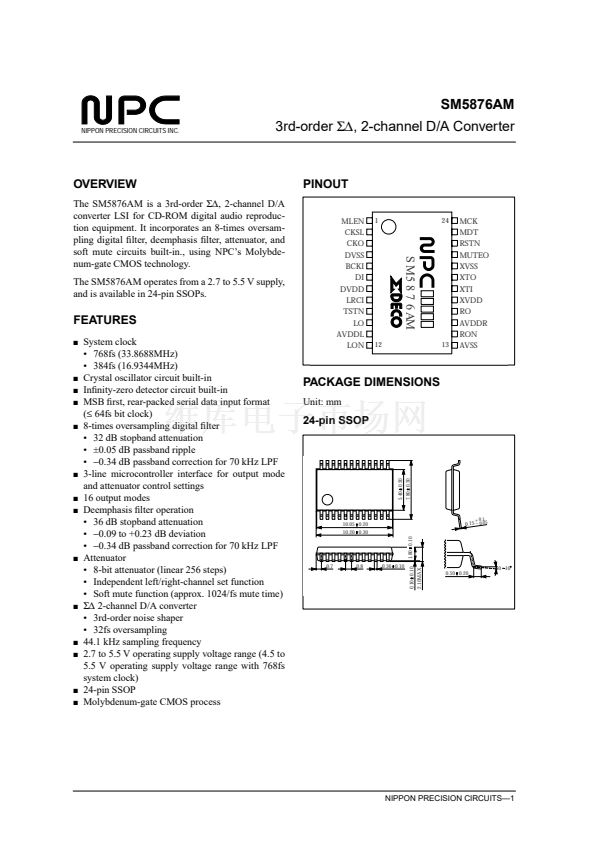

SM5876AM

NIPPON PRECISION CIRCUITS INC.

3rd-order

危鈭?/div>

, 2-channel D/A Converter

OVERVIEW

The SM5876AM is a 3rd-order

危鈭?/div>

, 2-channel D/A

converter LSI for CD-ROM digital audio reproduc-

tion equipment. It incorporates an 8-times oversam-

pling digital 鏗乴ter, deemphasis 鏗乴ter, attenuator, and

soft mute circuits built-in., using NPC鈥檚 Molybde-

num-gate CMOS technology.

The SM5876AM operates from a 2.7 to 5.5 V supply,

and is available in 24-pin SSOPs.

PINOUT

MLEN

CKSL

CKO

DVSS

BCKI

DVDD

LRCI

TSTN

AVDDL

LON

FEATURES

System clock

鈥?768fs (33.8688MHz)

鈥?384fs (16.9344MHz)

Crystal oscillator circuit built-in

In鏗乶ity-zero detector circuit built-in

MSB 鏗乺st, rear-packed serial data input format

(

鈮?/div>

64fs bit clock)

8-times oversampling digital 鏗乴ter

鈥?32 dB stopband attenuation

鈥?鹵0.05 dB passband ripple

鈥?/div>

鈭?/div>

0.34 dB passband correction for 70 kHz LPF

3-line microcontroller interface for output mode

and attenuator control settings

16 output modes

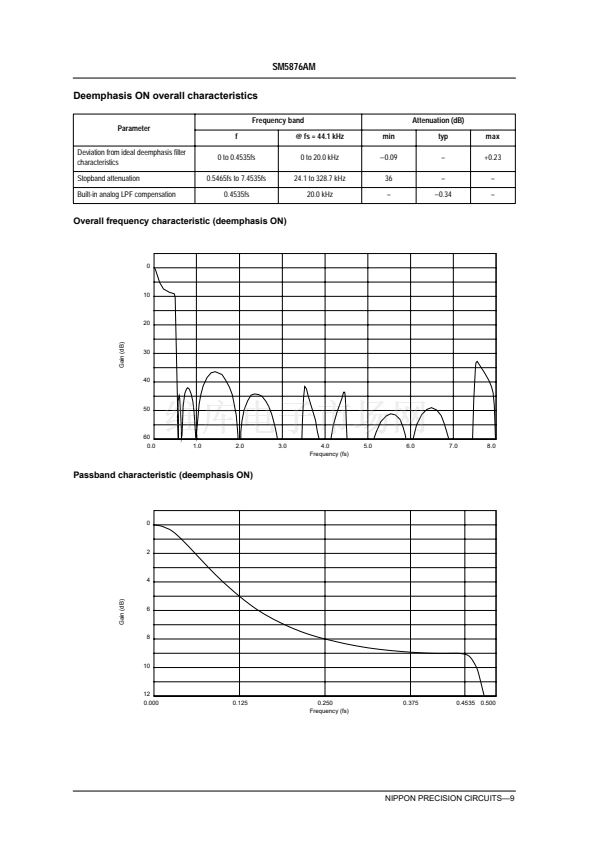

Deemphasis 鏗乴ter operation

鈥?36 dB stopband attenuation

鈥?/div>

鈭?/div>

0.09 to +0.23 dB deviation

鈥?/div>

鈭?/div>

0.34 dB passband correction for 70 kHz LPF

Attenuator

鈥?8-bit attenuator (linear 256 steps)

鈥?Independent left/right-channel set function

鈥?Soft mute function (approx. 1024/fs mute time)

危鈭?/div>

2-channel D/A converter

鈥?3rd-order noise shaper

鈥?32fs oversampling

44.1 kHz sampling frequency

2.7 to 5.5 V operating supply voltage range (4.5 to

5.5 V operating supply voltage range with 768fs

system clock)

24-pin SSOP

Molybdenum-gate CMOS process

MCK

MDT

RSTN

MUTEO

XVSS

XTO

XTI

XVDD

AVDDR

RON

AVSS

PACKAGE DIMENSIONS

Unit: mm

S M5 8 7 6 AM

24-pin SSOP

5.40 0.20

7.80 0.30

10.05 0.20

10.20 0.30

1.80 0.10

0.15

鈭?/div>

0.05

0.1

0.10 0.10

2.10MAX

0.7

0.8

0.36 0.10

0.50 0.20

0 10

NIPPON PRECISION CIRCUITS鈥?
