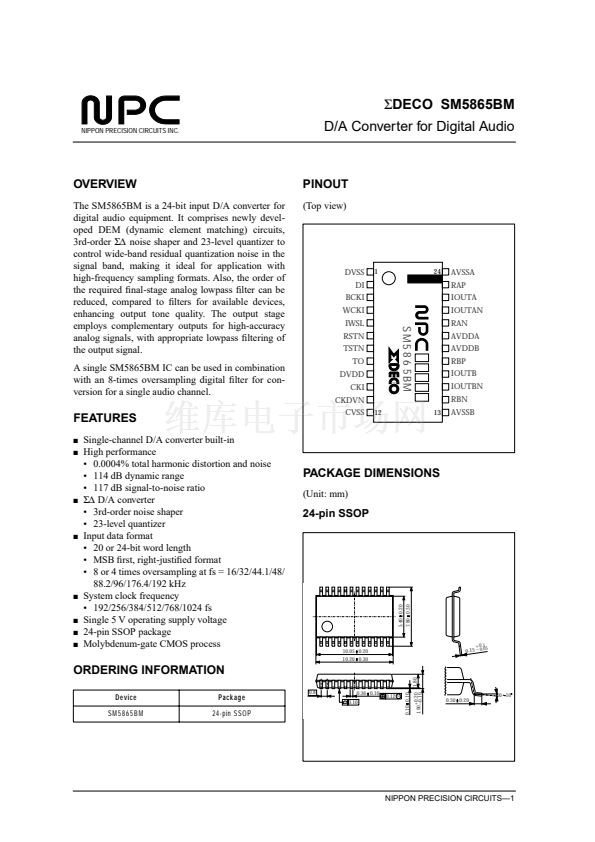

DECO SM5865BM

NIPPON PRECISION CIRCUITS INC.

D/A Converter for Digital Audio

OVERVIEW

The SM5865BM is a 24-bit input D/A converter for

digital audio equipment. It comprises newly devel-

oped DEM (dynamic element matching) circuits,

3rd-order

危鈭?/div>

noise shaper and 23-level quantizer to

control wide-band residual quantization noise in the

signal band, making it ideal for application with

high-frequency sampling formats. Also, the order of

the required 鏗乶al-stage analog lowpass 鏗乴ter can be

reduced, compared to 鏗乴ters for available devices,

enhancing output tone quality. The output stage

employs complementary outputs for high-accuracy

analog signals, with appropriate lowpass 鏗乴tering of

the output signal.

A single SM5865BM IC can be used in combination

with an 8-times oversampling digital 鏗乴ter for con-

version for a single audio channel.

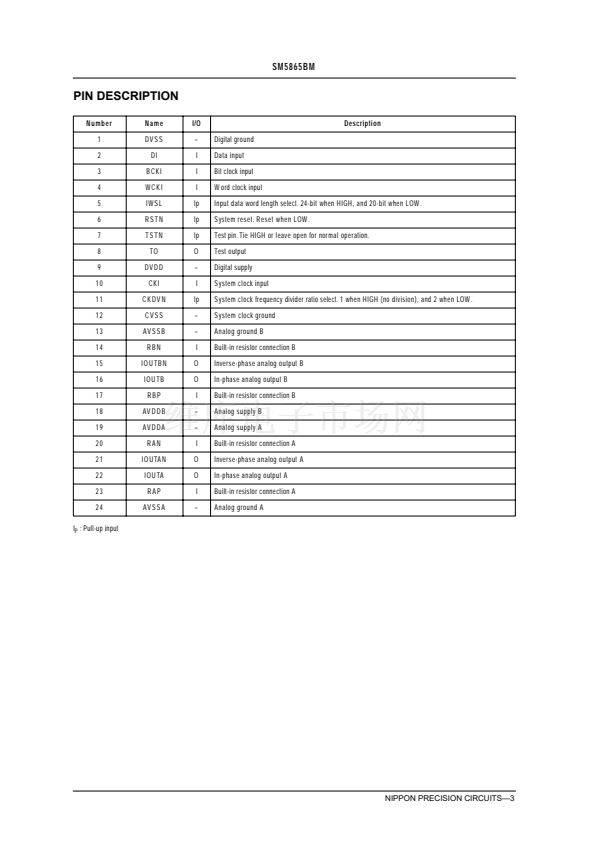

PINOUT

(Top view)

DVSS

BCKI

WCKI

IWSL

RSTN

TSTN

DVDD

CKI

CKDVN

CVSS

AVSSA

RAP

IOUTA

IOUTAN

RAN

AVDDA

AVDDB

RBP

IOUTB

IOUTBN

RBN

S M 5 8 6 5 BM

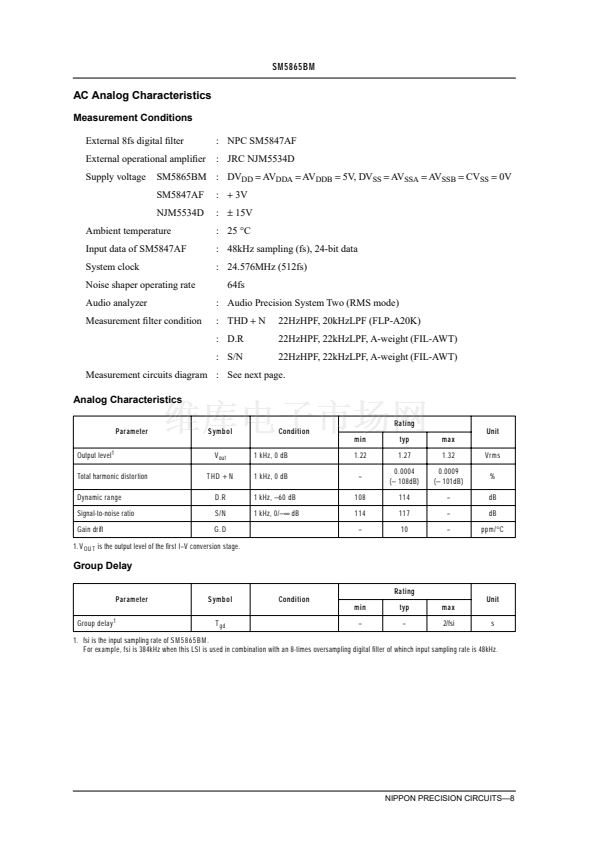

FEATURES

AVSSB

Single-channel D/A converter built-in

High performance

鈥?0.0004% total harmonic distortion and noise

鈥?114 dB dynamic range

鈥?117 dB signal-to-noise ratio

危鈭?/div>

D/A converter

鈥?3rd-order noise shaper

鈥?23-level quantizer

Input data format

鈥?20 or 24-bit word length

鈥?MSB 鏗乺st, right-justi鏗乪d format

鈥?8 or 4 times oversampling at fs = 16/32/44.1/48/

88.2/96/176.4/192 kHz

System clock frequency

鈥?192/256/384/512/768/1024 fs

Single 5 V operating supply voltage

24-pin SSOP package

Molybdenum-gate CMOS process

PACKAGE DIMENSIONS

(Unit: mm)

24-pin SSOP

5.40 0.20

7.80 0.30

10.05 0.20

10.20 0.30

0.15

鈭?/div>

0.05

0.1

ORDERING INFORMATION

0.10 0.10

+0.20

1.90

鈭?.10

D e vice

SM5865BM

P ackag e

24-pin SSOP

0.8

0.36 0.10

0.10

1.80

0.12

0.50 0.20

0 10

NIPPON PRECISION CIRCUITS鈥?
