SM5838AS Datasheet

  • SM5838AS

  • Nippon Precision Circuits Inc [5120 X 8-bit Synchronous FIF...

  • NPC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

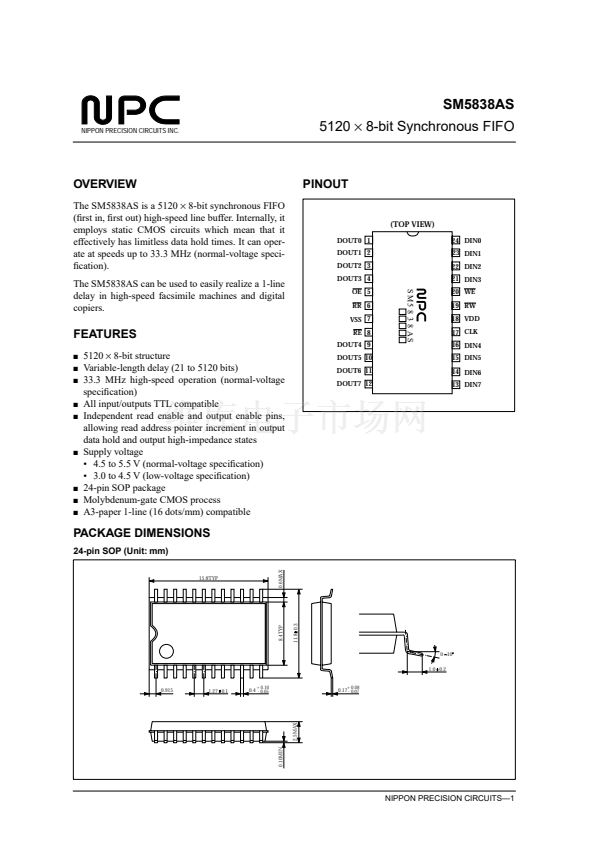

SM5838AS
NIPPON PRECISION CIRCUITS INC.
5120
脳
8-bit Synchronous FIFO
OVERVIEW
The SM5838AS is a 5120
脳
8-bit synchronous FIFO
(鏗乺st in, 鏗乺st out) high-speed line buffer. Internally, it
employs static CMOS circuits which mean that it
effectively has limitless data hold times. It can oper-
ate at speeds up to 33.3 MHz (normal-voltage speci-
鏗乧ation).
The SM5838AS can be used to easily realize a 1-line
delay in high-speed facsimile machines and digital
copiers.
PINOUT
(TOP VIEW)
DOUT0 1
24
DIN0
23
DIN1
22
DIN2
21
DIN3
DOUT1
2
DOUT2
3
DOUT3
4
S M5 8 3 8 AS
OE 5
RR 6
VSS 7
20 WE
19
RW
18 VDD
17
CLK
16
DIN4
15 DIN5
14
DIN6
13 DIN7
FEATURES
s
s
s
RE 8
s
s
s
s
s
s
5120
脳
8-bit structure
Variable-length delay (21 to 5120 bits)
33.3 MHz high-speed operation (normal-voltage
speci鏗乧ation)
All input/outputs TTL compatible
Independent read enable and output enable pins,
allowing read address pointer increment in output
data hold and output high-impedance states
Supply voltage
鈥?4.5 to 5.5 V (normal-voltage speci鏗乧ation)
鈥?3.0 to 4.5 V (low-voltage speci鏗乧ation)
24-pin SOP package
Molybdenum-gate CMOS process
A3-paper 1-line (16 dots/mm) compatible
DOUT4
9
DOUT5
10
DOUT6
11
DOUT7
12
PACKAGE DIMENSIONS
24-pin SOP (Unit: mm)
15.8TYP
0.6MAX
11.8 0.3
8.4TYP
0 10
1.0 0.2
+ 0.10
+ 0.08
0.915
1.27 0.1
0.4
- 0.05
0.17
- 0.07
0.10MIN
2.5MAX
NIPPON PRECISION CIRCUITS鈥?
