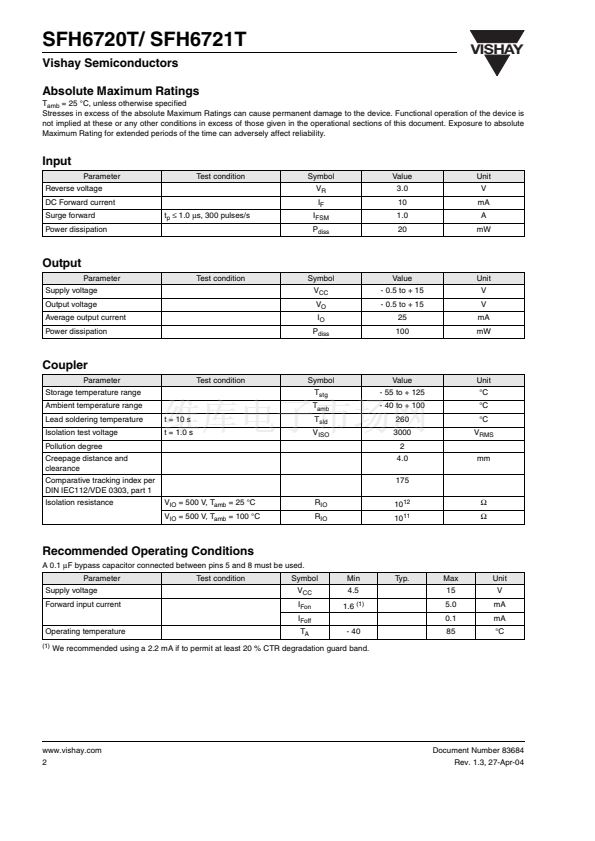

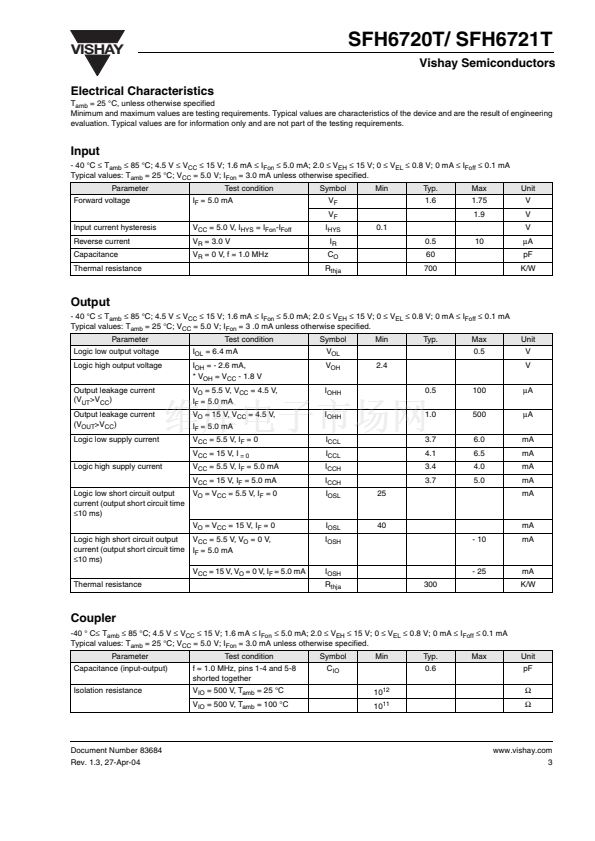

VISHAY

SFH6720T/ SFH6721T

Vishay Semiconductors

High Speed Optocoupler, 5 MBd, in SOIC-8 Package

Features

Data Rate 5.0 Mb/s (2.5 Mb/s over Temperature)

Buffer

Isolation Test Voltage, 3000 V

RMS

for 1.0 s

TTL, LSTTL and CMOS Compatible

Internal Shield for Very High Common Mode

Transient Immunity

鈥?Wide Supply Voltage Range (4.5 to 15 V)

鈥?Low Input Current (1.6 mA to 5.0 mA)

鈥?Specified from 0 擄C to 85 擄C

鈥?/div>

A 2

C 3

8 VCC

7 VO

6 NC

5 GND

i179074

Agency Approvals

鈥?UL - File No. E52744 System Code Y

鈥?DIN EN 60747-5-2(VDE0884)

DIN EN 60747-5-5 pending

Available with Option 1

transient immunity of 1000 V/碌s at V

= 50 V for

SFH6720T and 2500 V/碌s at V

= 400 V for

SFH6721T.

The SFH6720T and SFH6721T uses an industry

standard SOIC-8A package.

Applications

Industrial Control

Replace Pulse Transformers

Routine Logic Interfacing

Motion/Power Control

High Speed Line Receiver

Microprocessor System Interfaces

Computer Peripheral Interfaces

Order Information

Part

SFH6720T

SFH6721T

Remarks

| CM

| > 1000, @ | V

| = 50 V, SOIC-8

| CM

| > 2500, @ | V

| = 400 V, SOIC-8

For additional information on the available options refer to

Option Information.

Note Available only on tape and reel.

Description

The single channel 5.0 Mb/s SFH6720T and

SFH6721T high speed optocoupler consists of a

GaAlAs infrared emitting diode, optically coupled with

an integrated photo detector. The detector incorpo-

rates a Schmitt-Trigger stage for improved noise

immunity. A Faraday shield provides a common mode

Truth Table (Positive Logic)

Partnumber

SFH6720T

SFH6721T

IR Diode

off

Output

Document Number 83684

Rev. 1.3, 27-Apr-04

www.vishay.com

數據列表
SFH6720_21T
標準包裝
2,000
類別
隔離器
家庭
光隔離器 - 邏輯輸出
系列
-
電壓 - 隔離
4000Vrms
通道數
1，單向
電流 - 輸出 / 通道
25mA
數據速率
5Mbps
傳輸延遲高 - 低 @ 如果
-
電流 - DC 正向(If)
10mA
輸入類型
DC
輸出類型
推挽式/圖騰柱
安裝類型
表面貼裝
封裝/外殼
8-SOIC（0.154"，3.90mm 寬）
供應商設備封裝
8-SOIC
包裝
帶卷 (TR)
