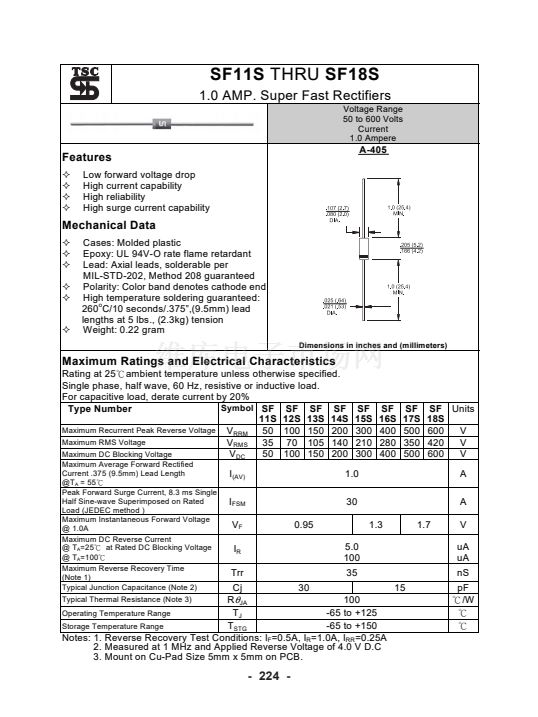

SF11S
THRU
SF18S
1.0 AMP. Super Fast Rectifiers
Voltage Range
50 to 600 Volts
Current
1.0 Ampere
Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
A-405
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-O rate flame retardant
Lead: Axial leads, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed:
260
o
C/10 seconds/.375鈥?(9.5mm) lead
lengths at 5 lbs., (2.3kg) tension
Weight: 0.22 gram
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25鈩僡mbient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
SF SF SF SF
Type Number
11S 12S 13S 14S
Maximum Recurrent Peak Reverse Voltage
V
RRM
50 100 150 200
Maximum RMS Voltage
V
RMS
35 70 105 140
Maximum DC Blocking Voltage
V
DC
50 100 150 200
Maximum Average Forward Rectified
Current .375 (9.5mm) Lead Length
@T
A
= 55鈩?/div>
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@ 1.0A
Maximum DC Reverse Current
@ T
A
=25鈩?at Rated DC Blocking Voltage
@ T
A
=100鈩?/div>
Maximum Reverse Recovery Time
(Note 1)
Typical Junction Capacitance (Note 2)
SF
15S
300
210
300
SF
16S
400
280
400
SF
17S
500
350
500
SF
Units
18S
600
V
420
V
600
V
A
A
I
(AV)
I
FSM
V
F
I
R
Trr
0.95
1.0
30
1.3
5.0
100
35
1.7
V
uA
uA
nS
pF
鈩?W
鈩?/div>
鈩?/div>
Cj
30
15
Typical Thermal Resistance (Note 3)
100
R
胃
JA
Operating Temperature Range
T
J
-65 to +125
Storage Temperature Range
T
STG
-65 to +150
Notes: 1. Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. Measured at 1 MHz and Applied Reverse Voltage of 4.0 V D.C
3. Mount on Cu-Pad Size 5mm x 5mm on PCB.
