SEAWARD

ELECTRONICS

5V Positive Voltage

Regulator (Preliminary)

Features

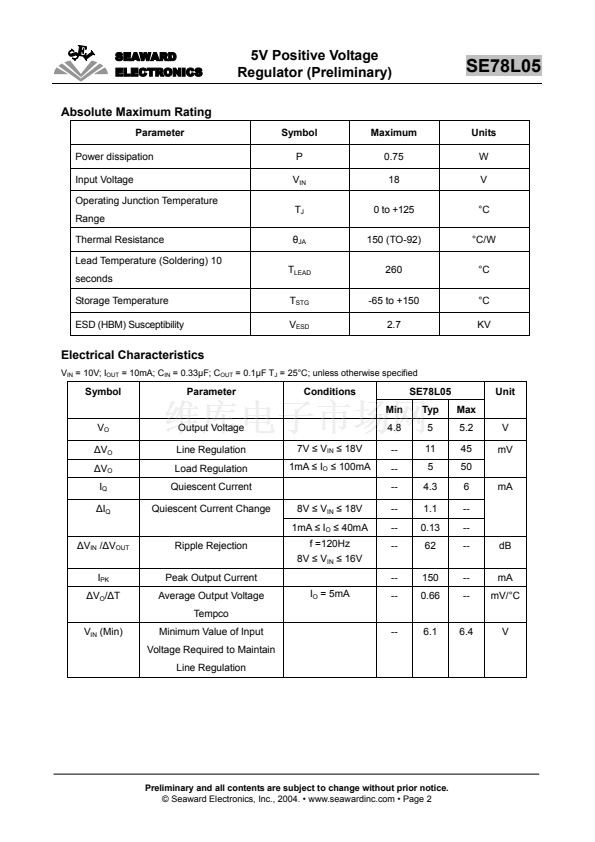

Output voltage of 5.0V (Typ.)

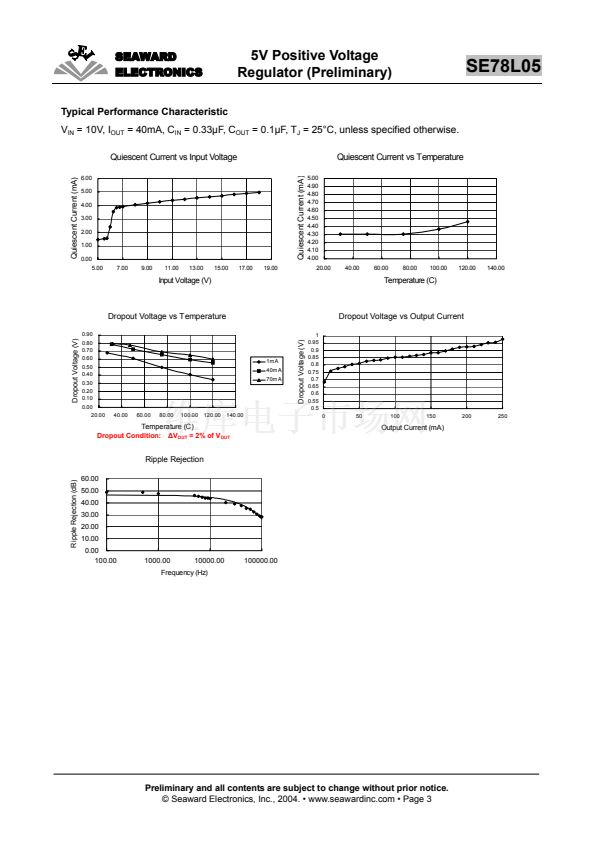

SE78L05

Description

The SE78L05 is three-terminal positive regulator.

The SE78L05 can be used as Zener diode/resistor

combination replacement. It offers an effective

output impedance improvement of two orders of

magnitude, and lower quiescent current. This fixed

voltage regulators can provide local or on-card

regulation for elimination of noise and distribution

problems associated with single point regulation. It

is an excellent solution to the stereo power supply

on PC main board.

Output current up to 150mA (Typ.)

Minimum external components.

Output voltage tolerances of 鹵4%

ESD rating is 2.7KV (Per MIL-STD-883D).

Application

Sound card on PC main board.

DVD-ROM, CD-ROM.

Networking Equipments.

Application Circuit

Fixed Output Regulator

INPUT

C1

0.33uF

Pin Configuration

SE78L05

GND

OUTPUT

C2

0.1uF

Preliminary and all contents are subject to change without prior notice.

漏 Seaward Electronics, Inc., 2004. 鈥?www.seawardinc.com 鈥?Page 1
