Product Brief
SDA
9388X
Single-Chip Picture in Picture IC

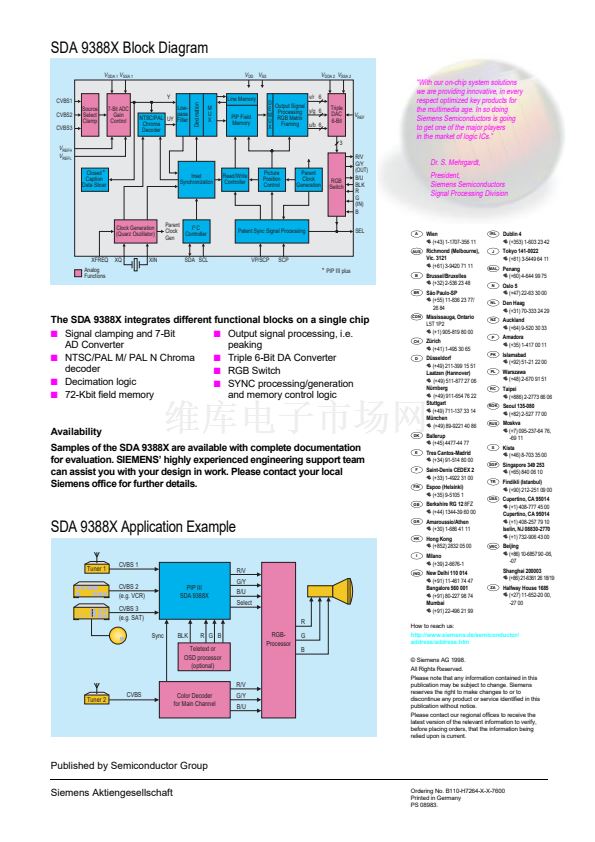

The SDA 9388X integrates
analog (clamping, ADC, DAC,
RGB switch) and digital signal
processing (decimation, memory,
output signal processing etc.) on
a single silicon.
SDA
Potential Application
The SDA 9388X is a cost-effective
single-chip Picture in Picture IC that
requires only a small amount of
external components. It is suitable for
the following applications:
s
TVs for NTSC, PAL M and
PAL N markets
s
Display and surveillance
equipment
Features
s
Picture reduction to 1/9, 1/16
s
PIP frame control including
s
s
s
s
and 1/36 of original size
s
Freely programmable positioning
of PIP on the main picture
as well as POP positioning
s
s
s
color, shape and width
Format matching of PIP to
16:9 screen
Digital signal processing for
picture quality optimization
Three CVBS inputs;
analog YUV or RGB output
Integrated high speed video
switch for inserting an external
RGB source onto the screen
(i.e. OSD)
I
2
C-Bus control
0.5
碌m
CMOS technology
P-DSO-28 package
Documentation and
Support Package
s
Data sheet
s
Technical articles
s
PIP module and interface board
for evaluation
s
SIMON Software for Windows
based PC to control evaluation
boards via
I
2
C Bus
s
SIMON interface module
s
Auto demo package for
demonstration
http://www.siemens.de/semiconductor/
