SD1898 Datasheet

  • SD1898

  • RF & MICROWAVE TRANSISTORS 1.6 GHz SATCOM APPLICATIONS

  • 4頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

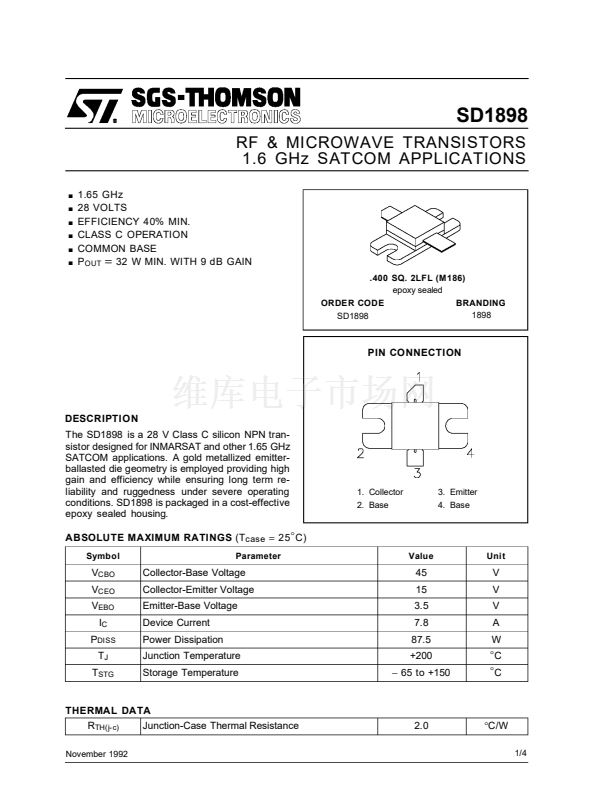

SD1898
RF & MICROWAVE TRANSISTORS
1.6 GHz SATCOM APPLICATIONS
.
.
.
.
.
.
1.65 GHz
28 VOLTS
EFFICIENCY 40% MIN.
CLASS C OPERATION
COMMON BASE
P
OUT
=
32 W MIN. WITH 9 dB GAIN
.400 SQ. 2LFL (M186)
epoxy sealed
ORDER CODE
SD1898
BRANDING
1898
PIN CONNECTION
DESCRIPTION
The SD1898 is a 28 V Class C silicon NPN tran-
sistor designed for INMARSAT and other 1.65 GHz
SATCOM applications. A gold metallized emitter-
ballasted die geometry is employed providing high
gain and efficiency while ensuring long term re-
liability and ruggedness under severe operating
conditions. SD1898 is packaged in a cost-effective
epoxy sealed housing.
ABSOLUTE MAXIMUM RATINGS
(T
case
=
25
擄
C)
Symbol
Parameter
Value
Unit
1. Collector
2. Base
3. Emitter
4. Base
V
CBO
V
CEO
V
EBO
I
C
P
DISS
T
J
T
STG
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Device Current
Power Dissipation
Junction Temperature
Storage Temperature
45
15
3.5
7.8
87.5
+200
鈭?/div>
65 to +150
V
V
V
A
W
擄
C
擄
C
THERMAL DATA
R
TH(j-c)
November 1992
Junction-Case Thermal Resistance
2.0
擄C/W
1/4
