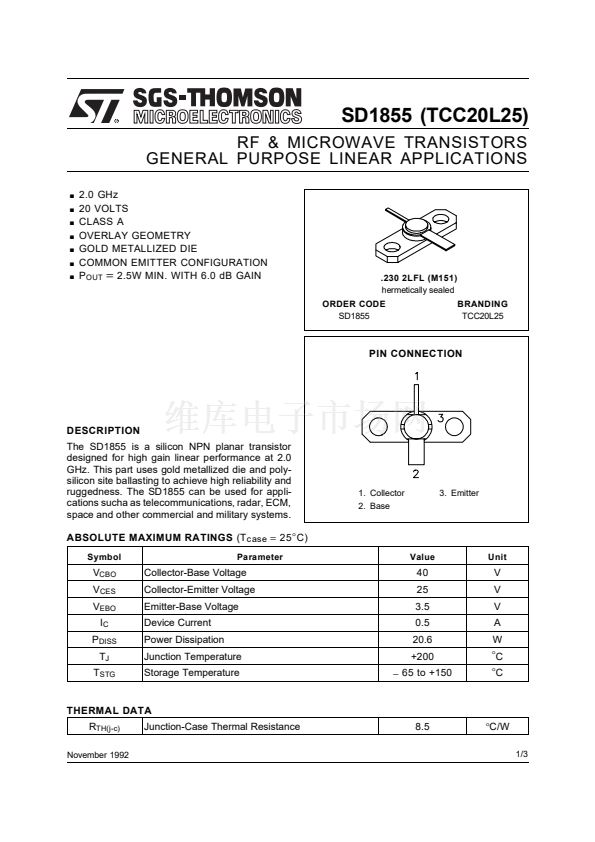

SD1855 (TCC20L25)
RF & MICROWAVE TRANSISTORS
GENERAL PURPOSE LINEAR APPLICATIONS
.
.
.
.
.
.
.
2.0 GHz
20 VOLTS
CLASS A
OVERLAY GEOMETRY
GOLD METALLIZED DIE
COMMON EMITTER CONFIGURATION
P
OUT
=
2.5W MIN. WITH 6.0 dB GAIN
.230 2LFL (M151)
hermetically sealed
ORDER CODE
SD1855
BRANDING
TCC20L25
PIN CONNECTION
DESCRIPTION
The SD1855 is a silicon NPN planar transistor
designed for high gain linear performance at 2.0
GHz. This part uses gold metallized die and poly-
silicon site ballasting to achieve high reliability and
ruggedness. The SD1855 can be used for appli-
cations sucha as telecommunications, radar, ECM,
space and other commercial and military systems.
ABSOLUTE MAXIMUM RATINGS
(T
case
=
25
擄
C)
Symbol
Parameter
Value
Unit
1. Collector
2. Base
3. Emitter
V
CBO
V
CES
V
EBO
I
C
P
DISS
T
J
T
STG
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Device Current
Power Dissipation
Junction Temperature
Storage Temperature
40
25
3.5
0.5
20.6
+200
鈭?/div>
65 to +150
V
V
V
A
W
擄
C
擄
C
THERMAL DATA
R
TH(j-c)
November 1992
Junction-Case Thermal Resistance
8.5
擄C/W

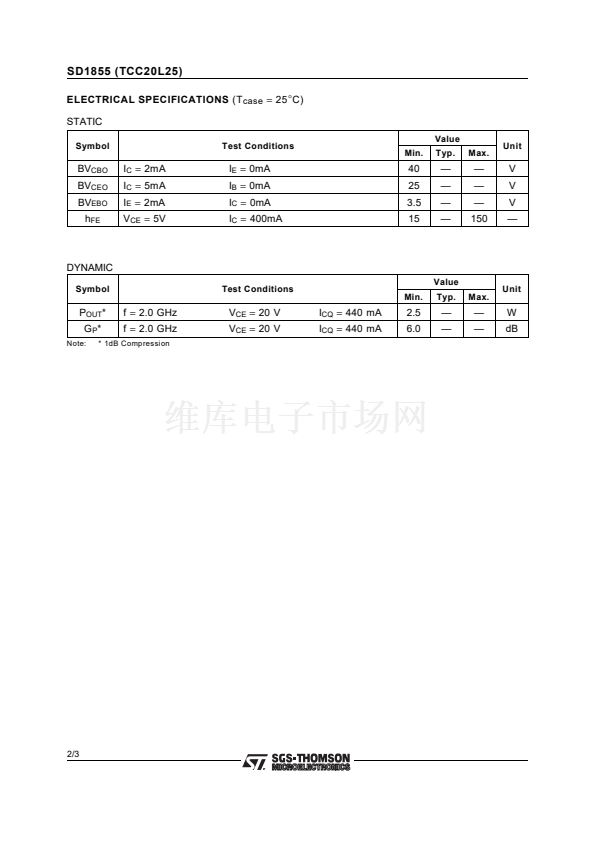

1/3
