SD1732 Datasheet

  • SD1732

  • RF & MICROWAVE TRANSISTORS TV LINEAR APPLICATIONS

  • 6頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

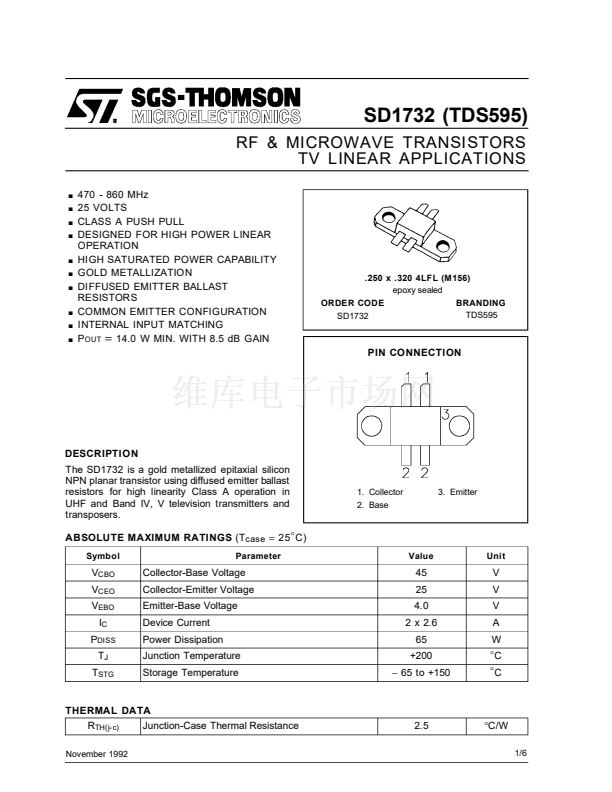

SD1732 (TDS595)
RF & MICROWAVE TRANSISTORS
TV LINEAR APPLICATIONS
.
.
.
.
.
.
.
.
.
.
470 - 860 MHz
25 VOLTS
CLASS A PUSH PULL
DESIGNED FOR HIGH POWER LINEAR
OPERATION
HIGH SATURATED POWER CAPABILITY
GOLD METALLIZATION
DIFFUSED EMITTER BALLAST
RESISTORS
COMMON EMITTER CONFIGURATION
INTERNAL INPUT MATCHING
P
OUT
=
14.0 W MIN. WITH 8.5 dB GAIN
.250 x .320 4LFL (M156)
epoxy sealed
ORDER CODE
SD1732
BRANDING
TDS595
PIN CONNECTION
DESCRIPTION
The SD1732 is a gold metallized epitaxial silicon
NPN planar transistor using diffused emitter ballast
resistors for high linearity Class A operation in
UHF and Band IV, V television transmitters and
transposers.
ABSOLUTE MAXIMUM RATINGS
(T
case
=
25
擄
C)
Symbol
Parameter
Value
Unit
1. Collector
2. Base
3. Emitter
V
CBO
V
CEO
V
EBO
I
C
P
DISS
T
J
T
STG
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Device Current
Power Dissipation
Junction Temperature
Storage Temperature
45
25
4.0
2 x 2.6
65
+200
鈭?/div>
65 to +150
V
V
V
A
W
擄
C
擄
C
THERMAL DATA
R
TH(j-c)
November 1992
Junction-Case Thermal Resistance
2.5
擄C/W
1/6

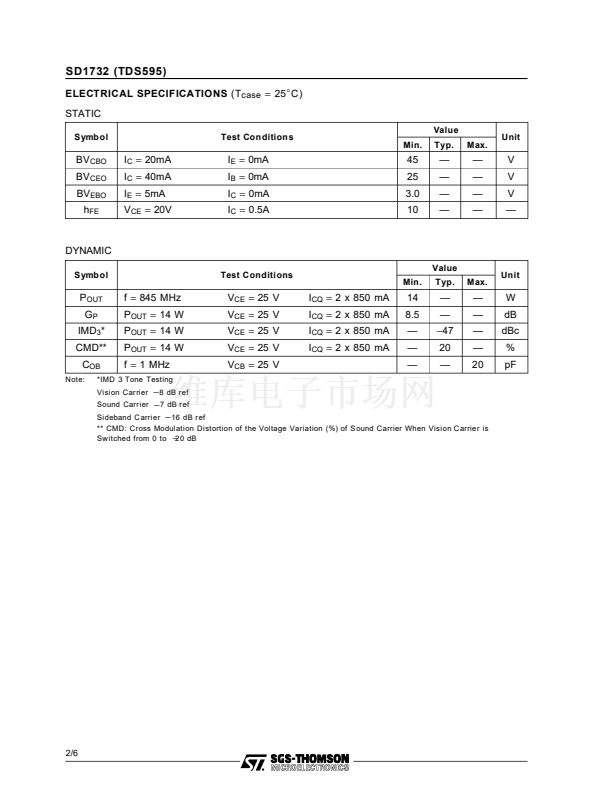

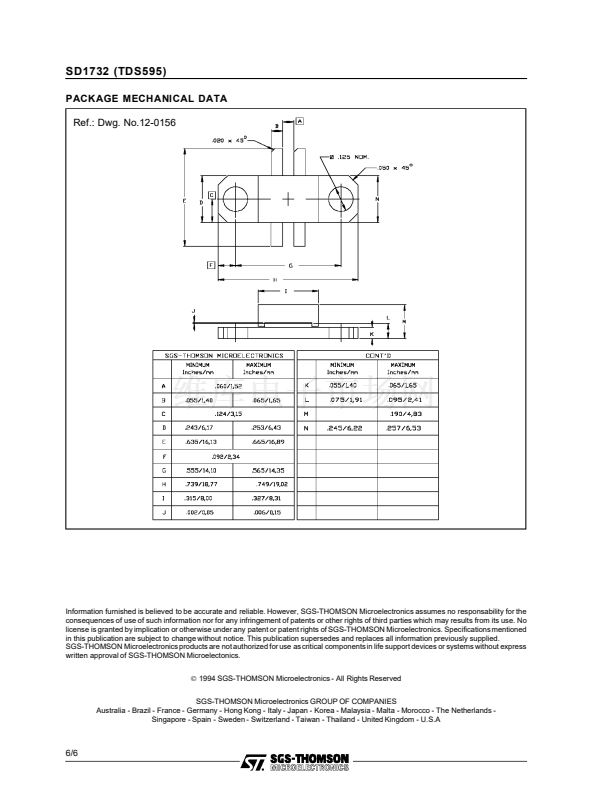

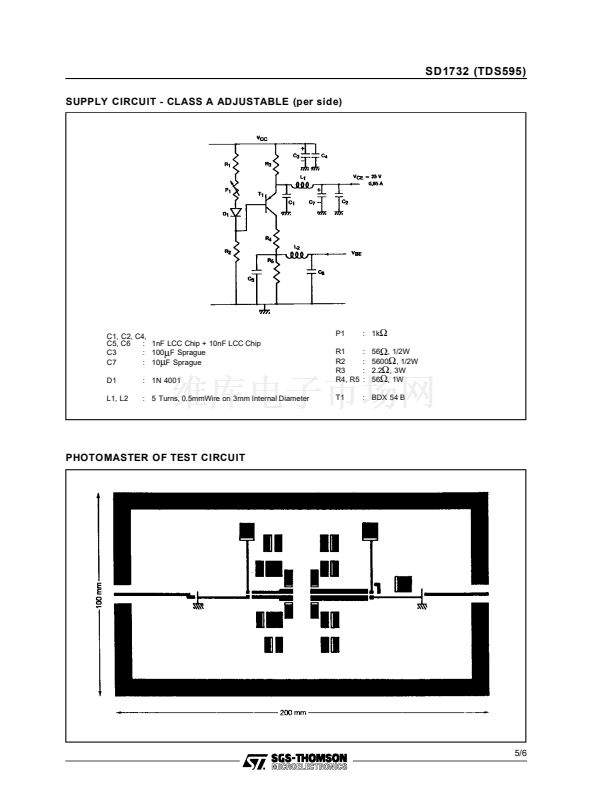

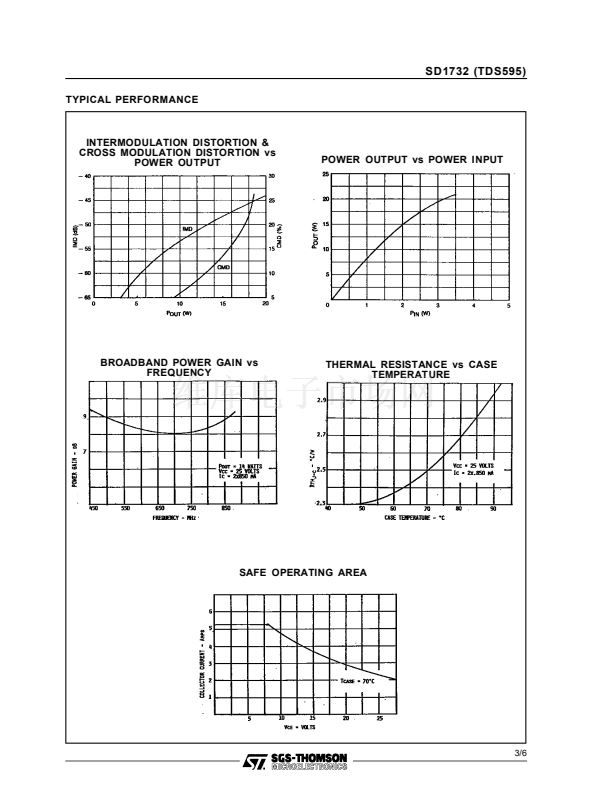

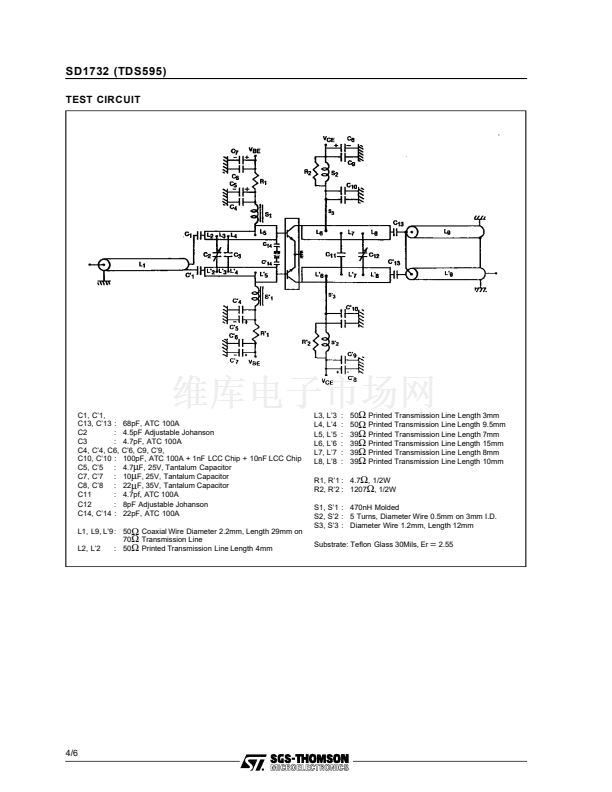

SD1732 產品屬性

  • STMicroelectronics

  • 射頻雙極電源晶體管

  • Single

  • 860 MHz

  • 25 V

  • 4 V

  • 5.2 A

  • 65 W

  • M156

  • Bulk

  • 10

  • + 150 C

  • SMD/SMT

  • 25

  • NPN
