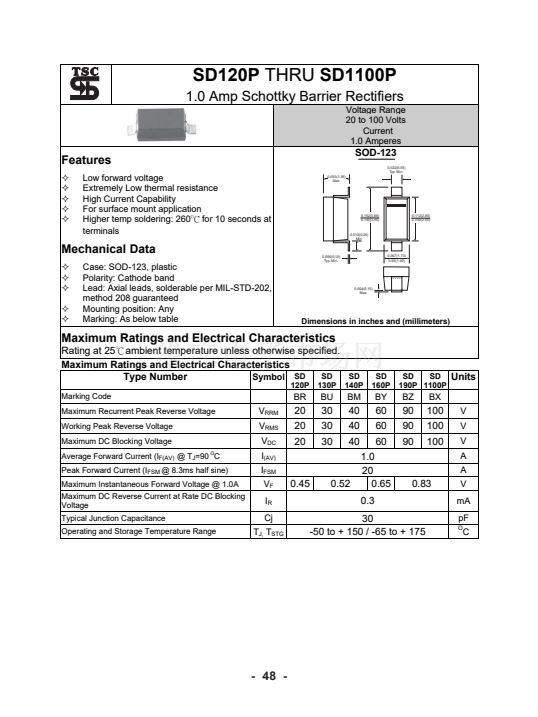

SD120P
THRU
SD1100P
1.0 Amp Schottky Barrier Rectifiers
Voltage Range
20 to 100 Volts
Current
1.0 Amperes
Features
Low forward voltage
Extremely Low thermal resistance
High Current Capability
For surface mount application
O
Higher temp soldering: 260
C
for 10 seconds at
terminals
0.053(1.35)
Max.
SOD-123
0.022(0.55)
Typ. Min.
0.152(3.85)
0.140(3.55)
0.112(2.85)
0.100(2.55)
0.010(0.25)
Min.
Mechanical Data
Case: SOD-123, plastic
Polarity: Cathode band
Lead: Axial leads, solderable per MIL-STD-202,
method 208 guaranteed
Mounting position: Any
Marking: As below table
0.006(0.15)
Typ. Min.
0.067(1.70)
0.55(1.40)
0.004(0.10)
Max.
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25鈩僡mbient temperature unless otherwise specified.
Maximum Ratings and Electrical Characteristics
SD
Symbol
SD
Type Number
120P
130P
Marking Code
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Average Forward Current (I
F(AV)
@ T
J
=90
O
C
Peak Forward Current (I
FSM
@ 8.3ms half sine)
Maximum Instantaneous Forward Voltage @ 1.0A
Maximum DC Reverse Current at Rate DC Blocking
Voltage
Typical Junction Capacitance
Operating and Storage Temperature Range
SD
140P
SD
160P
SD
SD
190P 1100P
Units
V
V
V
A
A
BR
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
Cj
T
J,
T
STG
BU
BM
BY
BZ
BX
20
20
20
30
30
30
40
40
40
60
60
60
1.0
20
0.65
0.3
90
90
90
100
100
100
0.45
0.52
0.83
V
mA
pF
O
30
-50 to + 150 / -65 to + 175
C
- 48 -
