SD1474 Datasheet

  • SD1474

  • Microsemi Corporation [RF & MICROWAVE TRANSISTORS]

  • 107.30KB

  • MICROSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

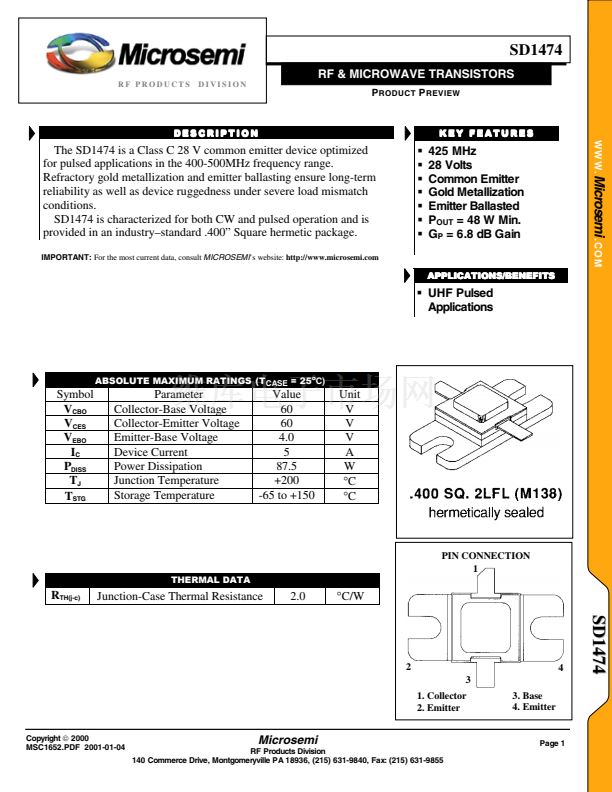

SD1474
RF & MICROWAVE TRANSISTORS
RF PRODUCTS
DIVISION
P
RODUCT
P
REVIEW
DESCRIPTION
KEY FEATURES
W W W .
Microsemi
.COM
The SD1474 is a Class C 28 V common emitter device optimized
for pulsed applications in the 400-500MHz frequency range.
Refractory gold metallization and emitter ballasting ensure long-term
reliability as well as device ruggedness under severe load mismatch
conditions.
SD1474 is characterized for both CW and pulsed operation and is
provided in an industry鈥搒tandard .400鈥?Square hermetic package.
IMPORTANT:
For the most current data, consult
MICROSEMI鈥檚
website:
http://www.microsemi.com
425 MHz
28 Volts
Common Emitter
Gold Metallization
Emitter Ballasted
P
OUT
= 48 W Min.
G
P
= 6.8 dB Gain
APPLICATIONS/BENEFITS
APPLICATIONS/BENEFITS
UHF Pulsed
Applications
ABSOLUTE MAXIMUM RATINGS (T
CASE
= 25
擄
C)
Symbol
V
CBO
V
CES
V
EBO
I
C
P
DISS
T
J
T
STG
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Device Current
Power Dissipation
Junction Temperature
Storage Temperature
Value
60
60
4.0
5
87.5
+200
-65 to +150
Unit
V
V
V
A
W
擄C
擄C
THERMAL DATA
PIN CONNECTION
1
R
TH(j-c)
Junction-Case Thermal Resistance
2.0
擄C/W
SD1474
SD1474
2
3
1. Collector
2. Emitter
Copyright
錚?/div>
2000
MSC1652.PDF 2001-01-04
4
3. Base
4. Emitter
Microsemi
RF Products Division
140 Commerce Drive, Montgomeryville PA 18936, (215) 631-9840, Fax: (215) 631-9855
Page 1
