SCAN15MB200 Dual 1.5 Gbps 2:1/1:2 LVDS Mux/Buffer with Pre-Emphasis and IEEE 1149.6
May 2006
SCAN15MB200
Dual 1.5 Gbps 2:1/1:2 LVDS Mux/Buffer with
Pre-Emphasis and IEEE 1149.6
General Description
The SCAN15MB200 is a dual-port 2 to 1 multiplexer and 1 to
2 repeater/buffer. High-speed data paths and flow-through
pinout minimize internal device jitter and simplify board lay-
out, while pre-emphasis overcomes ISI jitter effects from
lossy backplanes and cables. The differential inputs and
outputs interface to LVDS or Bus LVDS signals such as
those on National鈥檚 10-, 16-, and 18- bit Bus LVDS SerDes,
or to CML or LVPECL signals.
Integrated IEEE 1149.1 (JTAG) and 1149.6 circuitry supports
testability of both single-ended LVTTL/CMOS and high-
speed differential PCB interconnects. The 3.3V supply,
CMOS process, and robust I/O ensure high performance at
low power over the entire industrial -40 to +85藲C temperature
range.
Features
n
1.5 Gbps data rate per channel
n
Configurable off/on pre-emphasis drives lossy
backplanes and cables
n
LVDS/BLVDS/CML/LVPECL compatible inputs, LVDS
compatible outputs
n
Low output skew and jitter
n
On-chip 100鈩?input and output termination
n
IEEE 1149.1 and 1149.6 compliant
n
15 kV ESD protection on LVDS inputs/outputs
n
Hot plug Protection
n
Single 3.3V supply
n
Industrial -40 to +85藲C temperature range
n
48-pin LLP Package

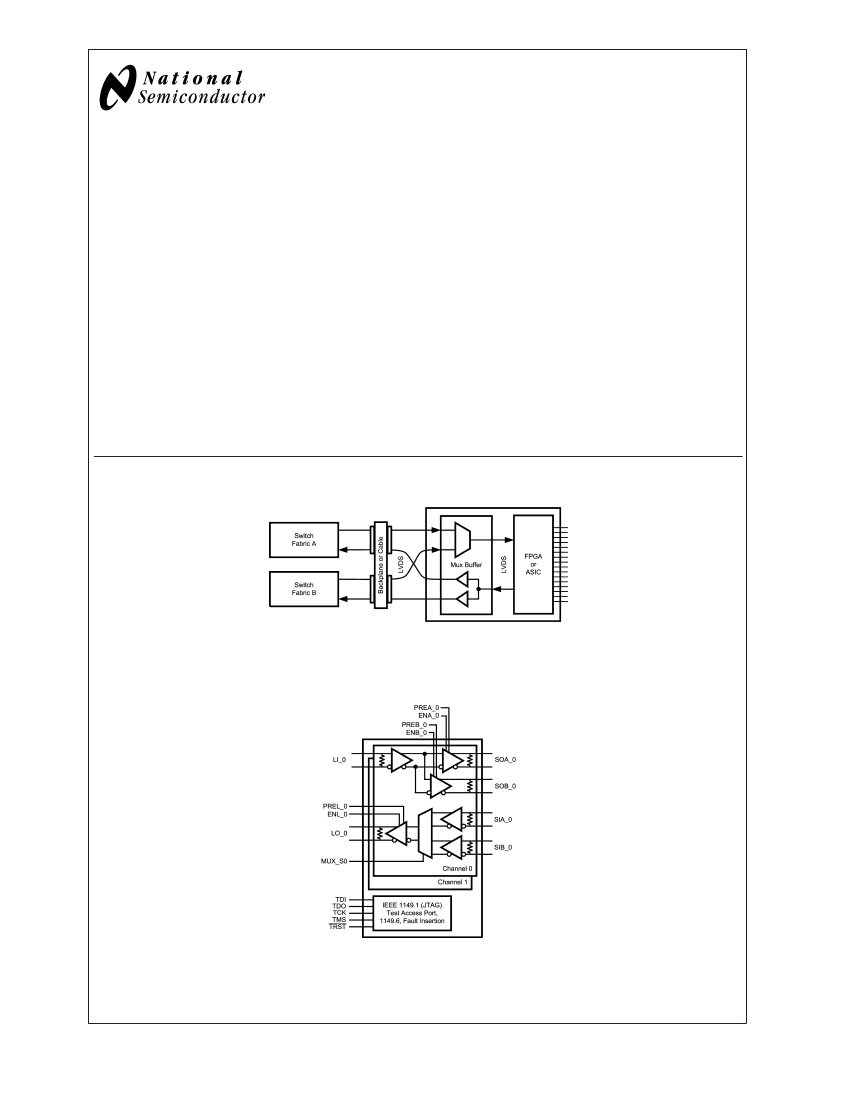

Typical Application
20132810
Block Diagram
20132801
FIGURE 1. SCAN15MB200 Block Diagram
漏 2006 National Semiconductor Corporation
DS201328
www.national.com
