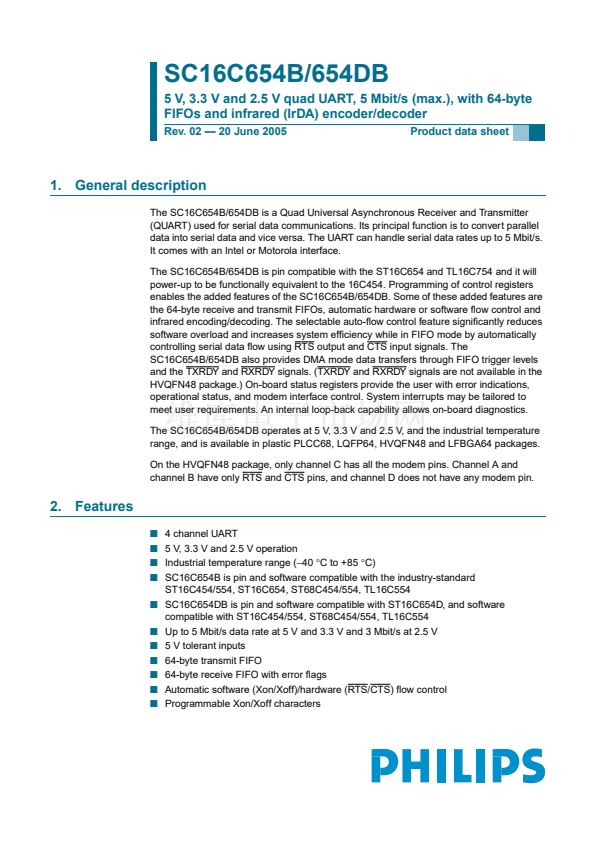

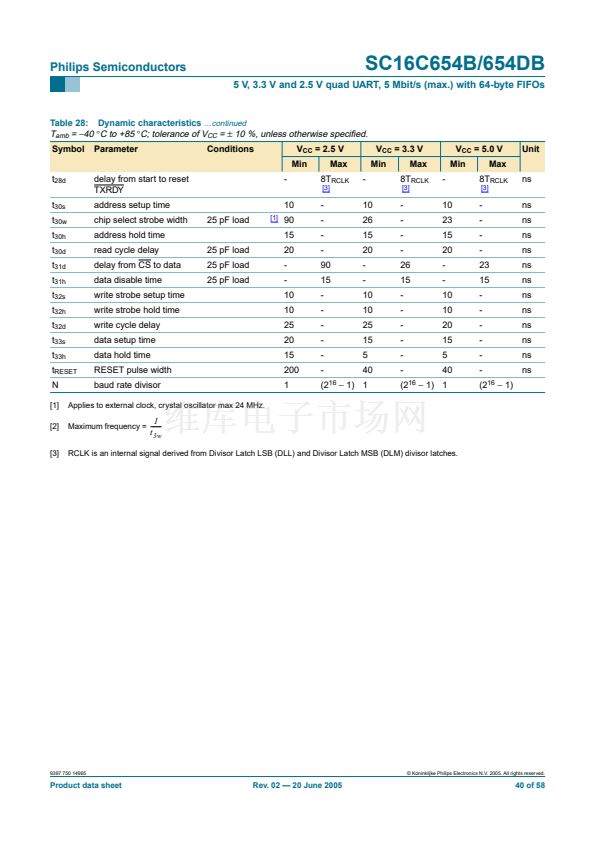

SC16C654B/654DB
5 V, 3.3 V and 2.5 V quad UART, 5 Mbit/s (max.), with 64-byte
FIFOs and infrared (IrDA) encoder/decoder
Rev. 02 鈥?20 June 2005
Product data sheet
1. General description

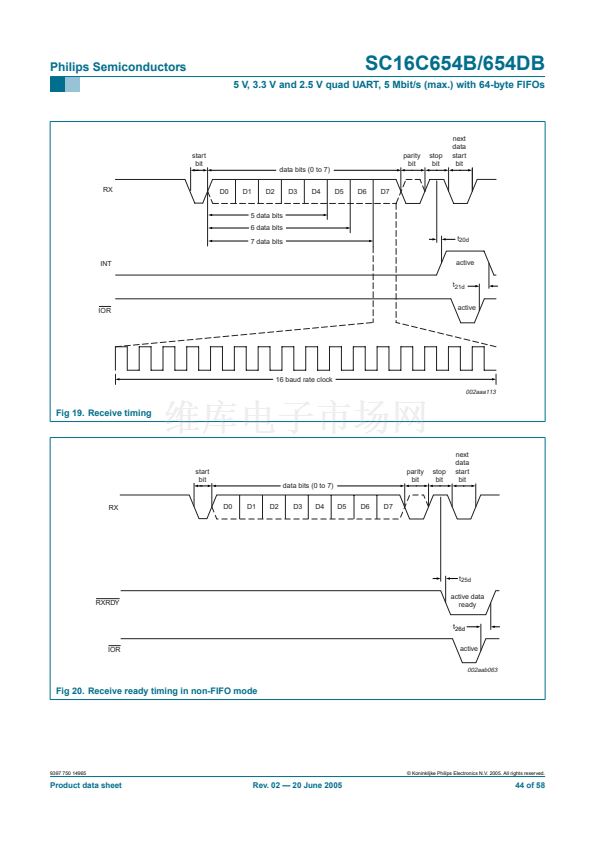

The SC16C654B/654DB is a Quad Universal Asynchronous Receiver and Transmitter
(QUART) used for serial data communications. Its principal function is to convert parallel

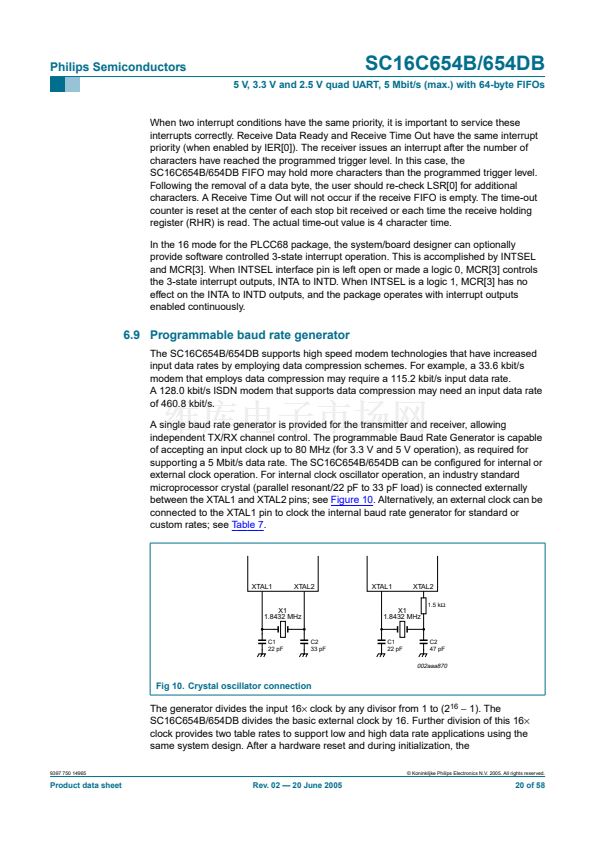

data into serial data and vice versa. The UART can handle serial data rates up to 5 Mbit/s.
It comes with an Intel or Motorola interface.
The SC16C654B/654DB is pin compatible with the ST16C654 and TL16C754 and it will
power-up to be functionally equivalent to the 16C454. Programming of control registers
enables the added features of the SC16C654B/654DB. Some of these added features are
the 64-byte receive and transmit FIFOs, automatic hardware or software 鏗俹w control and

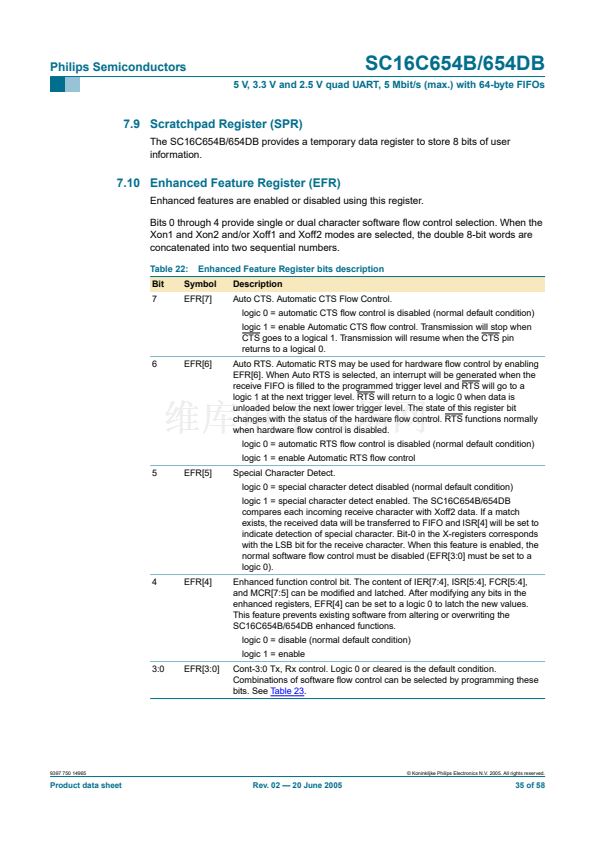

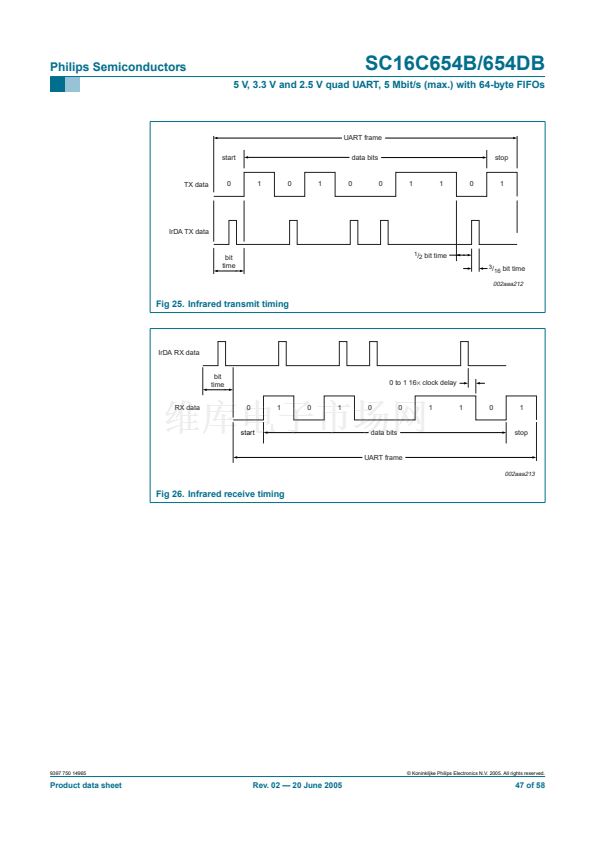

infrared encoding/decoding. The selectable auto-鏗俹w control feature signi鏗乧antly reduces
software overload and increases system ef鏗乧iency while in FIFO mode by automatically

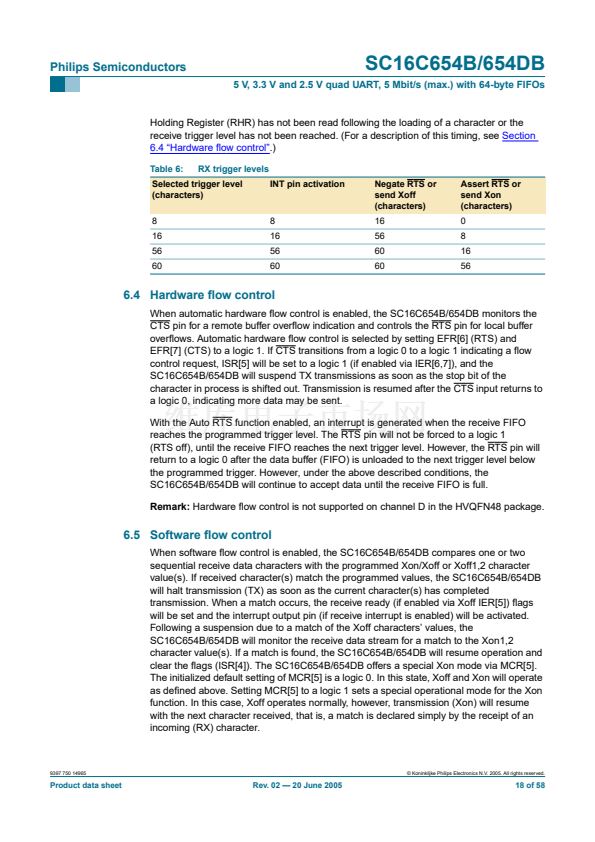

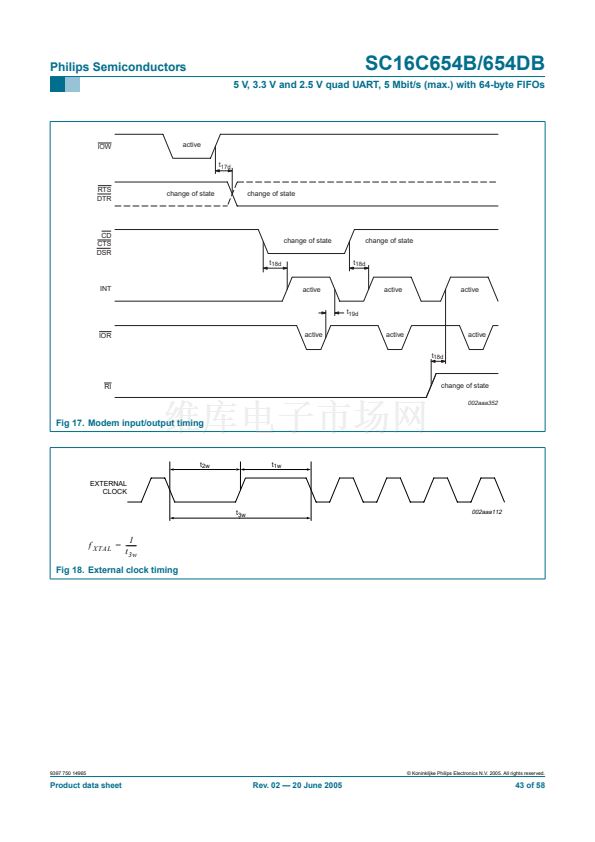

controlling serial data 鏗俹w using RTS output and CTS input signals. The

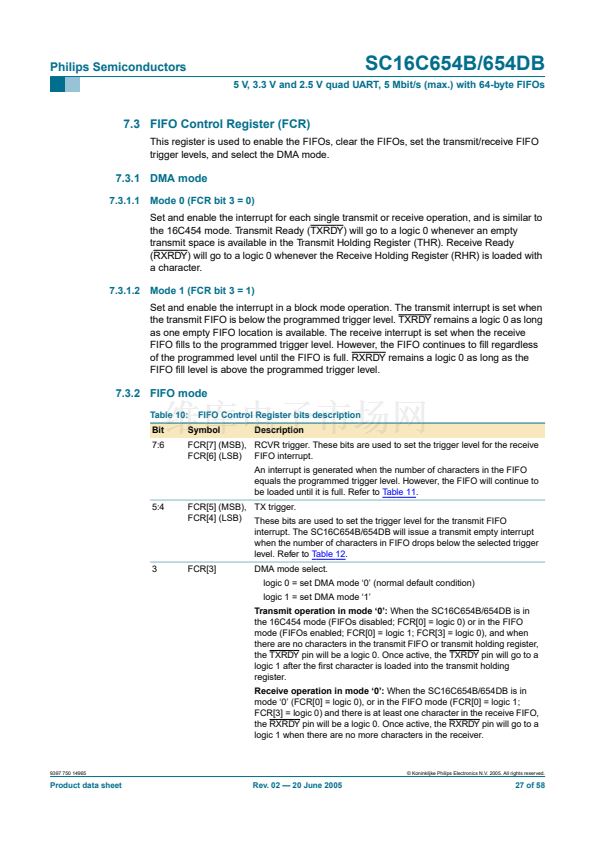

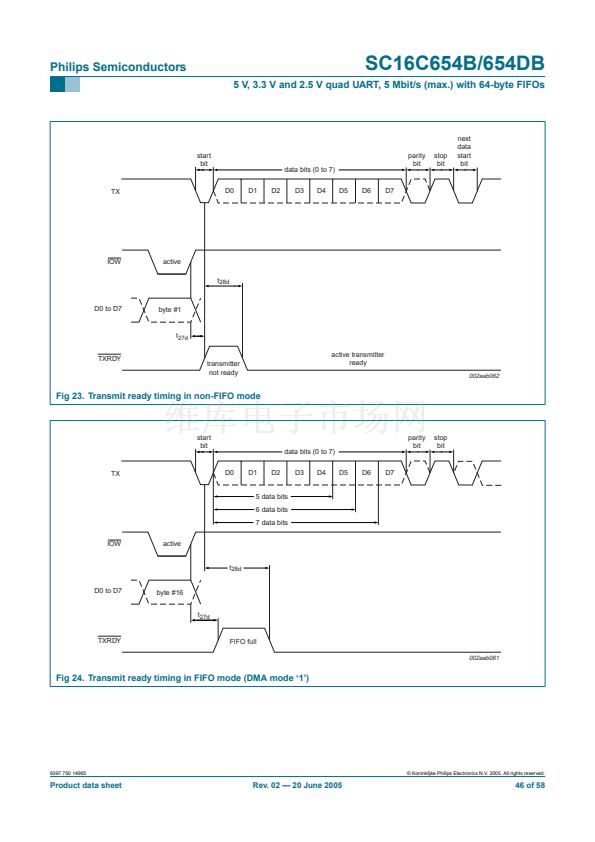

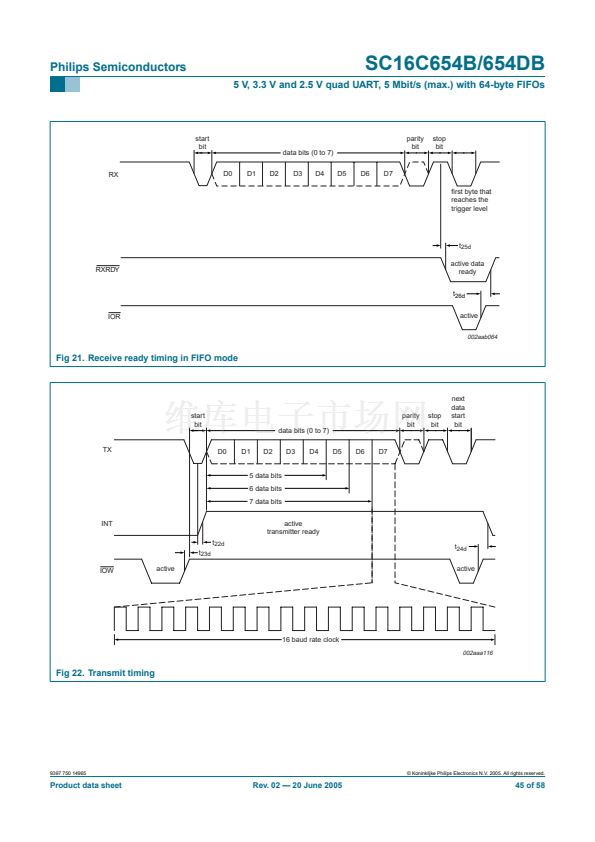

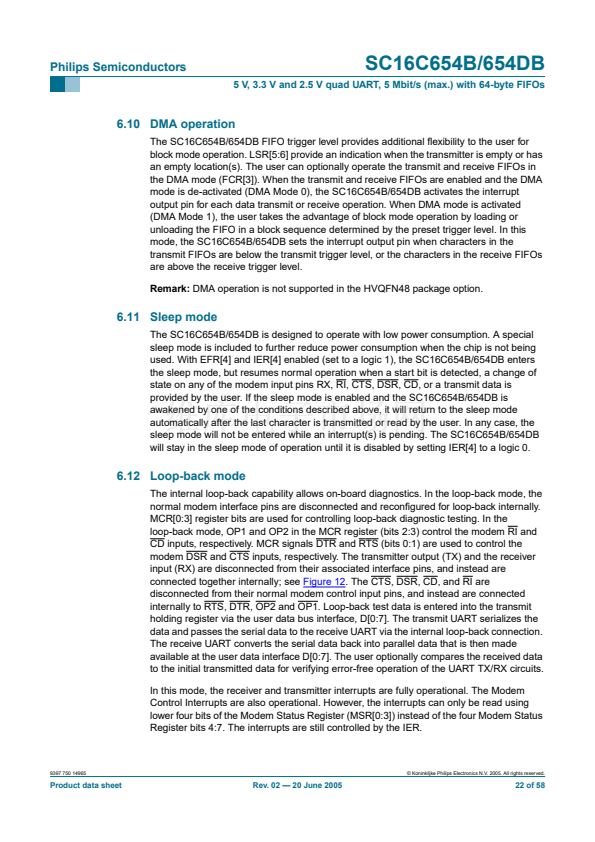

SC16C654B/654DB also provides DMA mode data transfers through FIFO trigger levels
and the TXRDY and RXRDY signals. (TXRDY and RXRDY signals are not available in the

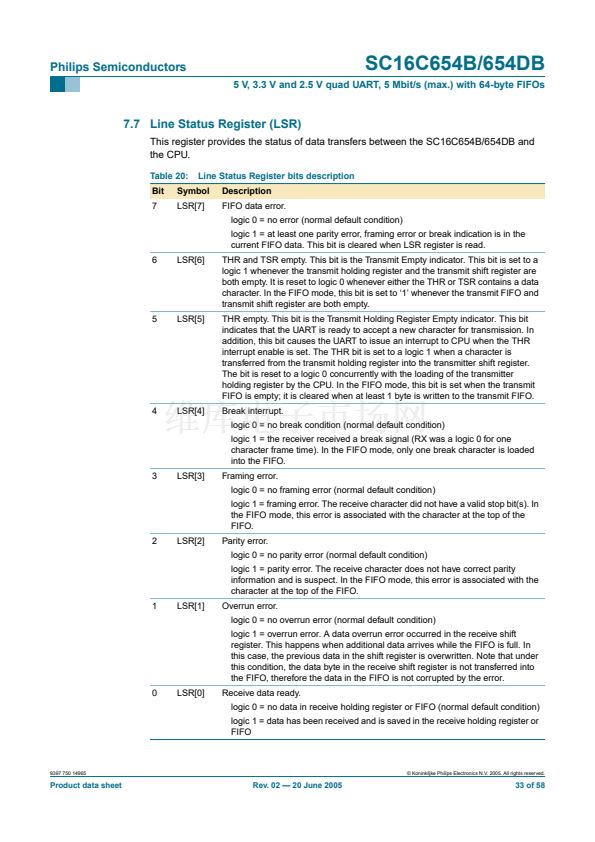

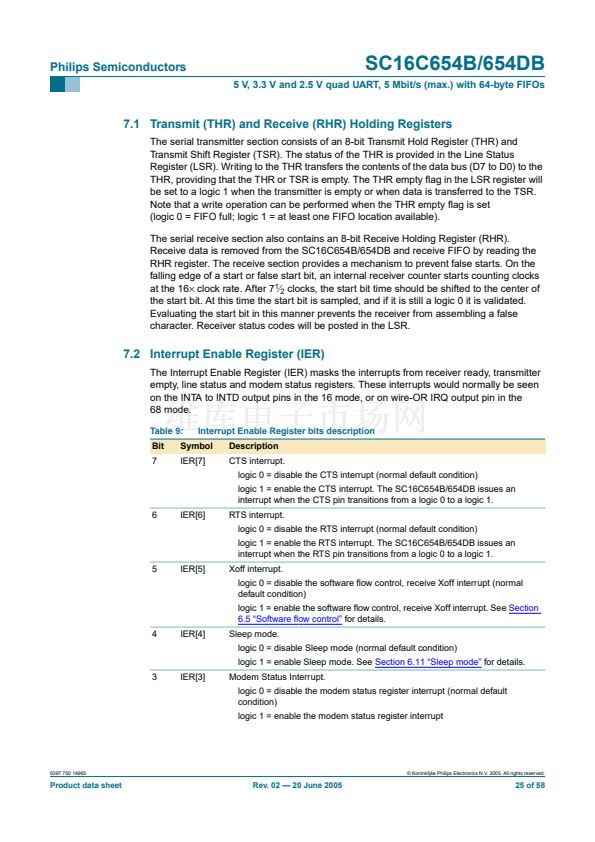

HVQFN48 package.) On-board status registers provide the user with error indications,

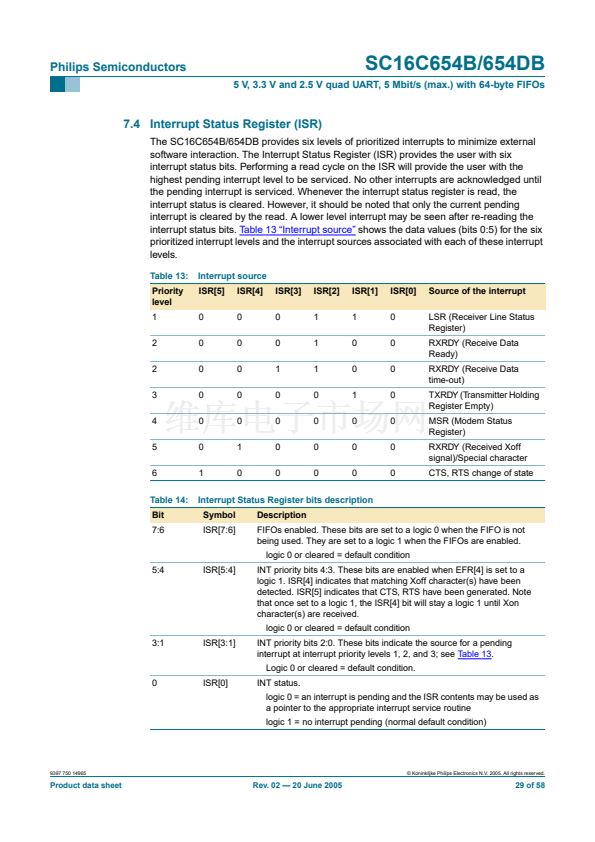

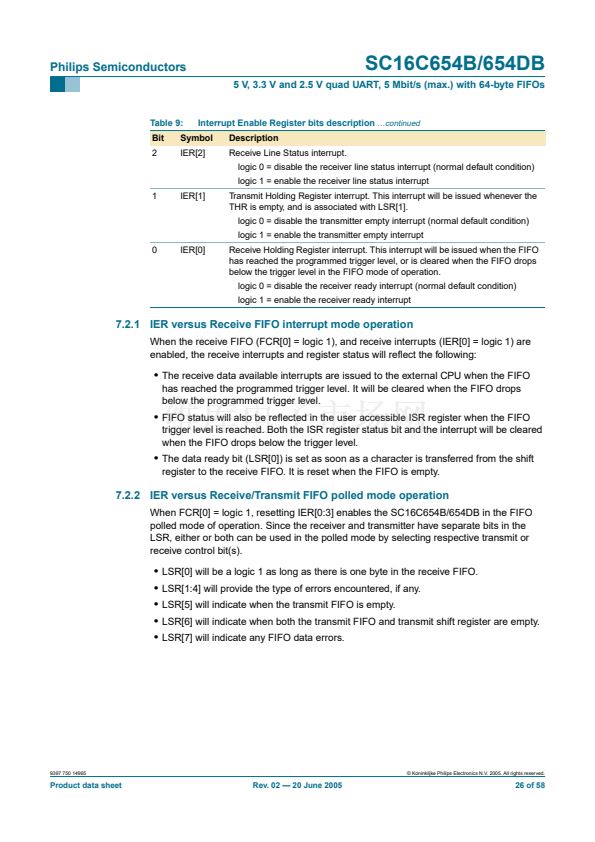

operational status, and modem interface control. System interrupts may be tailored to

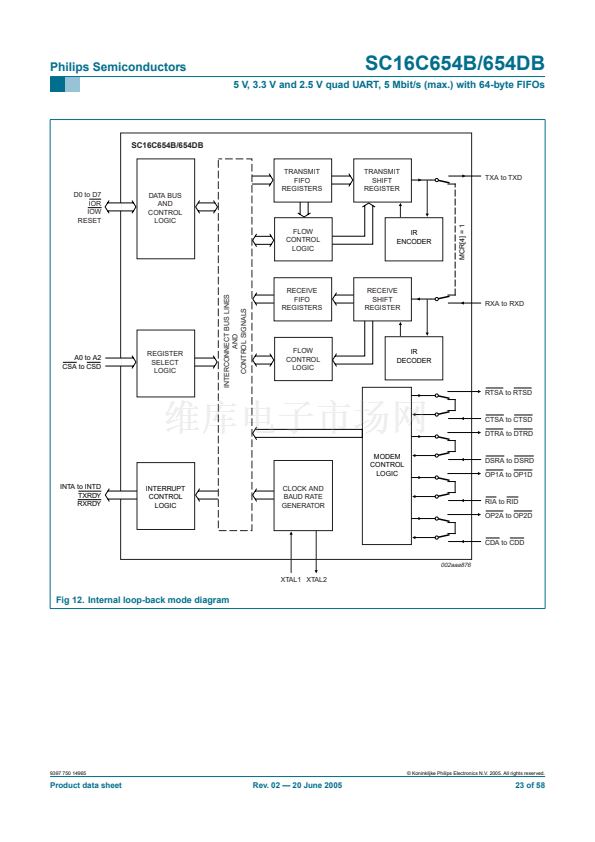

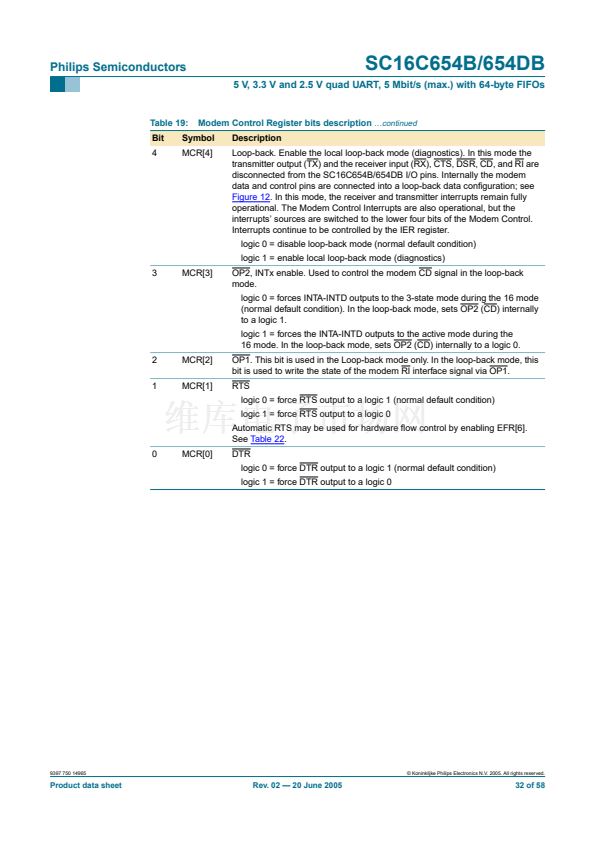

meet user requirements. An internal loop-back capability allows on-board diagnostics.
The SC16C654B/654DB operates at 5 V, 3.3 V and 2.5 V, and the industrial temperature

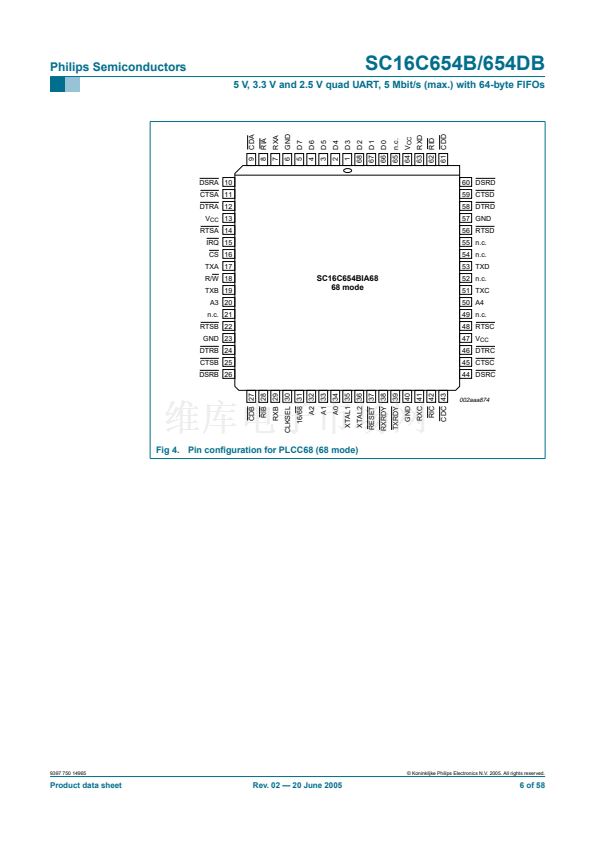

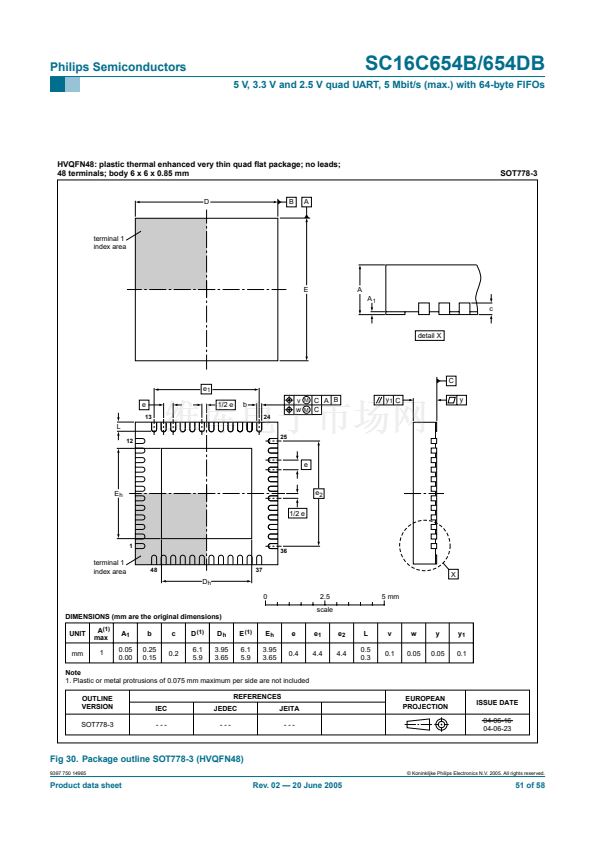

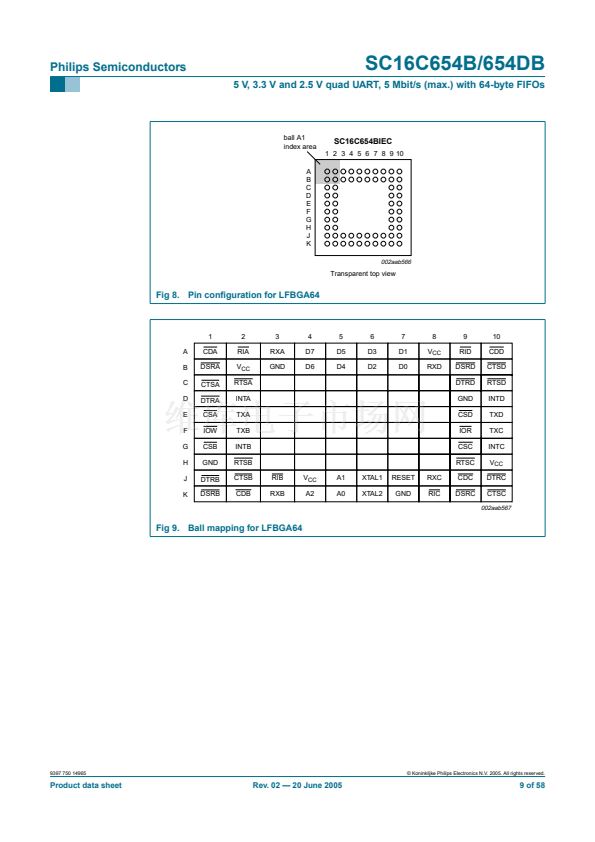

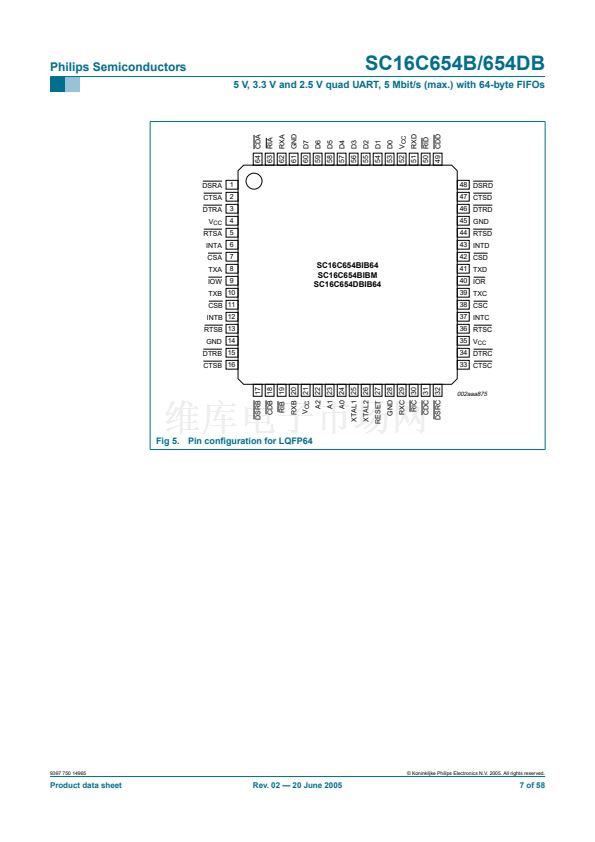

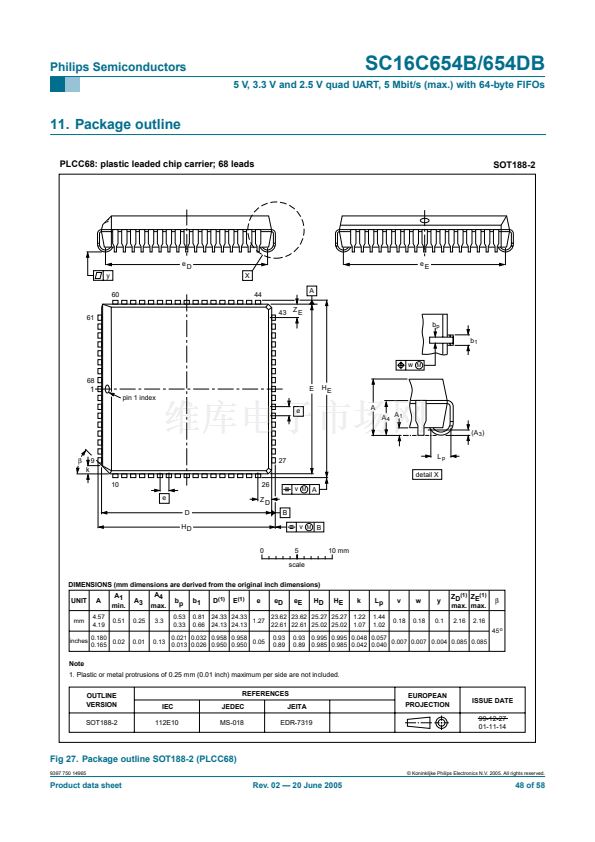

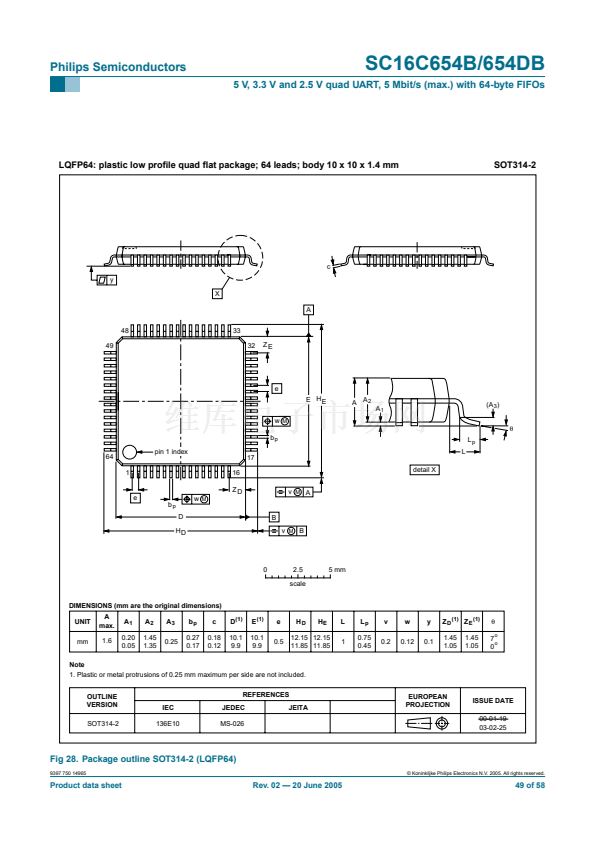

range, and is available in plastic PLCC68, LQFP64, HVQFN48 and LFBGA64 packages.

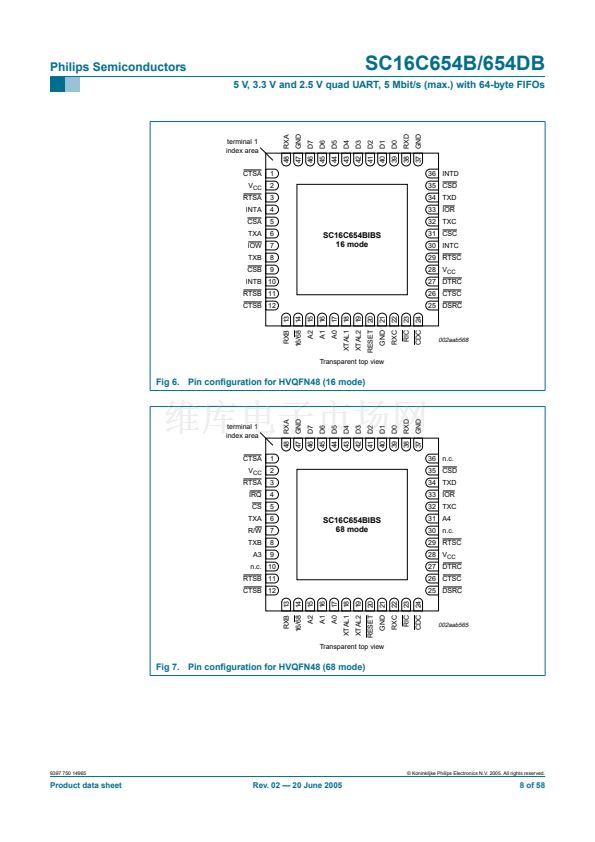

On the HVQFN48 package, only channel C has all the modem pins. Channel A and
channel B have only RTS and CTS pins, and channel D does not have any modem pin.
2. Features
s
s
s
s
s
s
s
s
s
s
s

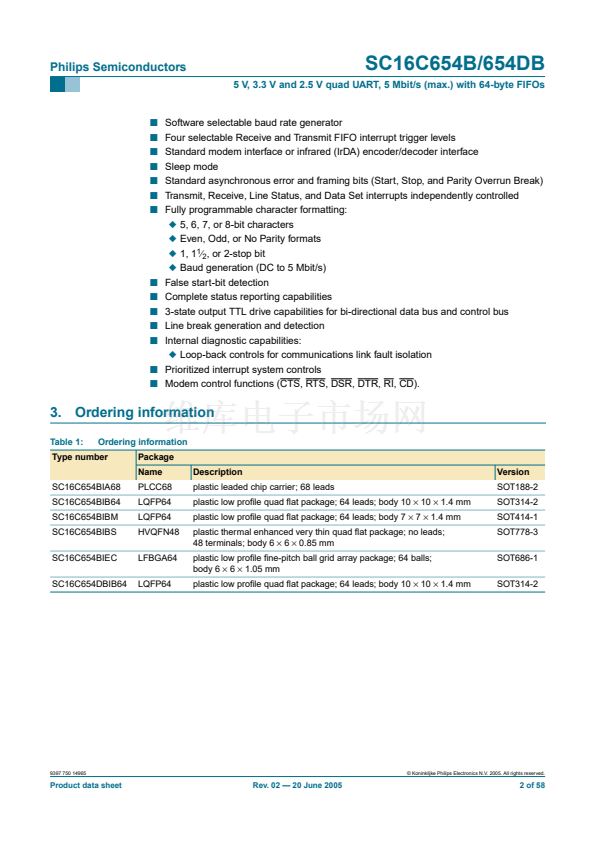

4 channel UART
5 V, 3.3 V and 2.5 V operation
Industrial temperature range (鈭?0
擄C
to +85
擄C)
SC16C654B is pin and software compatible with the industry-standard
ST16C454/554, ST16C654, ST68C454/554, TL16C554
SC16C654DB is pin and software compatible with ST16C654D, and software
compatible with ST16C454/554, ST68C454/554, TL16C554
Up to 5 Mbit/s data rate at 5 V and 3.3 V and 3 Mbit/s at 2.5 V
5 V tolerant inputs
64-byte transmit FIFO
64-byte receive FIFO with error 鏗俛gs

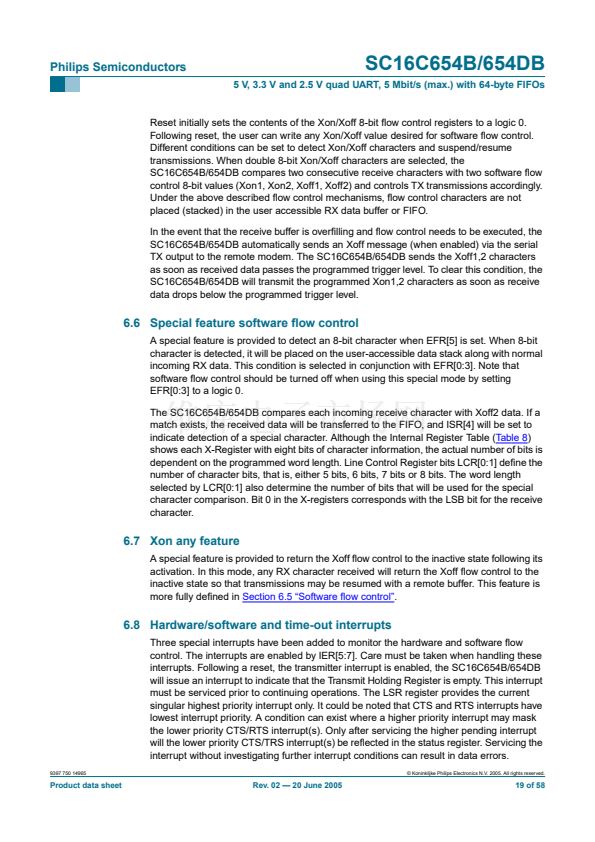

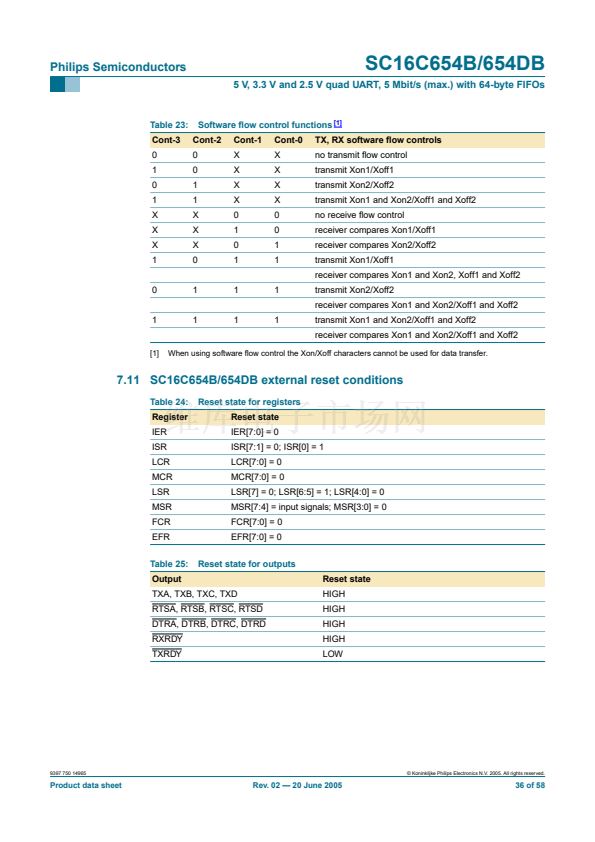

Automatic software (Xon/Xoff)/hardware (RTS/CTS) 鏗俹w control
Programmable Xon/Xoff characters
