SC16312 Datasheet

  • SC16312

  • 1/4 to 1/11 DUTY FIP(VFD) CONTROLLER/DRIVER

  • 12頁

  • SILAN

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Silan
Semiconductors

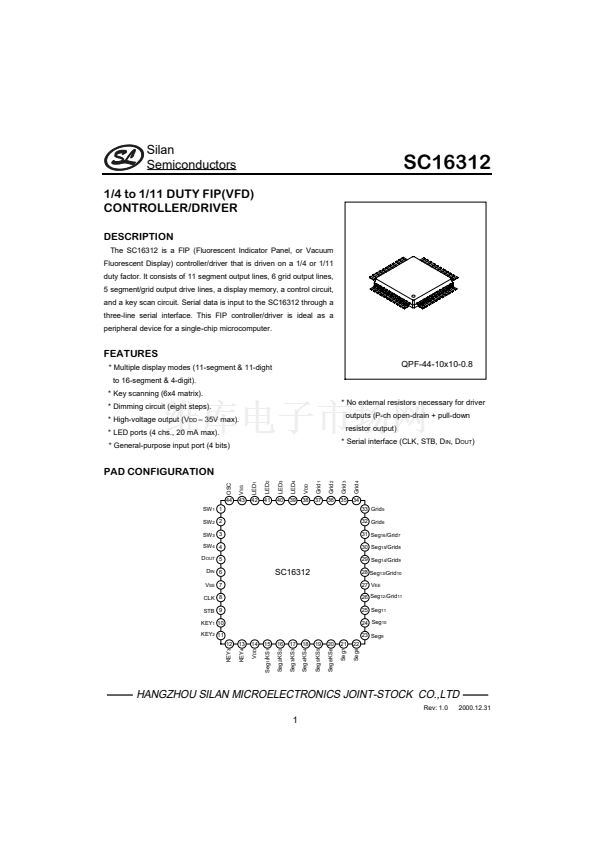

1/4 to 1/11 DUTY FIP(VFD)
CONTROLLER/DRIVER
DESCRIPTION
The SC16312 is a FIP (Fluorescent Indicator Panel, or Vacuum
Fluorescent Display) controller/driver that is driven on a 1/4 or 1/11
duty factor. It consists of 11 segment output lines, 6 grid output lines,
5 segment/grid output drive lines, a display memory, a control circuit,
and a key scan circuit. Serial data is input to the SC16312 through a
three-line serial interface. This FIP controller/driver is ideal as a
peripheral device for a single-chip microcomputer.
SC16312
FEATURES
* Multiple display modes (11-segment & 11-dight
to 16-segment & 4-digit).
* Key scanning (6x4 matrix).
* Dimming circuit (eight steps).
* High-voltage output (V
DD
鈥?35V max).
* LED ports (4 chs., 20 mA max).
* General-purpose input port (4 bits)
* No external resistors necessary for driver
outputs (P-ch open-drain + pull-down
resistor output)
* Serial interface (CLK, STB, D
IN
, D
OUT
)
QPF-44-10x10-0.8
PAD CONFIGURATION
LED
2
LED
3
LED
4
Grid
1
Grid
2
Grid
3
35
LED
1
OSC
44
SW
1
1
SW
2
2
SW
3
3
SW
4
4
D
OUT
5
D
IN
6
V
SS
7
CLK 8
STB 9
KEY
1
10
KEY
2
11
12
KEY
3
13
KEY
4
14
V
DD
15
Seg
1
/
KS
1
16
Seg
2/
KS
2
17
Seg
3/
KS
3
18
Seg
4/
KS
4
19
Seg
5/
KS
5
20
Seg
6/
KS
6
21
Seg
7
22
Seg
8
43
V
SS
42
41
40
39
38
37
36
34
33 Grid
5
32 Grid
6
31 Seg
16
/Grid
7
30 Seg
15
/Grid
8
29 Seg
14
/Grid
9
Grid
4
28 Seg
13/
Grid
10
27 V
EE
26 Seg
12/
Grid
11
25 Seg
11
24 Seg
10
23 Seg
9
V
DD
SC16312
HANGZHOU SILAN MICROELECTRONICS JOINT-STOCK CO.,LTD
Rev: 1.0
2000.12.31
1
