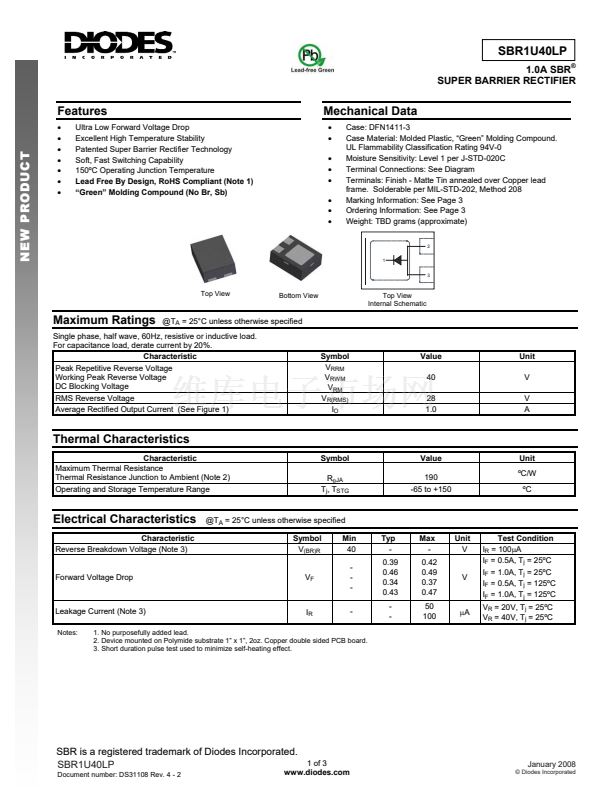

Case: DFN1411-3
Case Material: Molded Plastic, 鈥淕reen鈥?Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: See Diagram
Terminals: Finish - Matte Tin annealed over Copper lead
frame. Solderable per MIL-STD-202, Method 208
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: TBD grams (approximate)
2
1
3
NEW PRODUCT
Top View
Bottom View
Top View
Internal Schematic
Maximum Ratings
@T
A
= 25擄C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (See Figure 1)
Symbol
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
Value
40
28
1.0
Unit
V
V
A
Thermal Characteristics
Characteristic
Maximum Thermal Resistance
Thermal Resistance Junction to Ambient (Note 2)
Operating and Storage Temperature Range
Symbol
R
胃
JA
T
j
, T
STG
Value
190
-65 to +150
Unit
潞C/W
潞C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 3)
@T
A
= 25擄C unless otherwise specified
Symbol
V
(BR)R
Min
40
-
-
-
-
Typ
-
0.39
0.46
0.34
0.43
-
-
Max
-
0.42
0.49
0.37
0.47
50
100
Unit
V
Test Condition
I
R
= 100渭A
I
F
= 0.5A, T
j
= 25潞C
I
F
= 1.0A, T
j
= 25潞C
I
F
= 0.5A, T
j
= 125潞C
I
F
= 1.0A, T
j
= 125潞C
V
R
= 20V, T
j
= 25潞C
V
R
= 40V, T
j
= 25潞C
Forward Voltage Drop
V
F
V
Leakage Current (Note 3)
Notes:
I
R
渭A
1. No purposefully added lead.
2. Device mounted on Polymide substrate 1鈥?x 1鈥? 2oz. Copper double sided PCB board.
3. Short duration pulse test used to minimize self-heating effect.
SBR is a registered trademark of Diodes Incorporated.
SBR1U40LP
Document number: DS31108 Rev. 4 - 2
1 of 3
www.diodes.com
January 2008
漏 Diodes Incorporated
