Ordering number:ENN6343
Schottky Barrier Diode
SBE002
50V, 1A Rectifier
Applications
路 High frequency rectification (switching regulators,
converters, choppers).
Package Dimensions
unit:mm
1295
[SBE002]
2.9
6
5
4
0.6
0.05
1.6
2.8
0.15
路 Low forward voltage (V
F
max=0.55V).
路 Fast reverse recovery time (t
rr
max=10ns).
路 Low switching noise.
路 Low leakage current and high reliability due to
highly reliable planar structure.
路 Ultrasmall package, permitting SBE002-applied sets
to be compact and slim (mounting height 0.9mm).
路 Large allowable power dissipation.
1
2
0.4
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
IO
IFSM
Tj
Tstg
50Hz sine wave, 1 cycle
Conditions
0.7
0.9
0.2
3
0.95
0.6
1 : Cathode
2 : Cathode
3 : No Contact
4 : Anode
5 : Cathode
6 : Cathode
SANYO : CPH6
Ratings
50
55
1
10
鈥?5 to +125
鈥?5 to +125
0.2
Features
Unit
V
V
A
A
藲C
藲C
Electrical Characteristics
at Ta = 25藲C
Parameter
Reverse Voltage
Forward Voltage
Reverse Current
Interterminal Capacitance
Reverse Recovery Time
Thermal Resistance
Symbol
VR
VF
IR
C
trr
Rthj-a
IR=300碌A(chǔ)
IF=1A
VR=25V
VR=10V, f=1MHz

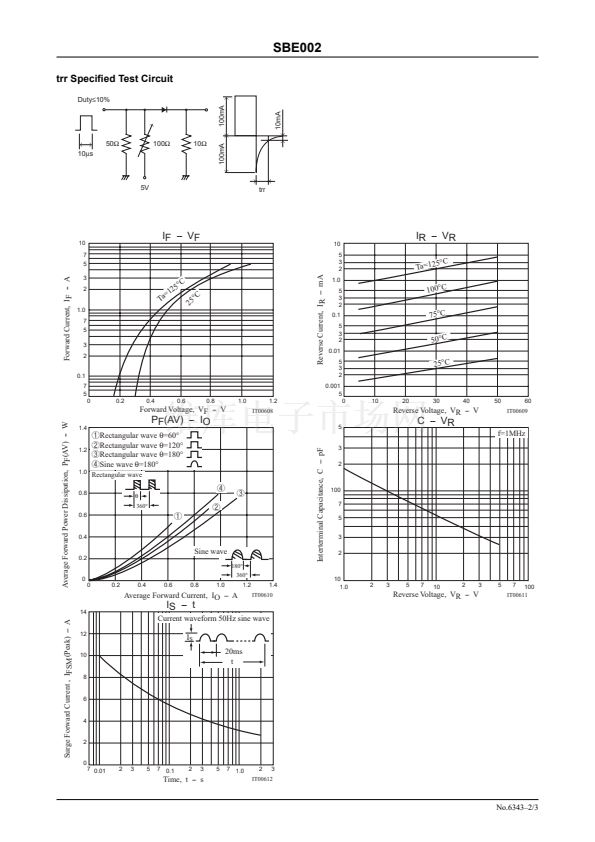

IF=IR=100mA, See specified Test Circuit.
Mounted on a ceramic board (600mm
脳0.8mm)
2
Conditons
Ratings
min
50
0.55
80
52
10
110
typ
max
Unit
V
V
碌A(chǔ)
pF
ns
藲C/W
Marking : SD
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft鈥檚
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
O0899GI (KT) No.6343鈥?/3
1
2
3
