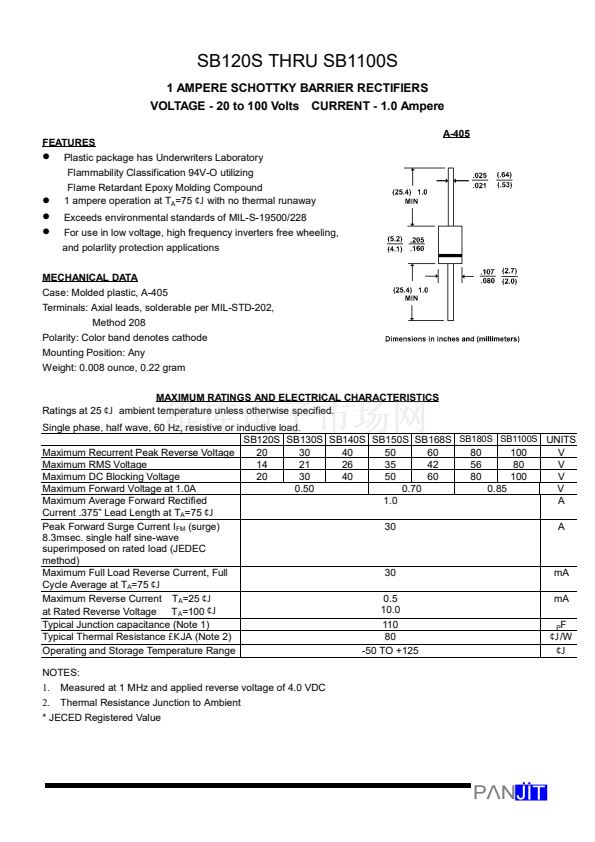

SB120S THRU SB1100S
1 AMPERE SCHOTTKY BARRIER RECTIFIERS
VOLTAGE - 20 to 100 Volts
FEATURES
l
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O utilizing
l
l
l
Flame Retardant Epoxy Molding Compound
1 ampere operation at T
A
=75
壟J
with no thermal runaway
Exceeds environmental standards of MIL-S-19500/228
For use in low voltage, high frequency inverters free wheeling,
and polarlity protection applications
MECHANICAL DATA
Case: Molded plastic, A-405
Terminals: Axial leads, solderable per MIL-STD-202,
Method 208
Polarity: Color band denotes cathode
Mounting Position: Any
Weight: 0.008 ounce, 0.22 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
壟J
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
SB120S SB130S SB140S SB150S SB168S
SB180S SB1100S
UNITS
Maximum Recurrent Peak Reverse Voltage
20
30
40
50
60
80
100
V
Maximum RMS Voltage
14
21
26
35
42
56
80
V
Maximum DC Blocking Voltage
20
30
40
50
60
80
100
V
Maximum Forward Voltage at 1.0A
0.50
0.70
0.85
V
Maximum Average Forward Rectified
1.0
A
Current .375鈥?Lead Length at T
A
=75
壟J
Peak Forward Surge Current I
FM
(surge)
30
A
8.3msec. single half sine-wave
superimposed on rated load (JEDEC
method)
Maximum Full Load Reverse Current, Full
30
mA
Cycle Average at T
A
=75
壟J
Maximum Reverse Current T
A
=25
壟J
0.5
mA
10.0
at Rated Reverse Voltage T
A
=100
壟J
Typical Junction capacitance (Note 1)
110
P
F
Typical Thermal Resistance
攏KJA
(Note 2)
80
壟J
/W
Operating and Storage Temperature Range
-50 TO +125
壟J
NOTES:
1.
Measured at 1 MHz and applied reverse voltage of 4.0 VDC
2.
Thermal Resistance Junction to Ambient
* JECED Registered Value
CURRENT - 1.0 Ampere
A-405
1
2
