Ordering number:EN4171A
SB10W05V
Schottky Barrier Diode (Twin Type 路 Cathode Common)
50V, 1A Rectifier
Applications
路 High frequency rectification (switching regulators,
converters, choppers).
Package Dimensions
unit:mm
1238A
[SB10W05V]
Features
路 Low forward voltage (VF max=0.55V).
路 Fast reverse recovery time (trr max=10ns).
路 Low switching noise.
路 Low leakage current and high reliability due to
highly reliable planar structure.
1:Anode
2:Cathode
3:Anode
SANYO:NMP
Specifications
Absolute Maximum Ratings
at Ta = 25藲C (Value per element)
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
IO
IFSM
Tj
Tstg
50Hz sine wave, 1 cycle
Conditions
Ratings
50
55
1
10
鈥?5 to +125
鈥?5 to +125
Unit
V
V
A
A
藲C
藲C

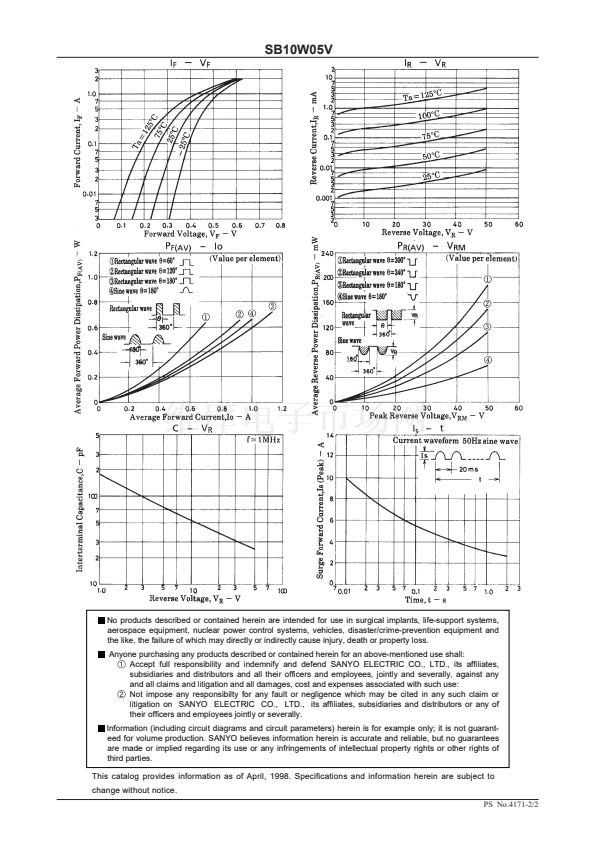

Electrical Characteristics
at Ta = 25藲C (Value per element)
Parameter
Reverse Voltage
Forward Voltage
Reverse Current
Interterminal Capacitance
Reverse Recovery Time
Thermal Resistance
Symbol
VR
VF
IR
C
trr
Rth(j-a)
IR=300碌A(chǔ)
IF=1A
VR=25V
VR=10V, f=1MHz
IF=IR=100mA, See specified Test Circuit.
110
52
10
Conditons
Ratings
min
50
0.55
80
typ
max
Unit
V
V
碌A(chǔ)
pF
ns
藲C/W
trr Test Circuit
Electrical Connection
1:Anode
2:Cathode
3:Anode
(Top view)
