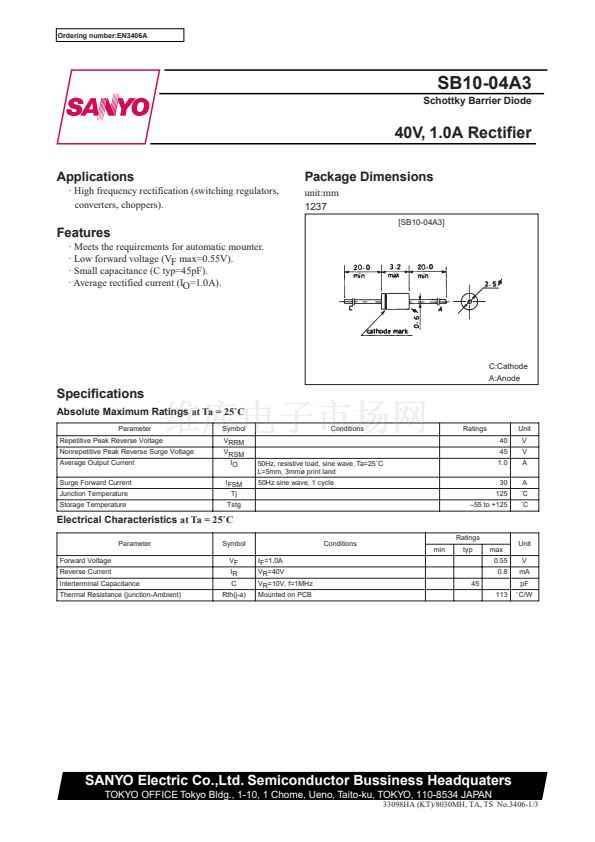

Ordering number:EN3406A
SB10-04A3
Schottky Barrier Diode
40V, 1.0A Rectifier
Applications
路 High frequency rectification (switching regulators,
converters, choppers).
Package Dimensions
unit:mm
1237
[SB10-04A3]
Features
路 Meets the requirements for automatic mounter.
路 Low forward voltage (VF max=0.55V).
路 Small capacitance (C typ=45pF).
路 Average rectified current (IO=1.0A).
C:Cathode
A:Anode
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
IO
IFSM
Tj
Tstg
Conditions
Ratings
40
45
Unit
V
V
A
A
50Hz, resistive load, sine wave, Ta=25藲C
L=5mm, 3mm酶 print land
50Hz sine wave, 1 cycle
1.0
30
125
鈥?5 to +125
藲C
藲C
Electrical Characteristics
at Ta = 25藲C
Parameter
Forward Voltage
Reverse Current
Interterminal Capacitance
Thermal Resistance (junction-Ambient)
Symbol
VF
IR
C
Rth(j-a)
IF=1.0A
VR=40V
VR=10V, f=1MHz
Mounted on PCB
45
113
Conditions
Ratings
min
typ
max
0.55
0.8
Unit
V
mA
pF
藲C/W
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/8030MH, TA, TS No.3406-1/3
