SA9102CSA Datasheet

  • SA9102CSA

  • SINGLE PHASE UNIDIRECTIONAL POWER/ENERGY METERING IC PULSE O...

  • 12頁

  • SAMES

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

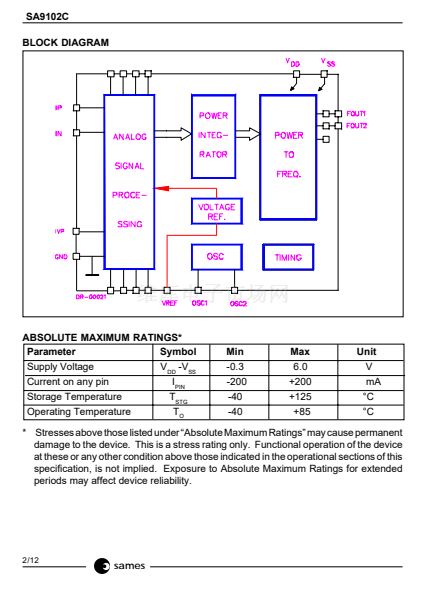

SA9102C
SINGLE PHASE UNIDIRECTIONAL POWER/ENERGY
METERING IC PULSE OUTPUT
FEATURES
s
sames
Performs unidirectional power and
energy measurement
Meets the IEC 521/1036 Specification
requirements for Class 1 AC Watt hour
meters
Protected against ESD
Total power consumption rating typically
25mW
s
Adaptable to different types of current
sensors
Operates over a wide temperature
range
Precision voltage reference on-chip
Different pulse rate options available
s
s
s
s
s
s
DESCRIPTION
The SAMES SA9102C Single Phase
unidirectional Power/Energy metering
integrated circuit generates a pulse rate
output, the frequency of which is
proportional to the power consumption.
The SA9102C performs the calculation for
active power.
This method of calculation takes the power
factor into account.
Energy consumption is determined by the
power measurement being integrated over
time.
This innovative universal single phase
power/energy metering integrated circuit
is ideally suited for energy calculations in
applications such as electricity dispensing
systems (ED's), residential municipal
metering and factory energy metering and
control.
The SA9102C integrated circuit is available
in both 20 pin dual-in-line plastic (DIP-20),
as well as 20 pin small outline (SOIC-20)
package types.
2047
PIN CONNECTIONS
IIN
IIP
VREF
CVON
CVOP
CVIN
CVIP
V DD
NC
OSC2
1
2
3
4
5
6
7
8
9
10
DR-00020
20
19
18
17
16
15
14
13
12
11
GND
IVP
CION
CIOP
CIIN
CIIP
V SS
FOUT2
FOUT1
OSC1
Package: DIP-20
SOIC-20
1/12
PDS039-SA9102C-001
REV. D
05-09-1995
