SA5V0(C)A - SA170(C)A

Transient Voltage Suppressors

SA5V0(C)A - SA170(C)A

Features

鈥?/div>

Glass passivated junction.

500W Peak Pulse Power capability on

10/1000

碌s

waveform.

Excellent clamping capability.

Low incremental surge resistance.

Fast response time; typically less

than 1.0 ps from 0 volts to BV for

unidirectional and 5.0 ns for

bidirectional.

Typical I

less than 1.0

碌A(chǔ)

above 10V.

DO-15

COLOR BAND DENOTES CATHODE

ON UNIDIRECTIONAL DEVICES ONLY. NO

COLOR BAND ON BIDIRECTIONAL DEVICES.

鈥?/div>

DEVICES FOR BIPOLAR APPLICATIONS

- Bidirectional types use CA suffix.

- Electrical Characteristics apply in both directions.

500 Watt Transient Voltage Suppressors

Absolute Maximum Ratings*

Symbol

PPM

FSM

stg

= 25擄C unless otherwise noted

Parameter

Peak Pulse Power Dissipation on 10/1000

碌s

waveform

Peak Pulse Current on 10/1000

碌s

waveform

Power Dissipation

.375 " lead length @ T

= 75擄C

Non-repetitive Peak Forward Surge Current

superimposed on rated load (JEDEC method)

Storage Temperature Range

Operating Junction Temperature

Value

500

see table

1.0

(Note 1)

Units

擄C

-65 to +175

+ 175

These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Note 1:

Measured on 8.3 ms single half-sine wave or equivalent square wave; Duty cycle = 4 pulses per minute maximum.

錚?002

Fairchild Semiconductor Corporation

SA5V0(C)A - SA170(C)A, Rev. D

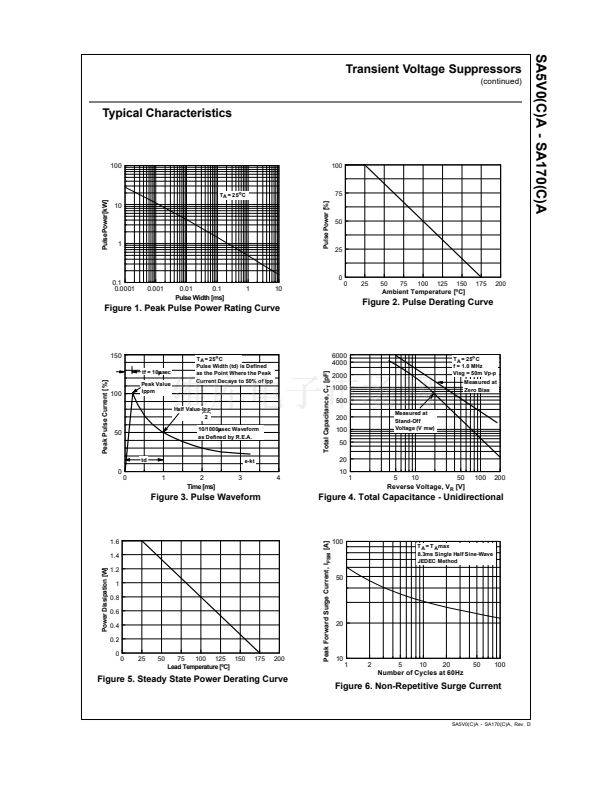

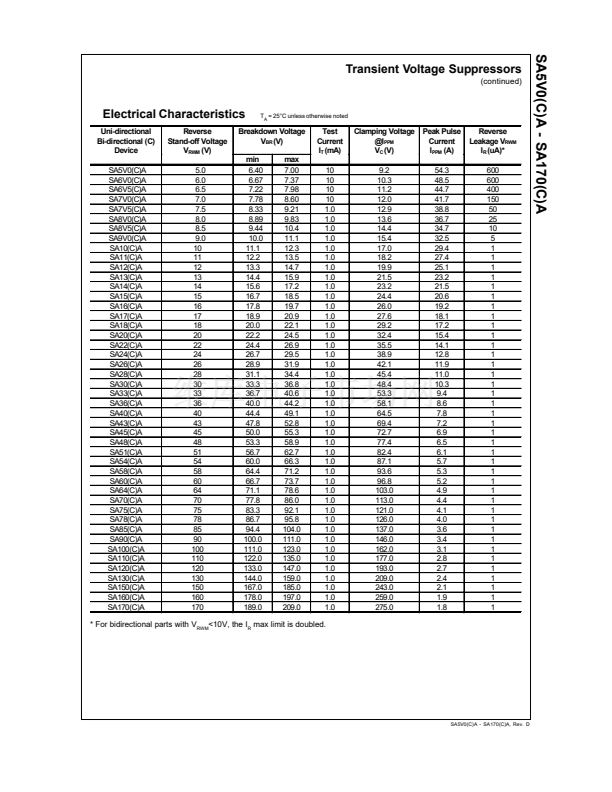

標準包裝
1,000
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
MiniMosorb™
電壓 - 反向隔離（標準值）
28V
電壓 - 擊穿
31.1V
功率（瓦特）
500W
電極標記
單向
安裝類型
通孔
封裝/外殼
DO-204AC，DO-15，軸向
供應商設備封裝
DO-15
包裝
散裝
其它名稱
SA28AOS
