SA16B3RL Datasheet

  • SA16B3RL

  • ST EMI Filters with ESD Protection PROTECTION

  • 5頁

  • STMicroelectronics   STMicroelectronics

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

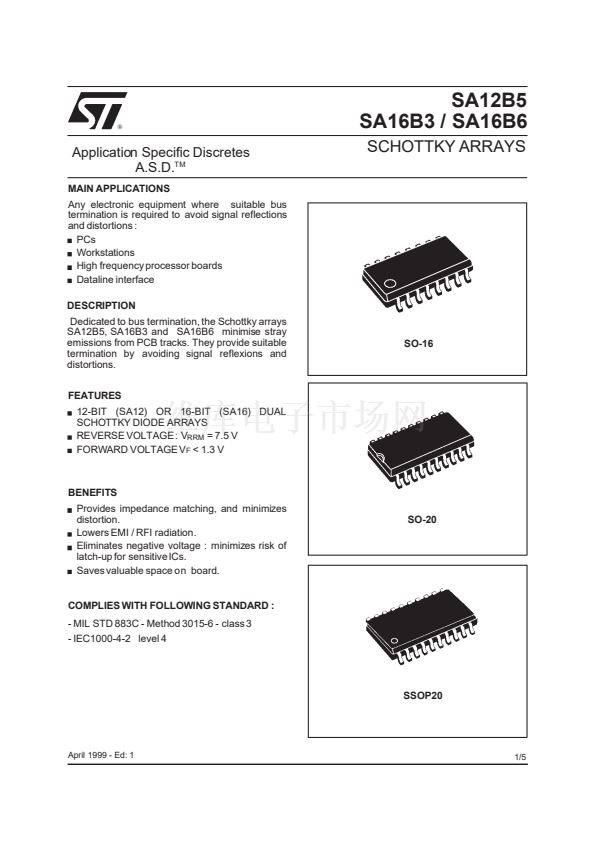

SA12B5
SA16B3 / SA16B6
SCHOTTKY ARRAYS
Application Specific Discretes
A.S.D.
TM
MAIN APPLICATIONS
Any electronic equipment where suitable bus
termination is required to avoid signal reflections
and distortions :
PCs
Workstations
High frequency processor boards
Dataline interface
DESCRIPTION
Dedicated to bus termination, the Schottky arrays
SA12B5, SA16B3 and SA16B6 minimise stray
emissions from PCB tracks. They provide suitable
termination by avoiding signal reflexions and
distortions.
FEATURES
12-BIT (SA12) OR 16-BIT (SA16) DUAL
SCHOTTKY DIODE ARRAYS
REVERSE VOLTAGE : V
RRM
= 7.5 V
FORWARD VOLTAGE V
F
< 1.3 V
SO-16
BENEFITS
Provides impedance matching, and minimizes
distortion.
Lowers EMI / RFI radiation.
Eliminates negative voltage : minimizes risk of
latch-up for sensitive ICs.
Saves valuable space on board.
SO-20
COMPLIES WITH FOLLOWING STANDARD :
- MIL STD 883C - Method 3015-6 - class 3
- IEC1000-4-2 level 4
SSOP20
April 1999 - Ed: 1
1/5

SA16B3RL 產品屬性

  • 1,000

  • 過電壓，電流，溫度裝置

  • TVS - 二極管

  • -

  • 7.5V

  • -

  • -

  • 12 通道陣列 - 雙向

  • 表面貼裝

  • 16-SOIC（0.154"，3.90mm 寬）

  • 16-SO

  • 帶卷 (TR)
