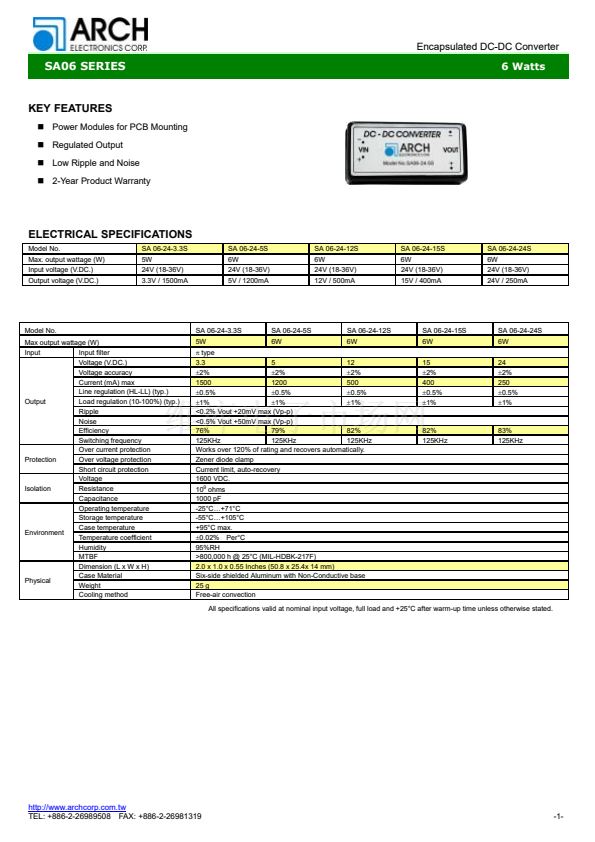

Encapsulated DC-DC Converter
SA06 SERIES
6 Watts
KEY FEATURES
Power Modules for PCB Mounting
Regulated Output
Low Ripple and Noise
2-Year Product Warranty
ELECTRICAL SPECIFICATIONS
Model No.
Max. output wattage (W)
Input voltage (V.DC.)
Output voltage (V.DC.)
SA 06-24-3.3S
5W
24V (18-36V)
3.3V / 1500mA
SA 06-24-5S
6W
24V (18-36V)
5V / 1200mA
SA 06-24-12S
6W
24V (18-36V)
12V / 500mA
SA 06-24-15S
6W
24V (18-36V)
15V / 400mA
SA 06-24-24S
6W
24V (18-36V)
24V / 250mA
Model No.
Max output wattage (W)
Input
Input filter
Voltage (V.DC.)
Voltage accuracy
Current (mA) max
Line regulation (HL-LL) (typ.)
Output
Load regulation (10-100%) (typ.)
Ripple
Noise
Efficiency
Switching frequency
Over current protection
Protection
Over voltage protection
Short circuit protection
Voltage
Isolation
Resistance
Capacitance
Operating temperature
Storage temperature
Case temperature
Environment
Temperature coefficient
Humidity
MTBF
Dimension (L x W x H)
Case Material
Physical
Weight
Cooling method
SA 06-24-3.3S
5W
SA 06-24-5S
6W
SA 06-24-12S
6W
SA 06-24-15S
6W
15
鹵2%
400
鹵0.5%
鹵1%
SA 06-24-24S
6W
24
鹵2%
250
鹵0.5%
鹵1%
蟺
type
3.3
5
12
鹵2%
鹵2%
鹵2%
1500
1200
500
鹵0.5%
鹵0.5%
鹵0.5%
鹵1%
鹵1%
鹵1%
<0.2% Vout +20mV max (Vp-p)
<0.5% Vout +50mV max (Vp-p)
76%
79%
82%
125KHz
125KHz
125KHz
Works over 120% of rating and recovers automatically.
Zener diode clamp
Current limit, auto-recovery
1600 VDC.
10
9
ohms
1000 pF
-25擄C鈥?71擄C
-55擄C鈥?105擄C
+95擄C max.
鹵0.02%
Per擄C
95%RH
>800,000 h @ 25擄C (MIL-HDBK-217F)
2.0 x 1.0 x 0.55 Inches (50.8 x 25.4x 14 mm)
Six-side shielded Aluminum with Non-Conductive base
25 g
Free-air convection
82%
125KHz
83%
125KHz
All specifications valid at nominal input voltage, full load and +25擄C after warm-up time unless otherwise stated.
