S560-6600-L1 Datasheet

  • S560-6600-L1

  • ADSL Magnetics Level One SK70740/41/42 (LXT 770)

  • 46.77KB

  • 2頁

  • BEL   BEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

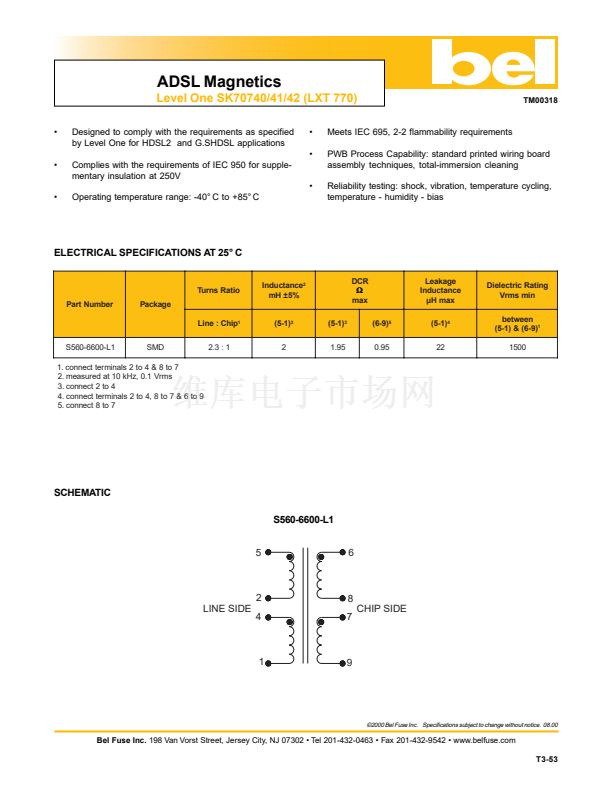

ADSL Magnetics
Level One SK70740/41/42 (LXT 770)
鈥?/div>
Designed to comply with the requirements as specified
by Level One for HDSL2 and G.SHDSL applications
Complies with the requirements of IEC 950 for supple-
mentary insulation at 250V
鈥?/div>
鈥?/div>
Operating temperature range: -40擄 C to +85擄 C
鈥?/div>
鈥?/div>
鈥?/div>
Meets IEC 695, 2-2 flammability requirements
PWB Process Capability: standard printed wiring board
assembly techniques, total-immersion cleaning
Reliability testing: shock, vibration, temperature cycling,
temperature - humidity - bias
TM00318
ELECTRICAL SPECIFICATIONS AT 25擄 C
Inductance
2
mH 鹵5%
DCR
鈩?/div>
max
(5-1)
3
1.95
(6-9)
5
0.95
Leakage
Inductance
碌H max
(5-1)
4
22
Dielectric Rating
Vrms min
between
(5-1) & (6-9)
1
1500
Turns Ratio
Part Number
Package
Line : Chip
1
S560-6600-L1
SMD
2.3 : 1
(5-1)
3
2
1. connect terminals 2 to 4 & 8 to 7
2. measured at 10 kHz, 0.1 Vrms
3. connect 2 to 4
4. connect terminals 2 to 4, 8 to 7 & 6 to 9
5. connect 8 to 7
SCHEMATIC
S560-6600-L1
5
6
2
LINE SIDE
4
8
7
CHIP SIDE
1
9
漏2000 Bel Fuse Inc. Specifications subject to change without notice. 08.00
Bel Fuse Inc.
198 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
T3-53
