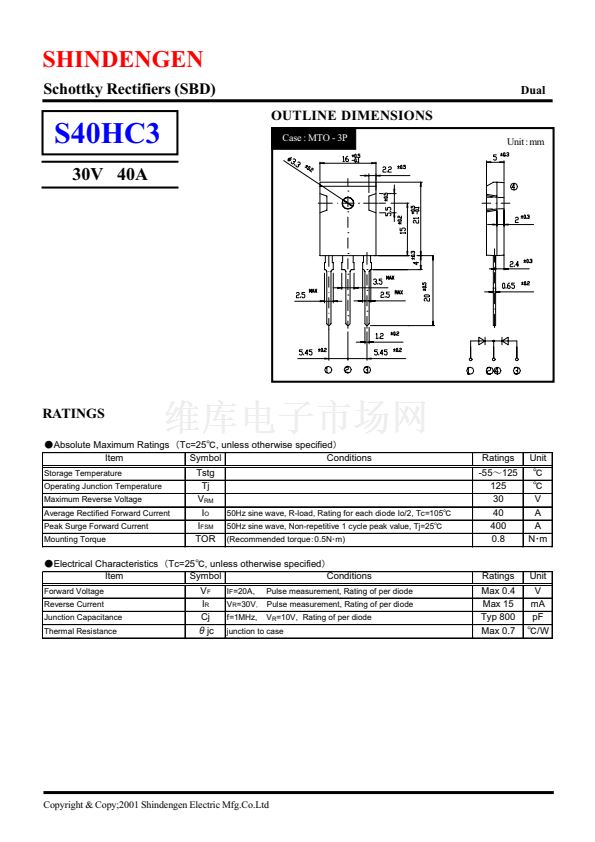

SHINDENGEN

Schottky Rectifiers (SBD)

Dual

S40HC3

30V 40A

OUTLINE DIMENSIONS

Case : MTO - 3P

Unit : mm

RATINGS

聹Absolute

Maximum Ratings

iTc=25聨,

unless otherwise specifiedj

Item

Symbol

Conditions

Storage Temperature

Operating Junction Temperature

Maximum Reverse Voltage

Average Rectified Forward Current

Peak Surge Forward Current

Mounting Torque

Ratings

-55`125

125

30

40

400

0.8

Unit

聨

聨

V

A

A

N樓m

Tstg

Tj

V

RM

I

O

I

FSM

TOR

50Hz sine wave, R-load, Rating for each diode Io/2, Tc=105聨

50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25聨

(Recommended torqueF0.5N樓m)

聹Electrical

Characteristics

iTc=25聨,

unless otherwise specifiedj

Item

Symbol

Conditions

Forward Voltage

Reverse Current

Junction Capacitance

Thermal Resistance

Ratings

Max 0.4

Max 15

Typ 800

Max 0.7

Unit

V

mA

pF

聨/W

V

F

I

R

Cj

脝jc

I

F

=20A,

V

R

=30V

,

f=1MHz,

Pulse measurement, Rating of per diode

Pulse measurement, Rating of per diode

V

R

=10V, Rating of per diode

junction to case
