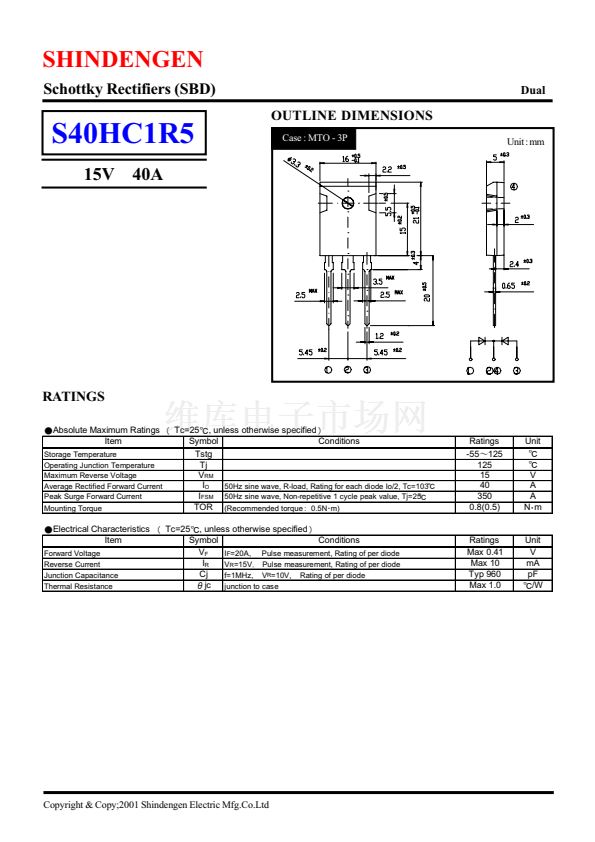

SHINDENGEN

Schottky Rectifiers (SBD)

Dual

S40HC1R5

15V 40A

OUTLINE DIMENSIONS

Case : MTO - 3P

Unit : mm

RATINGS

聹Absolute

Maximum Ratings

i

Tc=25聨, unless otherwise specified

j

Symbol

Conditions

Item

Tstg

Storage Temperature

Tj

Operating Junction Temperature

V

RM

Maximum Reverse Voltage

I

O

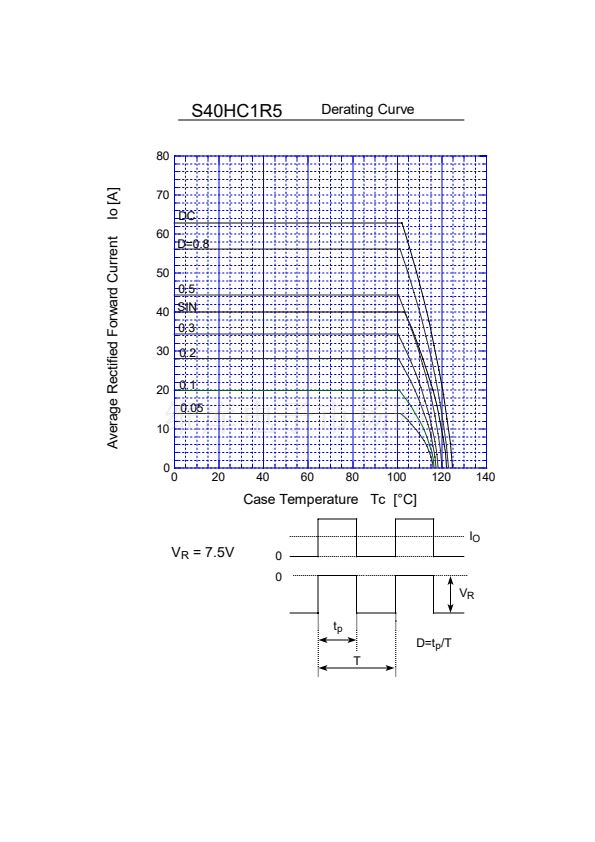

Average Rectified Forward Current

50Hz sine wave, R-load, Rating for each diode Io/2, Tc=103聨

I

FSM

50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25

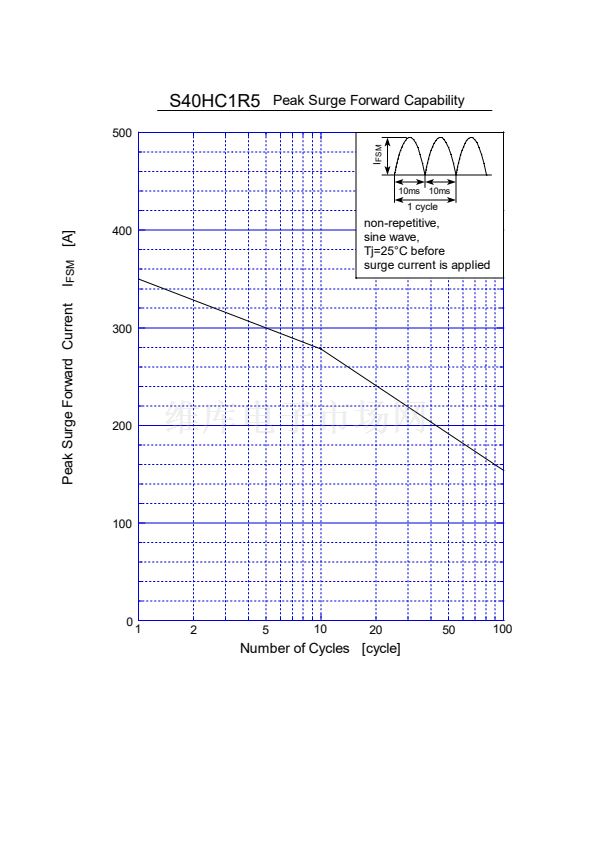

Peak Surge Forward Current

聨

TOR

(Recommended torqueF 0.5N樓m)

Mounting Torque

聹Electrical

Characteristics

i

Tc=25聨, unless otherwise specified

j

Item

Symbol

Conditions

V

F

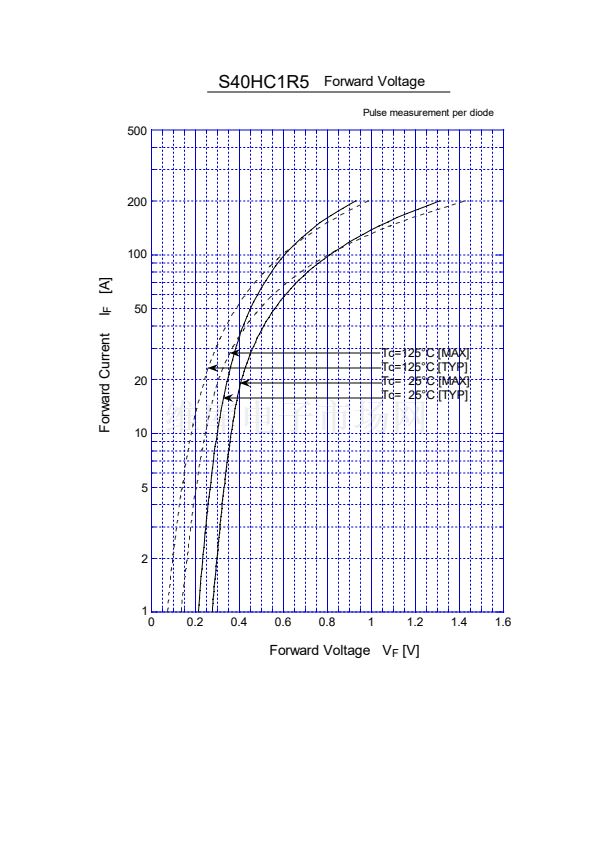

Forward Voltage

I

F

=20A, Pulse measurement, Rating of per diode

I

R

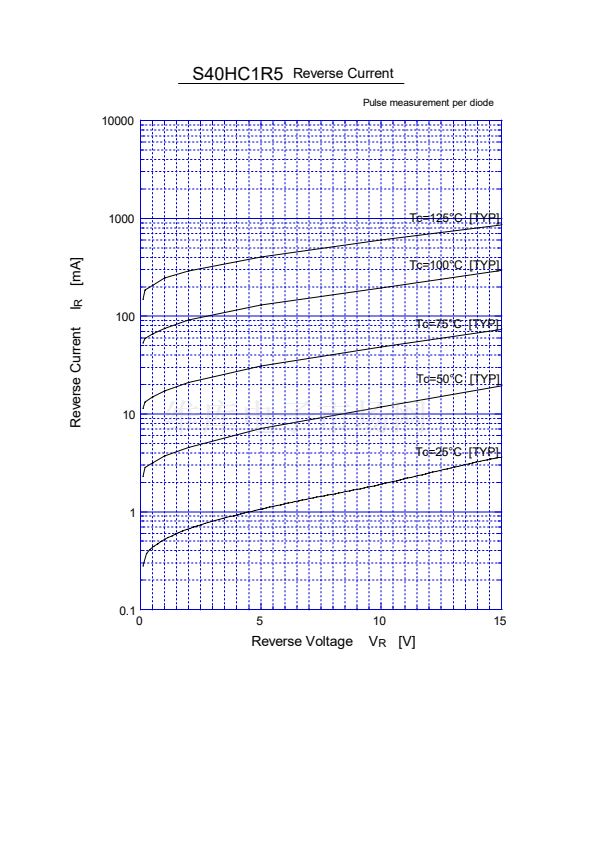

Reverse Current

V

R

=15V

,

Pulse measurement, Rating of per diode

Cj

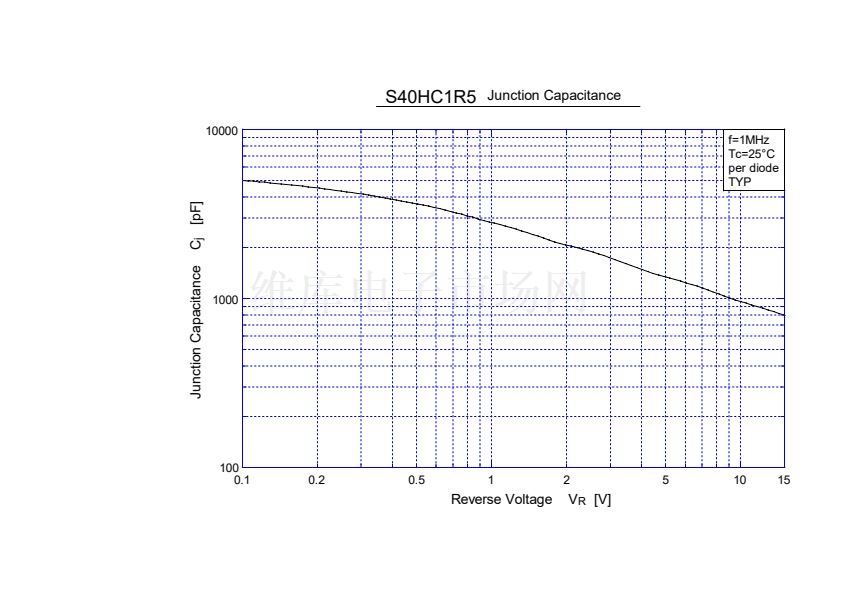

Junction Capacitance

f=1MHz, V

R

=10V, Rating of per diode

Thermal Resistance

junction to case

脝jc

Ratings

-55`125

125

15

40

350

0.8(0.5)

Ratings

Max 0.41

Max 10

Typ 960

Max 1.0

Unit

聨

聨

V

A

A

N樓m

Unit

V

mA

pF

聨/W

Copyright & Copy;2001 Shindengen Electric Mfg.Co.Ltd
