Semiconductor

S3882P

Current Mode PWM Controller

Descriptions

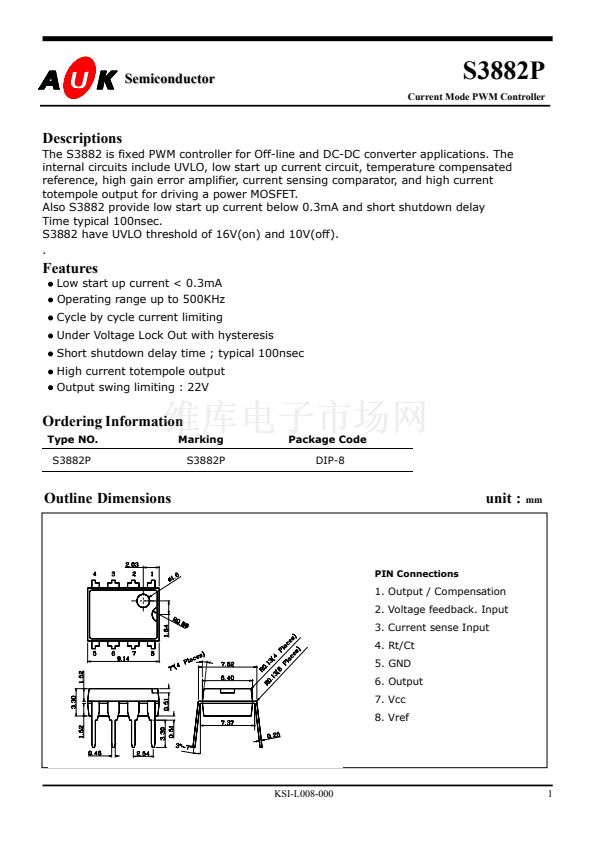

The S3882 is fixed PWM controller for Off-line and DC-DC converter applications. The

internal circuits include UVLO, low start up current circuit, temperature compensated

reference, high gain error amplifier, current sensing comparator, and high current

totempole output for driving a power MOSFET.

Also S3882 provide low start up current below 0.3mA and short shutdown delay

Time typical 100nsec.

S3882 have UVLO threshold of 16V(on) and 10V(off).

Features

鈥?/div>

Low start up current < 0.3mA

鈥?/div>

Operating range up to 500KHz

鈥?/div>

Cycle by cycle current limiting

鈥?/div>

Under Voltage Lock Out with hysteresis

鈥?/div>

Short shutdown delay time ; typical 100nsec

鈥?/div>

High current totempole output

鈥?/div>

Output swing limiting : 22V

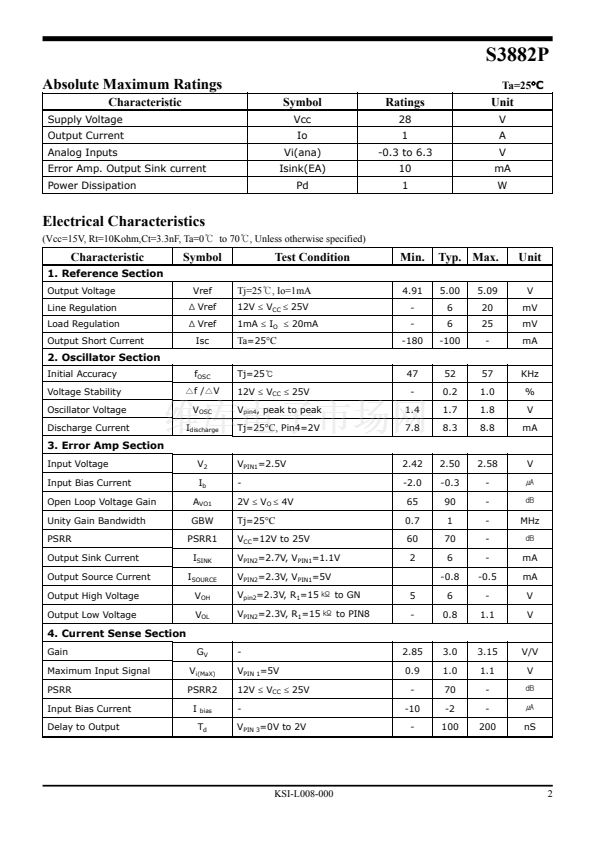

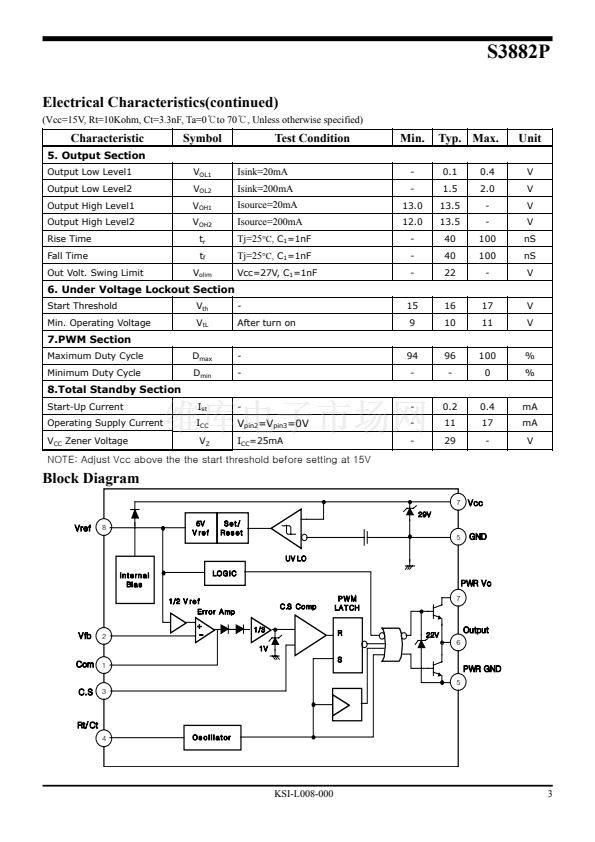

Ordering Information

Type NO.

S3882P

Marking

S3882P

Package Code

DIP-8

Outline Dimensions

unit :

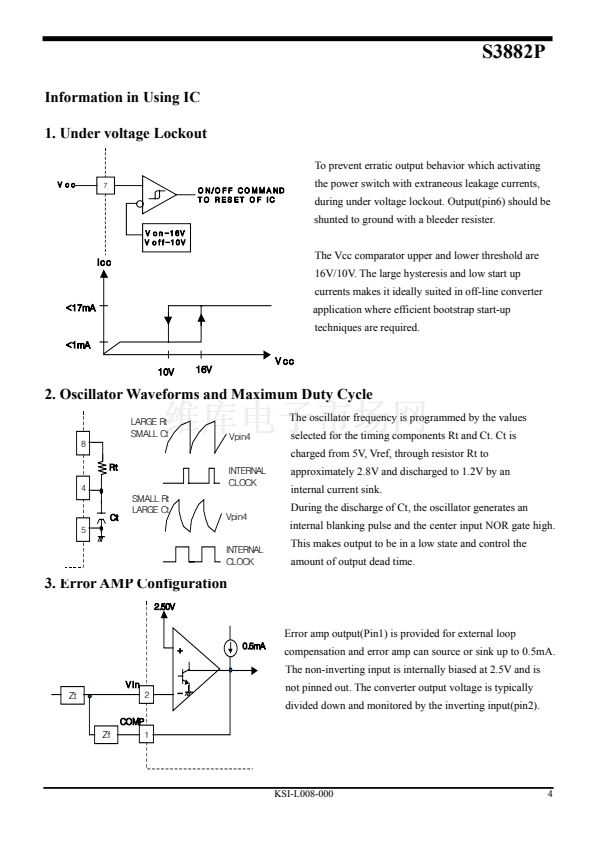

PIN Connections

1. Output / Compensation

2. Voltage feedback. Input

3. Current sense Input

4. Rt/Ct

5. GND

6. Output

7. Vcc

8. Vref
