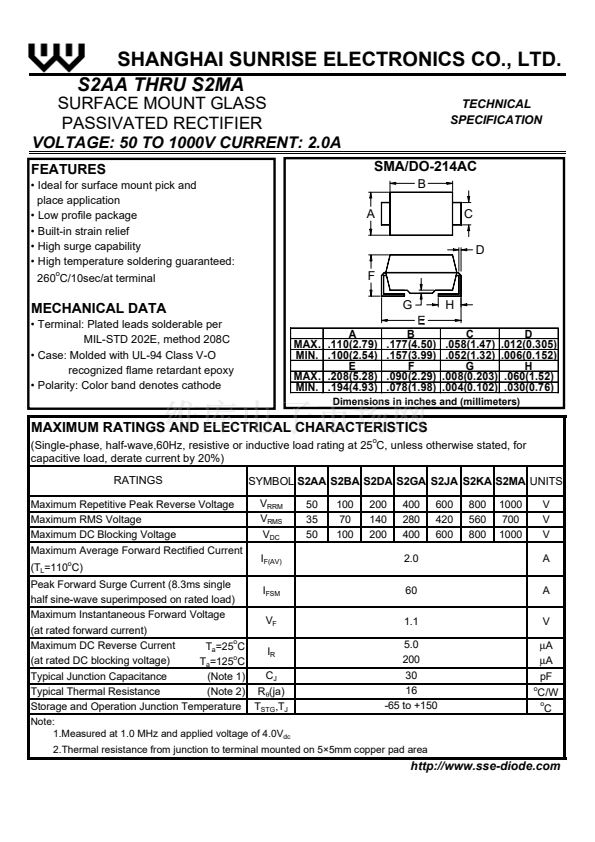

SHANGHAI SUNRISE ELECTRONICS CO., LTD.
S2AA THRU S2MA
SURFACE MOUNT GLASS
PASSIVATED RECTIFIER
VOLTAGE: 50 TO 1000V CURRENT: 2.0A
FEATURES
鈥?Ideal for surface mount pick and
place application
鈥?Low profile package
鈥?Built-in strain relief
鈥?High surge capability
鈥?High temperature soldering guaranteed:
260
o
C/10sec/at terminal
TECHNICAL
SPECIFICATION
SMA/DO-214AC
B
A
C
D
F
G
A
B
MAX. .110(2.79) .177(4.50)
MIN. .100(2.54) .157(3.99)
E
F
MAX. .208(5.28) .090(2.29)
MIN. .194(4.93) .078(1.98)
MECHANICAL DATA
鈥?Terminal: Plated leads solderable per
MIL-STD 202E, method 208C
鈥?Case: Molded with UL-94 Class V-O
recognized flame retardant epoxy
鈥?Polarity: Color band denotes cathode
H
C
D
.058(1.47) .012(0.305)
.052(1.32) .006(0.152)
G
H
.008(0.203) .060(1.52)
.004(0.102) .030(0.76)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Single-phase, half-wave,60Hz, resistive or inductive load rating at 25
o
C, unless otherwise stated, for
capacitive load, derate current by 20%)
RATINGS
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
(T
L
=110 C)
o
SYMBOL
S2AA S2BA S2DA S2GA S2JA S2KA S2MA
UNITS
V
RRM
V
RMS
V
DC
I
F(AV)
50
35
50
100
70
100
200
140
200
400
280
400
2.0
60
1.1
5.0
200
30
16
-65 to +150
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
V
碌A(chǔ)
碌A(chǔ)
pF
o
Peak Forward Surge Current (8.3ms single
I
FSM
half sine-wave superimposed on rated load)
Maximum Instantaneous Forward Voltage
V
F
(at rated forward current)
Maximum DC Reverse Current
T
a
=25
o
C
I
R
(at rated DC blocking voltage)
T
a
=125
o
C
C
J
Typical Junction Capacitance
(Note 1)
Typical Thermal Resistance
(Note 2) R
胃
(ja)
Storage and Operation Junction Temperature T
STG
,T
J
Note:
1.Measured at 1.0 MHz and applied voltage of 4.0V
dc
C/W
o
C
2.Thermal resistance from junction to terminal mounted on 5脳5mm copper pad area
http://www.sse-diode.com
1
