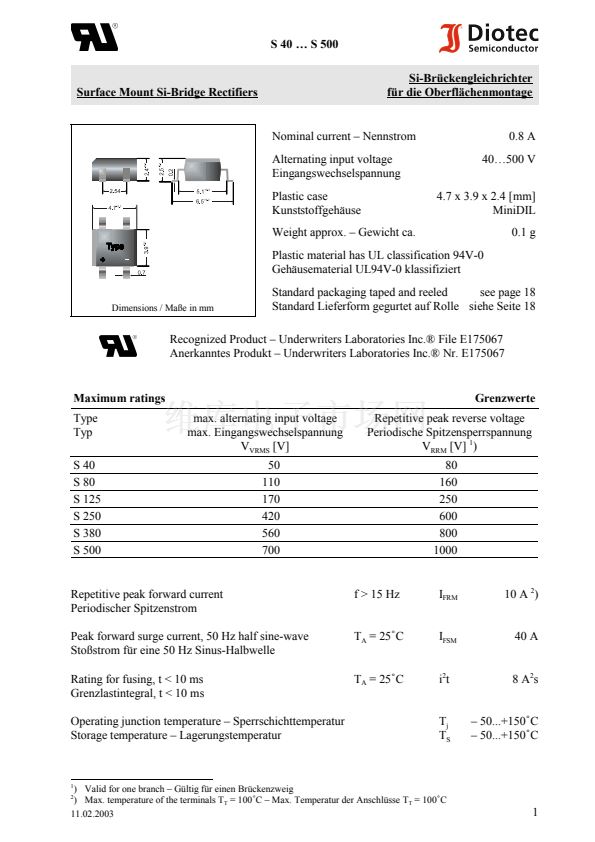

Si-Br眉ckengleichrichter

f眉r die Oberfl盲chenmontage

Surface Mount Si-Bridge Rectifiers

Nominal current 鈥?Nennstrom

Alternating input voltage

Eingangswechselspannung

Plastic case

Kunststoffgeh盲use

Weight approx. 鈥?Gewicht ca.

Plastic material has UL classification 94V-0

Geh盲usematerial UL94V-0 klassifiziert

Dimensions / Ma脽e in mm

0.8 A

40鈥?00 V

4.7 x 3.9 x 2.4 [mm]

MiniDIL

0.1 g

Standard packaging taped and reeled

see page 18

Standard Lieferform gegurtet auf Rolle siehe Seite 18

Recognized Product 鈥?Underwriters Laboratories Inc.廬 File E175067

Anerkanntes Produkt 鈥?Underwriters Laboratories Inc.廬 Nr. E175067

Maximum ratings

Type

Typ

S 40

S 80

S 125

S 250

S 380

S 500

max. alternating input voltage

max. Eingangswechselspannung

V

VRMS

[V]

50

110

170

420

560

700

Grenzwerte

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

V

RRM

[V]

1

)

80

160

250

600

800

1000

Repetitive peak forward current

Periodischer Spitzenstrom

Peak forward surge current, 50 Hz half sine-wave

Sto脽strom f眉r eine 50 Hz Sinus-Halbwelle

Rating for fusing, t < 10 ms

Grenzlastintegral, t < 10 ms

Operating junction temperature 鈥?Sperrschichttemperatur

Storage temperature 鈥?Lagerungstemperatur

f > 15 Hz

T

A

= 25

/

C

T

A

= 25

/

C

I

FRM

I

FSM

i

2

t

T

j

T

S

10 A

2

)

40 A

8 A

2

s

鈥?50...+150

/

C

鈥?50...+150

/

C

1

2

) Valid for one branch 鈥?G眉ltig f眉r einen Br眉ckenzweig

) Max. temperature of the terminals T

T

= 100

/

C 鈥?Max. Temperatur der Anschl眉sse T

T

= 100

/

C
