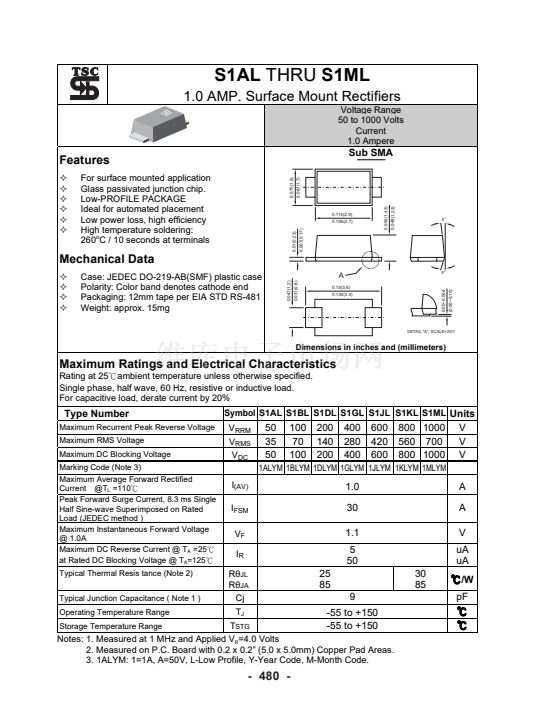

S1AL
THRU
S1ML
1.0 AMP. Surface Mount Rectifiers
Voltage Range
50 to 1000 Volts
Current
1.0 Ampere
Features
For surface mounted application
Glass passivated junction chip.
Low-PROFILE PACKAGE
Ideal for automated placement
Low power loss, high efficiency
High temperature soldering:
260
o
C / 10 seconds at terminals
0.075(1.9)
0.067(1.7)
Sub SMA
0.056(1.43)
0.114(2.9)
0.106(2.7)
0.007(0.17)
0.01(0.23)
0.048(1.23)
5
O
Mechanical Data
Case: JEDEC DO-219-AB(SMF) plastic case
Polarity: Color band denotes cathode end
Packaging: 12mm tape per EIA STD RS-481
Weight: approx. 15mg
A
0.047(1.2)
0.031(0.8)
5
O
0.134(3.4)
DETAIL "A", SCALE=20/1
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25鈩僡mbient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Marking Code (Note 3)
Maximum Average Forward Rectified
Current @T
L
=110鈩?/div>
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@ 1.0A
Maximum DC Reverse Current @ T
A
=25鈩?/div>
at Rated DC Blocking Voltage @ T
A
=125鈩?/div>
Typical Thermal Resis tance (Note 2)
Typical Junction Capacitance ( Note 1 )
Operating Temperature Range
Storage Temperature Range
Symbol S1AL S1BL S1DL S1GL S1JL S1KL S1ML
Units
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
R胃
JL
R胃
JA
Cj
T
J
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
1.1
5
50
600
420
600
800 1000
560 700
800 1000
(0.00~0.10)
0.00~0.004
0.15(3.8)
V
V
V
A
A
V
uA
uA
1ALYM 1BLYM 1DLYM 1GLYM 1JLYM 1KLYM 1MLYM
25
85
9
-55 to +150
-55 to +150
30
85
鈩?W
pF
鈩?/div>
鈩?/div>
T
STG
Notes: 1. Measured at 1 MHz and Applied V
R
=4.0 Volts
2. Measured on P.C. Board with 0.2 x 0.2鈥?(5.0 x 5.0mm) Copper Pad Areas.
3. 1ALYM: 1=1A, A=50V, L-Low Profile, Y-Year Code, M-Month Code.
- 480 -
