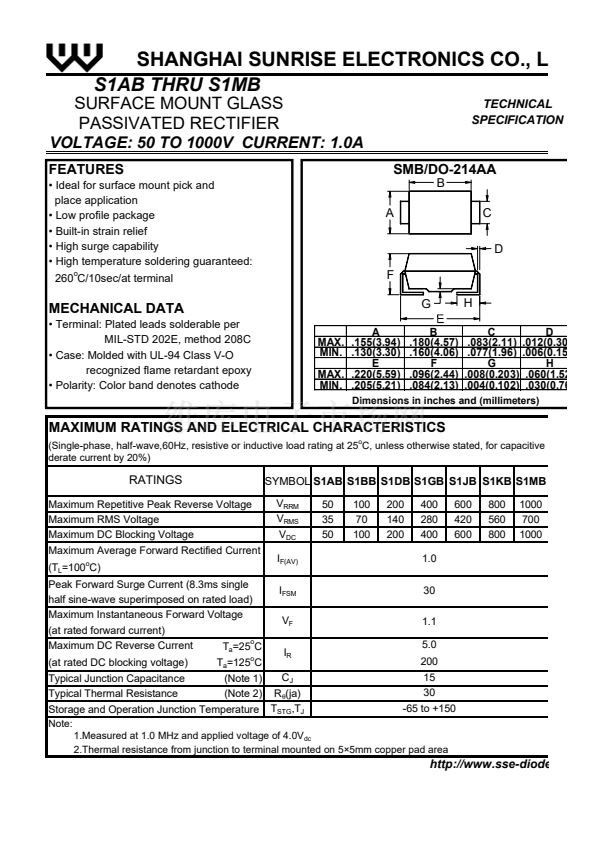

SHANGHAI SUNRISE ELECTRONICS CO., L
S1AB THRU S1MB
SURFACE MOUNT GLASS
PASSIVATED RECTIFIER
VOLTAGE: 50 TO 1000V CURRENT: 1.0A
FEATURES
鈥?Ideal for surface mount pick and
place application
鈥?Low profile package
鈥?Built-in strain relief
鈥?High surge capability
鈥?High temperature soldering guaranteed:
260
o
C/10sec/at terminal
TECHNICAL
SPECIFICATION
SMB/DO-214AA
B
A
C
D
F
G
MAX.
MIN.
MAX.
MIN.
A
.155(3.94)
.130(3.30)
E
.220(5.59)
.205(5.21)
B
.180(4.57)
.160(4.06)
F
.096(2.44)
.084(2.13)
MECHANICAL DATA
鈥?Terminal: Plated leads solderable per
MIL-STD 202E, method 208C
鈥?Case: Molded with UL-94 Class V-O
recognized flame retardant epoxy
鈥?Polarity: Color band denotes cathode
H
C
D
.083(2.11) .012(0.30
.077(1.96) .006(0.15
G
H
.008(0.203) .060(1.52
.004(0.102) .030(0.76
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Single-phase, half-wave,60Hz, resistive or inductive load rating at 25
o
C, unless otherwise stated, for capacitive
derate current by 20%)
RATINGS
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
(T
L
=100 C)
Peak Forward Surge Current (8.3ms single
half sine-wave superimposed on rated load)
Maximum Instantaneous Forward Voltage
(at rated forward current)
Maximum DC Reverse Current
T
a
=25
o
C
(at rated DC blocking voltage)
o
SYMBOL
S1AB S1BB S1DB S1GB S1JB S1KB S1MB
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
1.1
5.0
600
420
600
800
560
800
1000
700
1000
200
T
a
=125
o
C
15
C
J
Typical Junction Capacitance
(Note 1)
30
Typical Thermal Resistance
(Note 2) R
胃
(ja)
-65 to +150
Storage and Operation Junction Temperature T
STG
,T
J
Note:
1.Measured at 1.0 MHz and applied voltage of 4.0V
dc
2.Thermal resistance from junction to terminal mounted on 5脳5mm copper pad area
http://www.sse-diode
