S1D2511B01 Datasheet

  • S1D2511B01

  • DEFLECTION PROCESSOR FOR MULTISYNC MONITORS

  • 34頁

  • SAMSUNG   SAMSUNG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

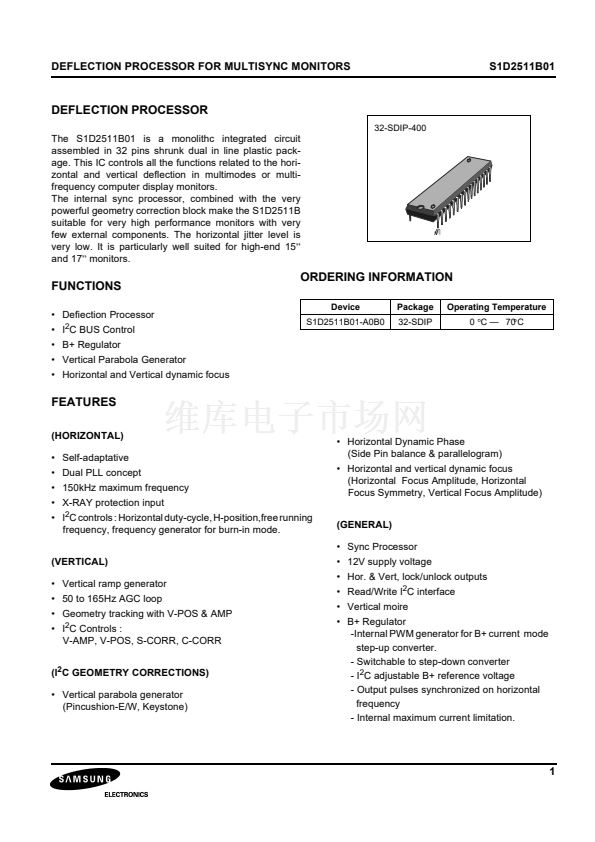

DEFLECTION PROCESSOR FOR MULTISYNC MONITORS
S1D2511B01
DEFLECTION PROCESSOR
32-SDIP-400
The S1D2511B01 is a monolithc integrated circuit
assembled in 32 pins shrunk dual in line plastic pack-
age. This IC controls all the functions related to the hori-
zontal and vertical deflection in multimodes or multi-
frequency computer display monitors.
The internal sync processor, combined with the very
powerful geometry correction block make the S1D2511B
suitable for very high performance monitors with very
few external components. The horizontal jitter level is
very low. It is particularly well suited for high-end 15鈥?/div>
and 17鈥?monitors.
FUNCTIONS
鈥?Defiection Processor
鈥?I
2
C BUS Control
鈥?B+ Regulator
鈥?Vertical Parabola Generator
鈥?Horizontal and Vertical dynamic focus
ORDERING INFORMATION
Device
S1D2511B01-A0B0
Package
32-SDIP
Operating Temperature
0
擄C
鈥?70
擄C
FEATURES
(HORIZONTAL)
鈥?Self-adaptative
鈥?Dual PLL concept
鈥?150kHz maximum frequency
鈥?X-RAY protection input
鈥?I
2
C controls : Horizontal duty-cycle, H-position,free running
frequency, frequency generator for burn-in mode.
(VERTICAL)
鈥?Vertical ramp generator
鈥?50 to 165Hz AGC loop
鈥?Geometry tracking with V-POS & AMP
鈥?I
2
C Controls :
V-AMP, V-POS, S-CORR, C-CORR
(I
2
C GEOMETRY CORRECTIONS)
鈥?Vertical parabola generator
(Pincushion-E/W, Keystone)
(GENERAL)
鈥?Sync Processor
鈥?12V supply voltage
鈥?Hor. & Vert, lock/unlock outputs
鈥?Read/Write I
2
C interface
鈥?Vertical moire
鈥?B+ Regulator
-Internal PWM generator for B+ current mode
step-up converter.
- Switchable to step-down converter
- I
2
C adjustable B+ reference voltage
- Output pulses synchronized on horizontal
frequency
- Internal maximum current limitation.
鈥?Horizontal Dynamic Phase
(Side Pin balance & parallelogram)
鈥?Horizontal and vertical dynamic focus
(Horizontal Focus Amplitude, Horizontal
Focus Symmetry, Vertical Focus Amplitude)
1
