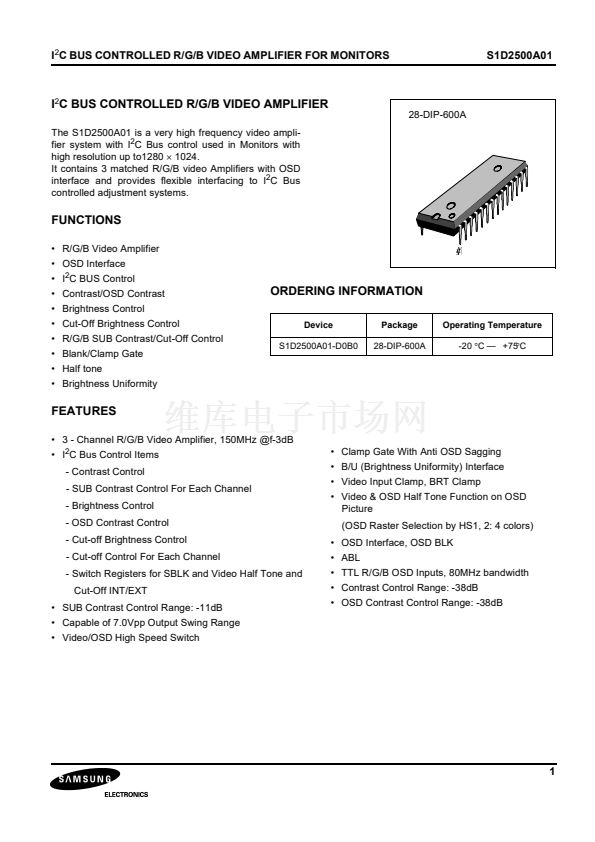

I

2

C BUS CONTROLLED R/G/B VIDEO AMPLIFIER FOR MONITORS

S1D2500A01

I

2

C BUS CONTROLLED R/G/B VIDEO AMPLIFIER

28-DIP-600A

The S1D2500A01 is a very high frequency video ampli-

fier system with I

2

C Bus control used in Monitors with

high resolution up to1280

脳

1024.

It contains 3 matched R/G/B video Amplifiers with OSD

interface and provides flexible interfacing to I

2

C Bus

controlled adjustment systems.

FUNCTIONS

鈥?R/G/B Video Amplifier

鈥?OSD Interface

鈥?I

2

C BUS Control

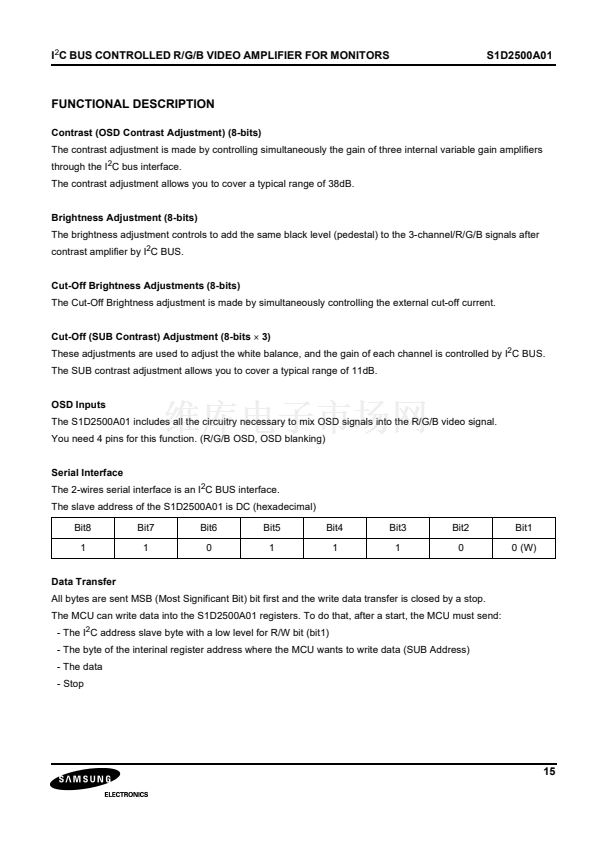

鈥?Contrast/OSD Contrast

鈥?Brightness Control

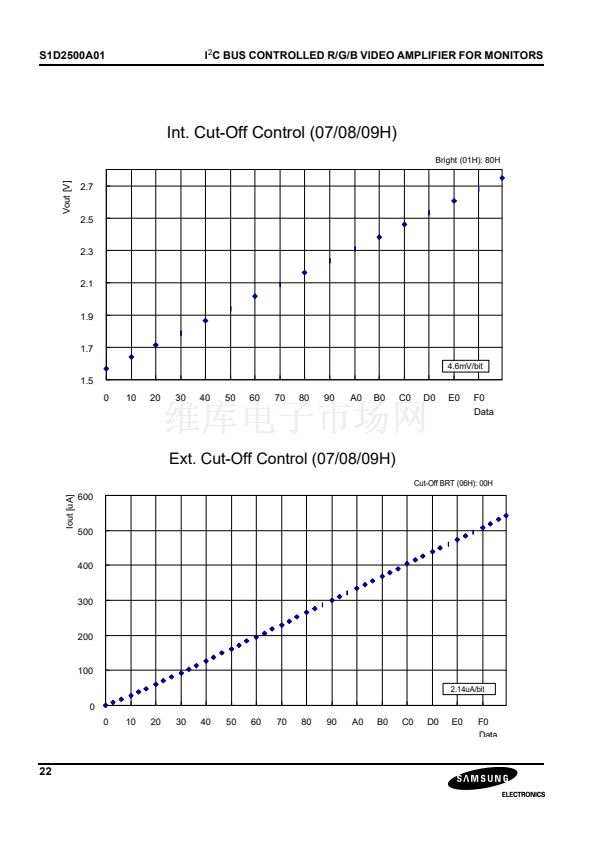

鈥?Cut-Off Brightness Control

鈥?R/G/B SUB Contrast/Cut-Off Control

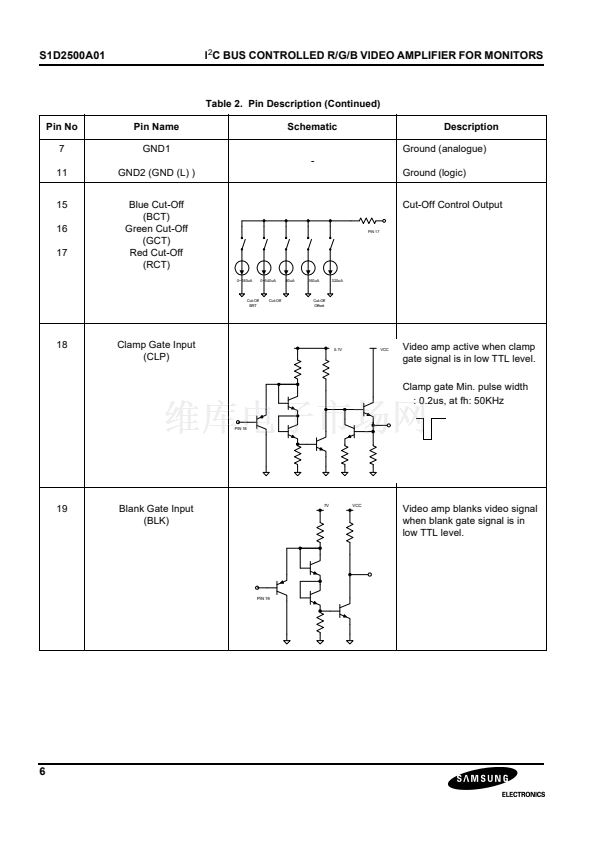

鈥?Blank/Clamp Gate

鈥?Half tone

鈥?Brightness Uniformity

Device

S1D2500A01-D0B0

Package

28-DIP-600A

Operating Temperature

-20

擄C

鈥?+75

擄C

ORDERING INFORMATION

FEATURES

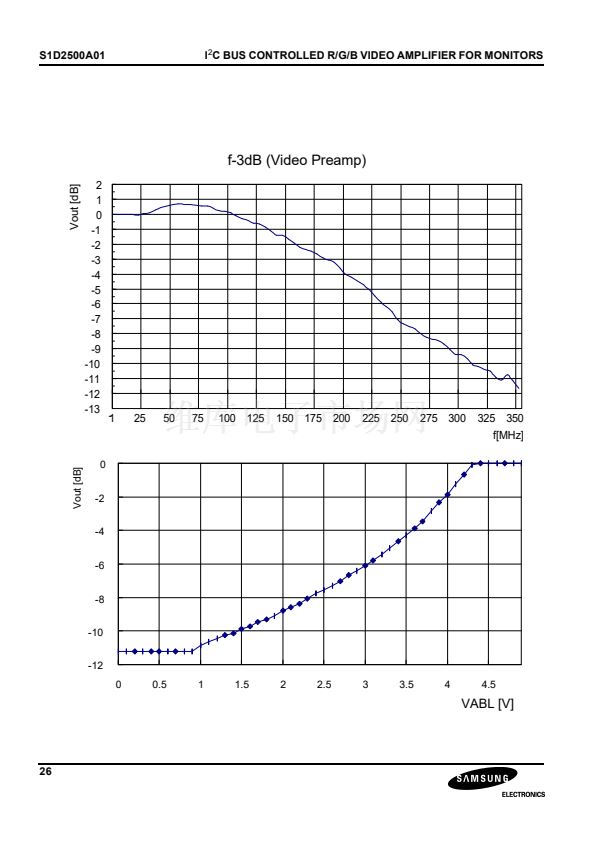

鈥?3 - Channel R/G/B Video Amplifier, 150MHz @f-3dB

鈥?I

2

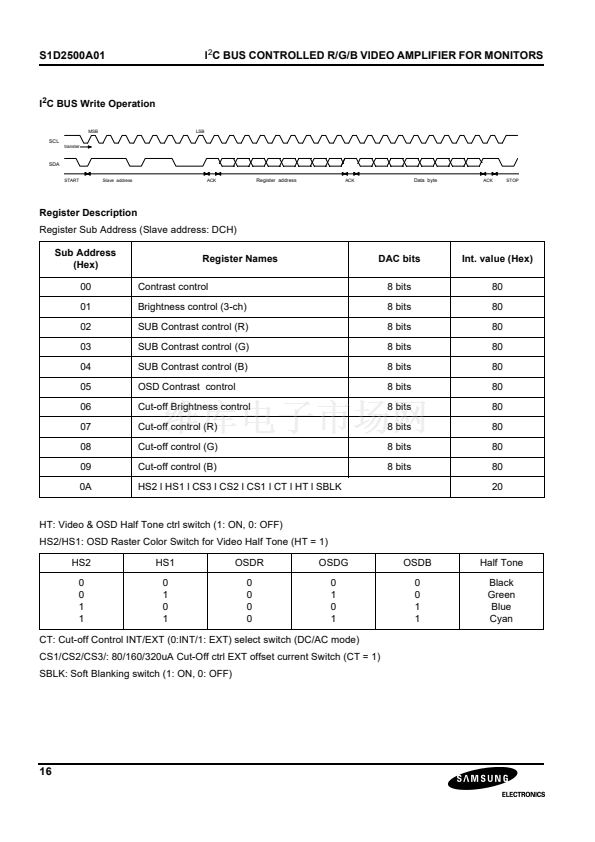

C Bus Control Items

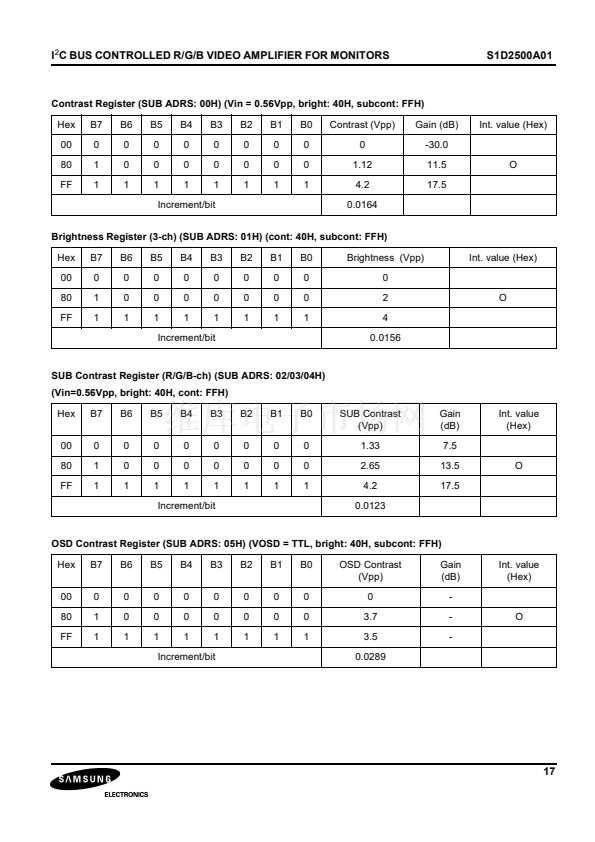

- Contrast Control

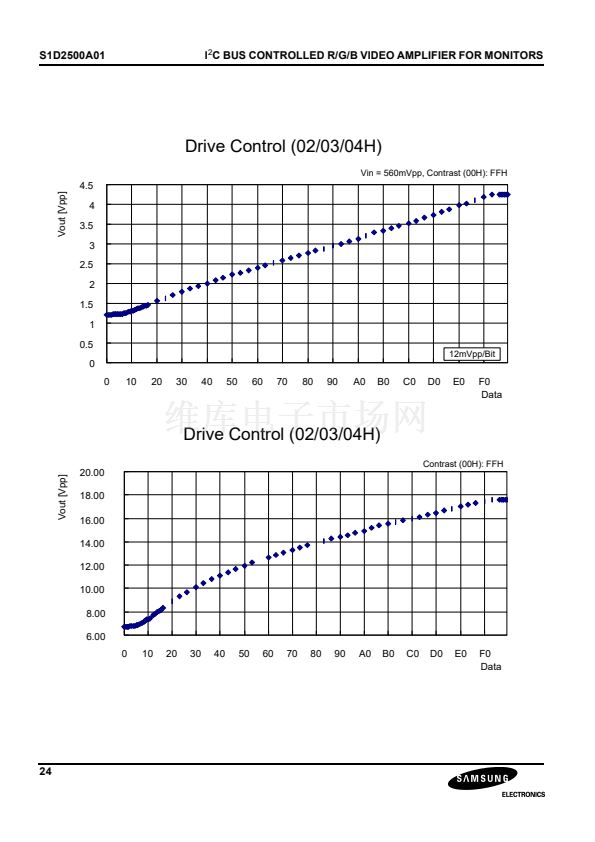

- SUB Contrast Control For Each Channel

- Brightness Control

- OSD Contrast Control

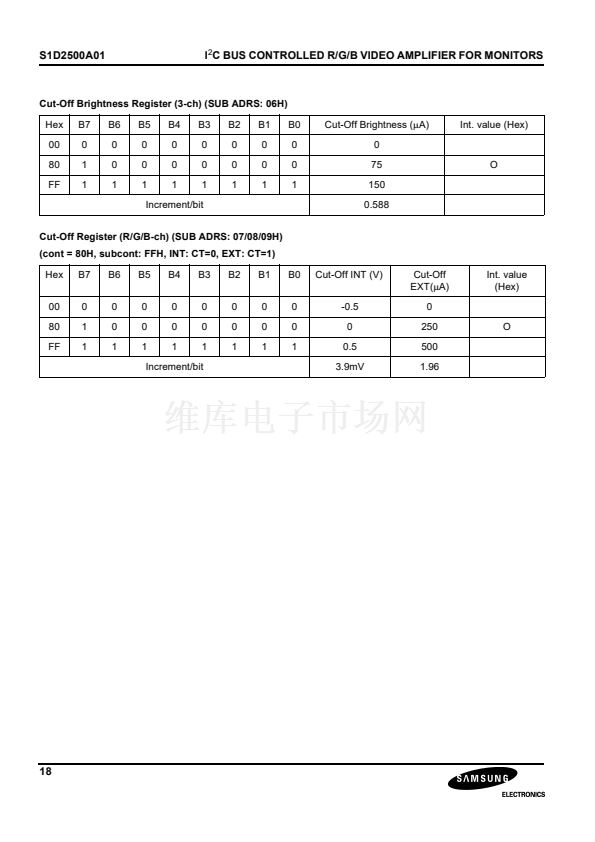

- Cut-off Brightness Control

- Cut-off Control For Each Channel

- Switch Registers for SBLK and Video Half Tone and

Cut-Off INT/EXT

鈥?SUB Contrast Control Range: -11dB

鈥?Capable of 7.0Vpp Output Swing Range

鈥?Video/OSD High Speed Switch

鈥?Clamp Gate With Anti OSD Sagging

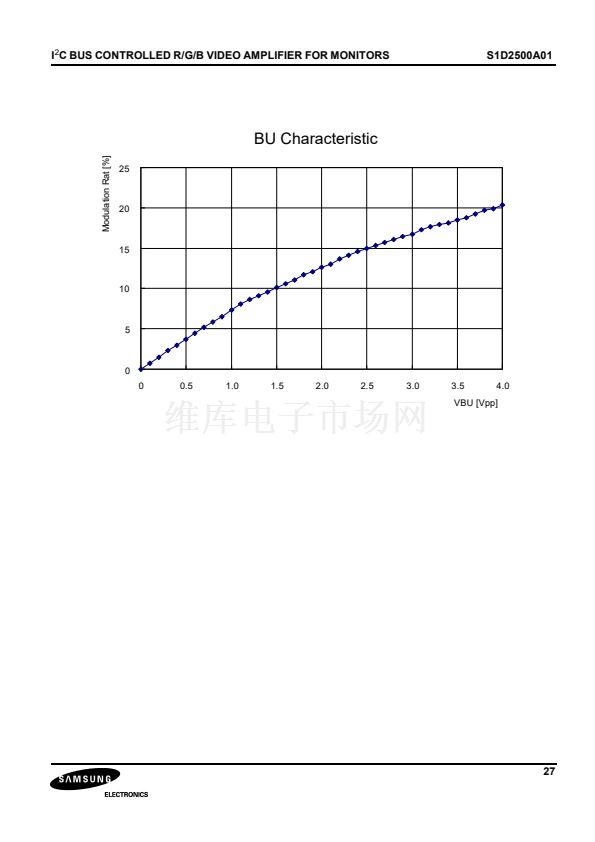

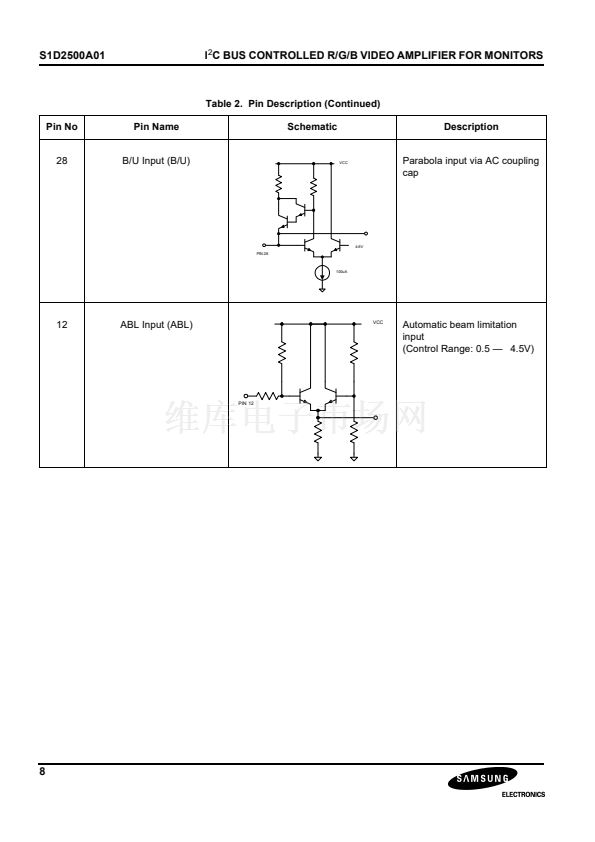

鈥?B/U (Brightness Uniformity) Interface

鈥?Video Input Clamp, BRT Clamp

鈥?Video & OSD Half Tone Function on OSD


(OSD Raster Selection by HS1, 2: 4 colors)

鈥?OSD Interface, OSD BLK

鈥?ABL

鈥?TTL R/G/B OSD Inputs, 80MHz bandwidth

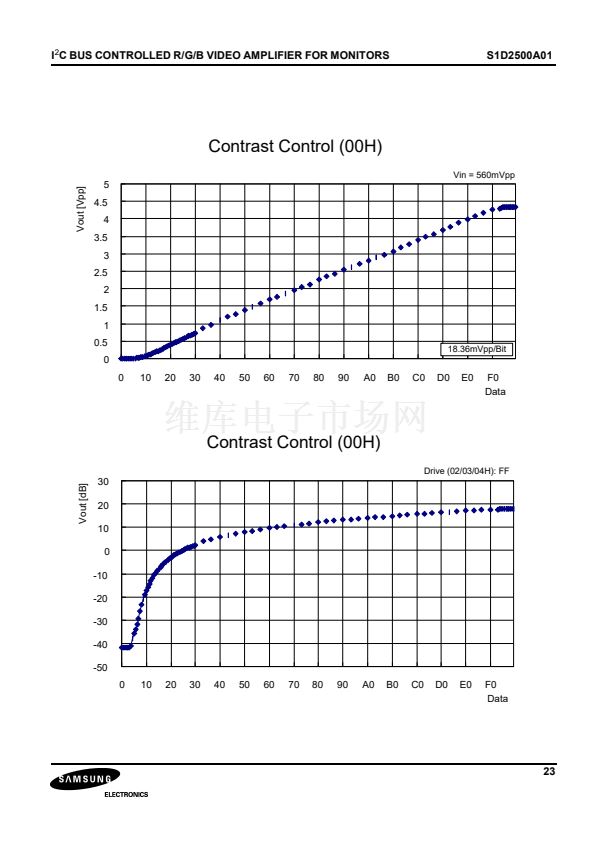

鈥?Contrast Control Range: -38dB

鈥?OSD Contrast Control Range: -38dB
