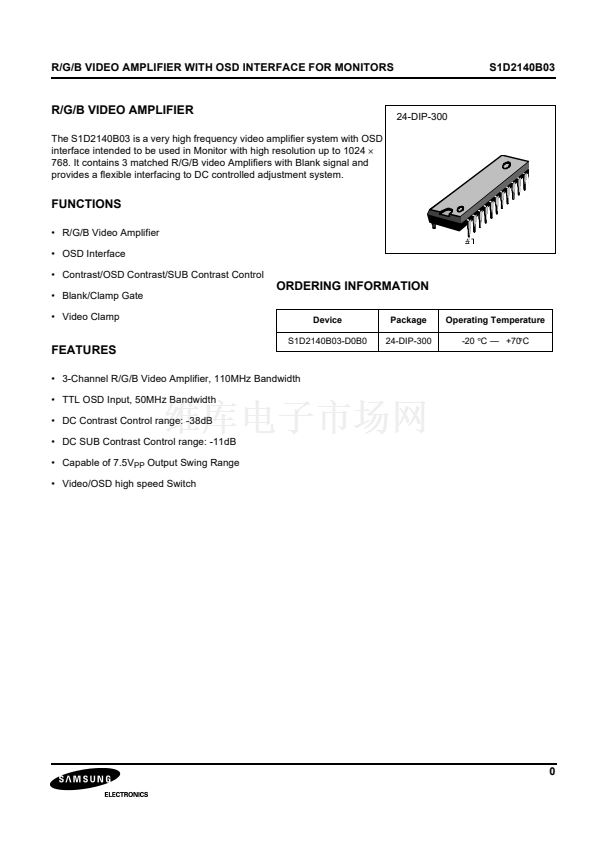

R/G/B VIDEO AMPLIFIER WITH OSD INTERFACE FOR MONITORS

S1D2140B03

R/G/B VIDEO AMPLIFIER

The S1D2140B03 is a very high frequency video amplifier system with OSD

interface intended to be used in Monitor with high resolution up to 1024

脳

768. It contains 3 matched R/G/B video Amplifiers with Blank signal and

provides a flexible interfacing to DC controlled adjustment system.

24-DIP-300

FUNCTIONS

鈥?R/G/B Video Amplifier

鈥?OSD Interface

鈥?Contrast/OSD Contrast/SUB Contrast Control

鈥?Blank/Clamp Gate

鈥?Video Clamp

ORDERING INFORMATION

Device

S1D2140B03-D0B0

Package

24-DIP-300

Operating Temperature

-20

擄C

鈥?+70

擄C

FEATURES

鈥?3-Channel R/G/B Video Amplifier, 110MHz Bandwidth

鈥?TTL OSD Input, 50MHz Bandwidth

鈥?DC Contrast Control range: -38dB

鈥?DC SUB Contrast Control range: -11dB

鈥?Capable of 7.5V

PP

Output Swing Range

鈥?Video/OSD high speed Switch

0
