S172156380 Datasheet

  • S172156380

  • 3頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Current and Voltage Controls
3 Phase-phase Max. and Min. Voltage Control
Types S 172, SYY 165
鈥?Monitoring relay and 3-phased measur-
ing relay for upper/lower phase-phase
voltages control
鈥?Measures if all 3 phase-phase voltages are within
set limits
鈥?Measures on own power supply
鈥?Operates irrespective of phase sequence
鈥?Upper and lower limits separately adjustable
鈥?Built-in adjustable timer function
鈥?Output: 10 A SPDT relay
鈥?Plug-in type module
鈥?S-housing
鈥?LED-indication for power supply and output ON
鈥?Power supply is the 3-phased measuring voltage
Product Description
3-phase monitoring plug-in
relay for separate upper and
lower voltage control. Often
used where the generated
electrical power is unstable
(or incorrect) in order to se-
cure the equipment. The
S 172 features built-in time
delay.
Ordering Key
Housing
Type
Output
Power supply
S 172 156 220
Type Selection
Plug
Circular
Circular
Output
SPDT
SPDT
Timer
Yes
No
Supply: 220 VAC
S 172 156 220
SYY 165 220
Supply: 380 VAC
S 172 156 380
SYY 165 380
Supply: 400 VAC
S 172 156 400
Supply: 415 VAC
S 172 156 415
SYY 165 415
Input Specifications
Input
Pins 5, 6 & 7
Measuring ranges
(VAC)
Power supply (phase-phase)
Arbitrary phase sequence
Output Specifications
Output
Rated insulation voltage
Contact ratings
(AgCdO)
Resistive loads
AC 1
DC 1
or
Small inductive loads AC 15
DC 13
Mechanical life
Electrical life
AC 1
Operating frequency
Dielectric strength
Dielectric voltage
Rated impulse withstand volt.
SPDT relay
250 VAC (rms)
(cont./elect.)
碌 (micro gap)
10 A/250 VAC (2500 VA)
1 A/250 VDC (250 W)
10 A/25 VDC (250 W)
2.5 A/230 VAC
5 A/24 VDC
鈮?/div>
30 x 10
6
operations
鈮?/div>
2.5 x 10
5
operations
(at max. load)
鈮?/div>
7200 operations/h
鈮?/div>
2 kVAC (rms) (cont./elect.)
4 kV (1.2/50 碌s) (cont./elect.)
(IEC 60664)
3 x 220 3 x 380 3 x 400
鹵 15%
鹵 15%
鹵 15%
Range
187-253 323-437 340-460
Upper level
231-253 399-437 420-460
Scale
105-115%105-115%105-115%
Lower level
187-209 323-361 340-480
Scale
85-95% 85-95% 85-95%
Power supply (phase-phase)
3 x 415
鹵 15%
Range
353-477
Upper level
436-477
Scale
105-115%
Lower level
353-394
Scale
85-95%
measures average value of
own supply, whereas scale
ranges are calibrated to
rms-value
Voltage interruption
鈮?/div>
40 ms
Dielectric voltage
None (supply/elect.)
Rated impulse withstand volt. 4 kV (1.2/50 碌s) (line/neutral,
line/line), direct connection
to electronics

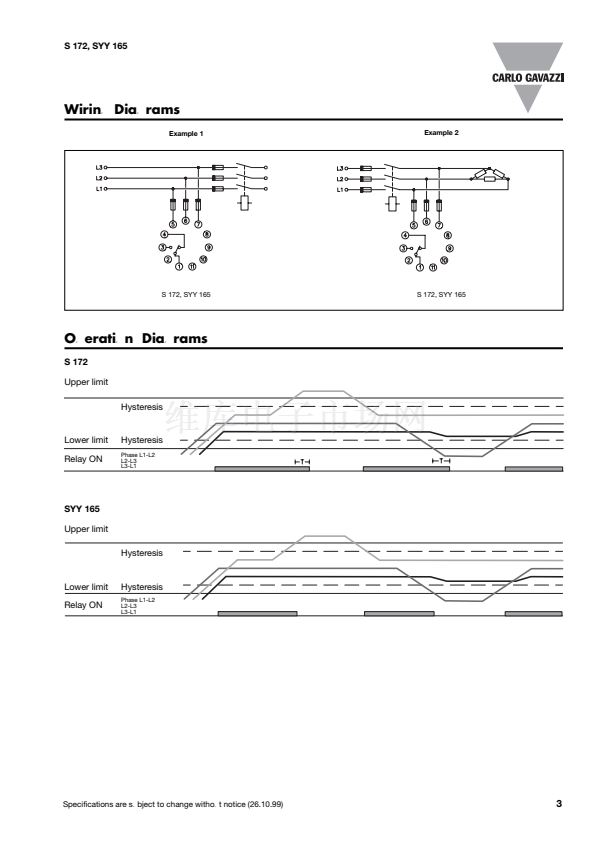

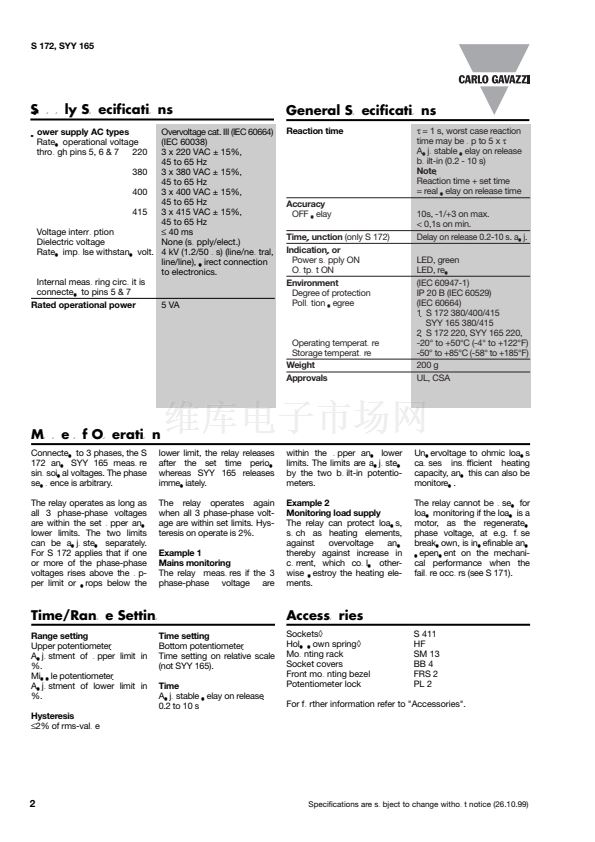

Specifications are subject to change without notice (26.10.99)
1
