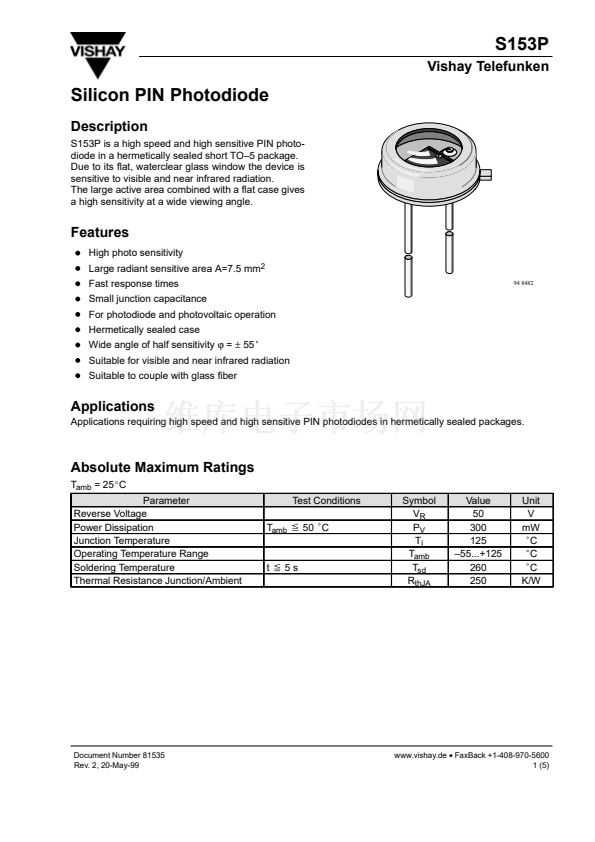

S153P
Vishay Telefunken
Silicon PIN Photodiode
Description
S153P is a high speed and high sensitive PIN photo-
diode in a hermetically sealed short TO鈥? package.
Due to its flat, waterclear glass window the device is
sensitive to visible and near infrared radiation.
The large active area combined with a flat case gives
a high sensitivity at a wide viewing angle.
Features
D
D
D
D
D
D
D
D
D
High photo sensitivity
Large radiant sensitive area A=7.5 mm
2
Fast response times
Small junction capacitance
For photodiode and photovoltaic operation
Hermetically sealed case
Wide angle of half sensitivity
蠒
=
鹵
55
擄
Suitable for visible and near infrared radiation
Suitable to couple with glass fiber
94 8482
Applications
Applications requiring high speed and high sensitive PIN photodiodes in hermetically sealed packages.
Absolute Maximum Ratings
T
amb
= 25
_
C
Parameter
Reverse Voltage
Power Dissipation
Junction Temperature
Operating Temperature Range
Soldering Temperature
Thermal Resistance Junction/Ambient
Test Conditions
T
amb
Symbol
V
R
P
V
T
j
T
amb
T
sd
R
thJA
Value
50
300
125
鈥?5...+125
260
250
Unit
V
mW
擄
C
擄
C
擄
C
K/W
x
50
擄
C
t
x
5s
Document Number 81535
Rev. 2, 20-May-99
www.vishay.de
鈥?/div>
FaxBack +1-408-970-5600
1 (5)
