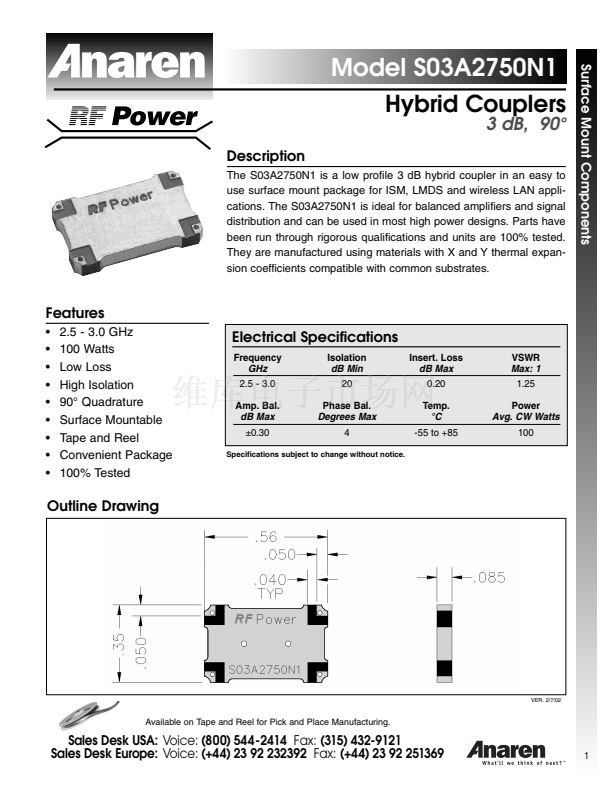

Model S03A2750N1
Hybrid Couplers
3 dB, 90擄
Description
The S03A2750N1 is a low profile 3 dB hybrid coupler in an easy to
use surface mount package for ISM, LMDS and wireless LAN appli-
cations. The S03A2750N1 is ideal for balanced amplifiers and signal
distribution and can be used in most high power designs. Parts have
been run through rigorous qualifications and units are 100% tested.
They are manufactured using materials with X and Y thermal expan-
sion coefficients compatible with common substrates.
Surface Mount Components
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
2.5 - 3.0 GHz
100 Watts
Low Loss
High Isolation
90擄 Quadrature
Surface Mountable
Tape and Reel
Convenient Package
100% Tested
Electrical Specifications
Frequency
GHz
2.5 - 3.0
Amp. Bal.
dB Max
鹵0.30
Isolation
dB Min
20
Phase Bal.
Degrees Max
4
Insert. Loss
dB Max
0.20
Temp.
擄C
-55 to +85
VSWR
Max: 1
1.25
Power
Avg. CW Watts
100
Specifications subject to change without notice.

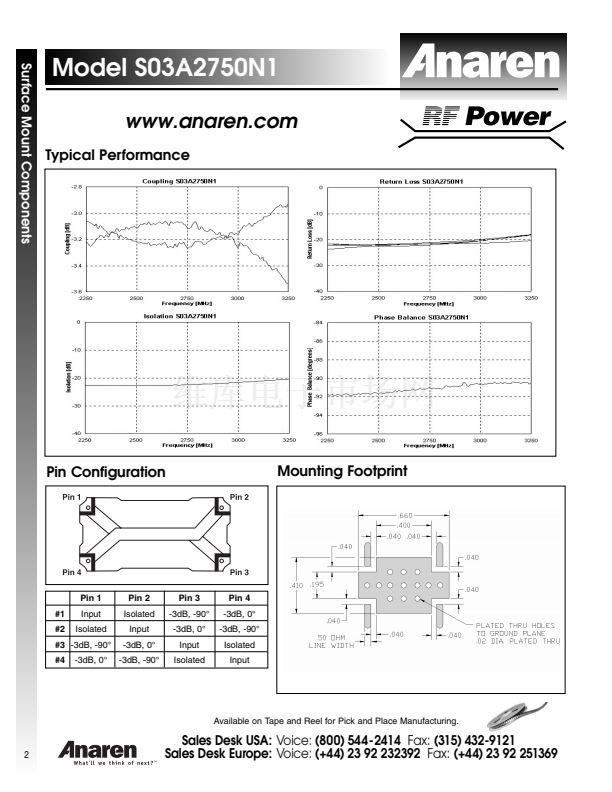

Outline Drawing
VER. 2/7/02
Available on Tape and Reel for Pick and Place Manufacturing.
Sales Desk USA:
Voice:
(800) 544-2414
Fax:
(315) 432-9121
Sales Desk Europe:
Voice:
(+44) 23 92 232392
Fax:
(+44) 23 92 251369
