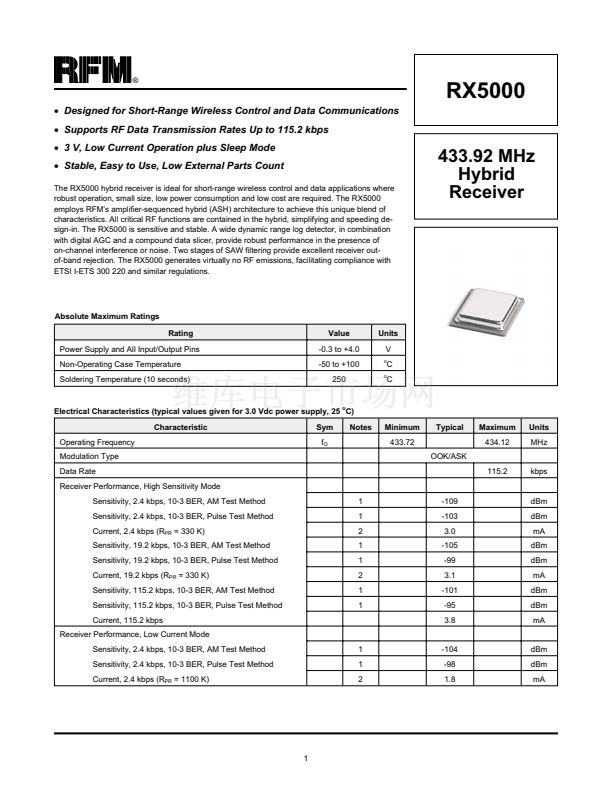

RX5000 Datasheet

  • RX5000

  • 433.92 MHz Hybrid Receiver

  • 105.66KB

  • 11頁

  • RFM   RFM

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
路
Designed for Short-Range Wireless Control and Data Communications
路
Supports RF Data Transmission Rates Up to 115.2 kbps
路
3 V, Low Current Operation plus Sleep Mode
路
Stable, Easy to Use, Low External Parts Count
The RX5000 hybrid receiver is ideal for short-range wireless control and data applications where
robust operation, small size, low power consumption and low cost are required. The RX5000
employs RFM鈥檚 amplifier-sequenced hybrid (ASH) architecture to achieve this unique blend of
characteristics. All critical RF functions are contained in the hybrid, simplifying and speeding de-
sign-in. The RX5000 is sensitive and stable. A wide dynamic range log detector, in combination
with digital AGC and a compound data slicer, provide robust performance in the presence of
on-channel interference or noise. Two stages of SAW filtering provide excellent receiver out-
of-band rejection. The RX5000 generates virtually no RF emissions, facilitating compliance with
ETSI I-ETS 300 220 and similar regulations.
RX5000
433.92 MHz
Hybrid
Receiver
Absolute Maximum Ratings
Rating
Power Supply and All Input/Output Pins
Non-Operating Case Temperature
Soldering Temperature (10 seconds)
Value
-0.3 to +4.0
-50 to +100
250
Units
V
o
o
C
C

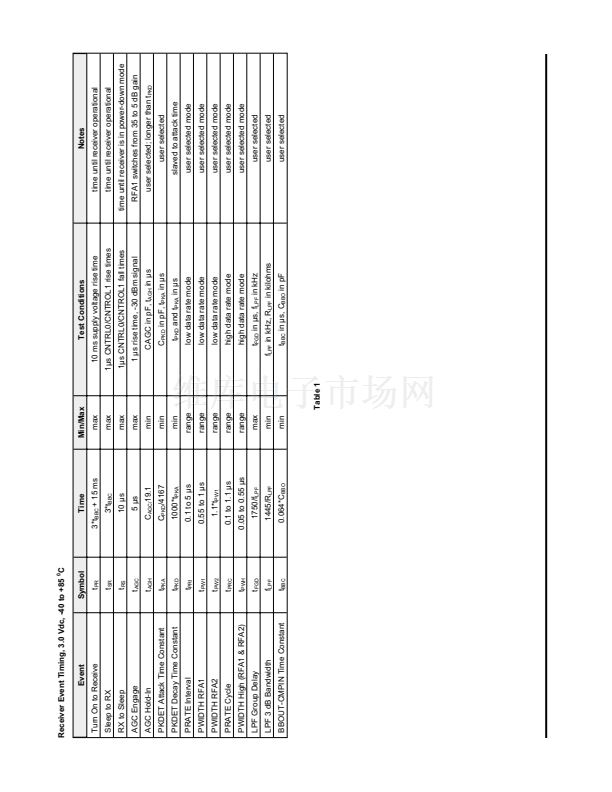

Electrical Characteristics (typical values given for 3.0 Vdc power supply, 25
o
C)
Characteristic
Operating Frequency
Modulation Type
Data Rate
Receiver Performance, High Sensitivity Mode
Sensitivity, 2.4 kbps, 10-3 BER, AM Test Method
Sensitivity, 2.4 kbps, 10-3 BER, Pulse Test Method
Current, 2.4 kbps (R
PR
= 330 K)
Sensitivity, 19.2 kbps, 10-3 BER, AM Test Method
Sensitivity, 19.2 kbps, 10-3 BER, Pulse Test Method
Current, 19.2 kbps (R
PR
= 330 K)
Sensitivity, 115.2 kbps, 10-3 BER, AM Test Method
Sensitivity, 115.2 kbps, 10-3 BER, Pulse Test Method
Current, 115.2 kbps
Receiver Performance, Low Current Mode
Sensitivity, 2.4 kbps, 10-3 BER, AM Test Method
Sensitivity, 2.4 kbps, 10-3 BER, Pulse Test Method
Current, 2.4 kbps (R
PR
= 1100 K)
1
1
2
-104
-98
1.8
dBm
dBm
mA
1
1
2
1
1
2
1
1
-109
-103
3.0
-105
-99
3.1
-101
-95
3.8
dBm
dBm
mA
dBm
dBm
mA
dBm
dBm
mA
Sym
f
O
Notes
Minimum
433.72
OOK/ASK
115.2
kbps
Typical
Maximum
434.12
Units
MHz
1

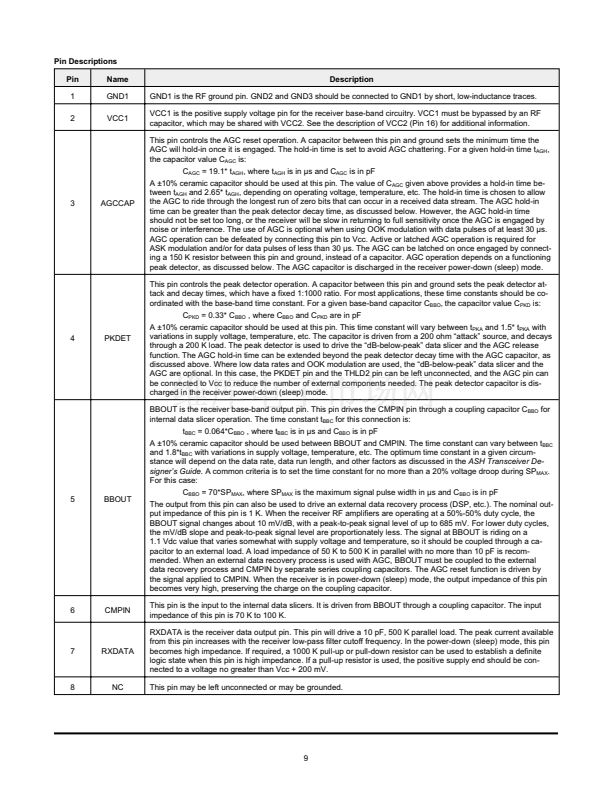

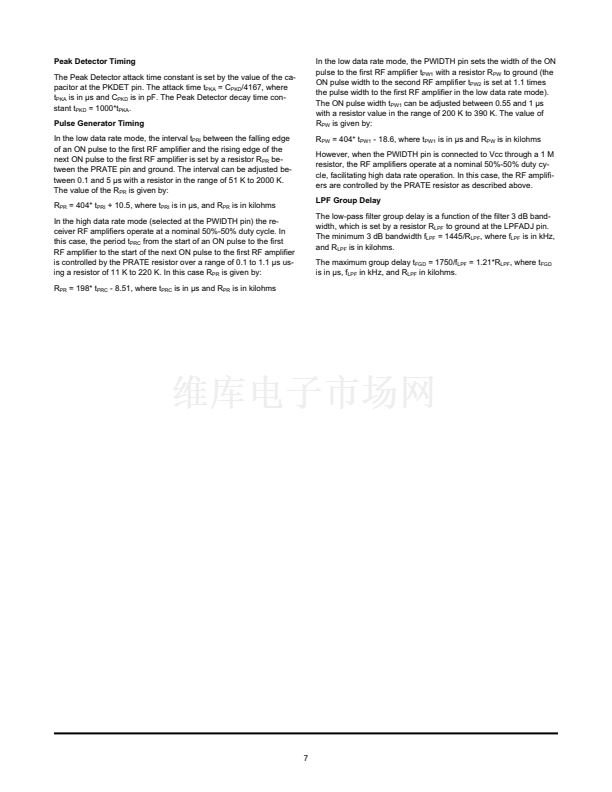

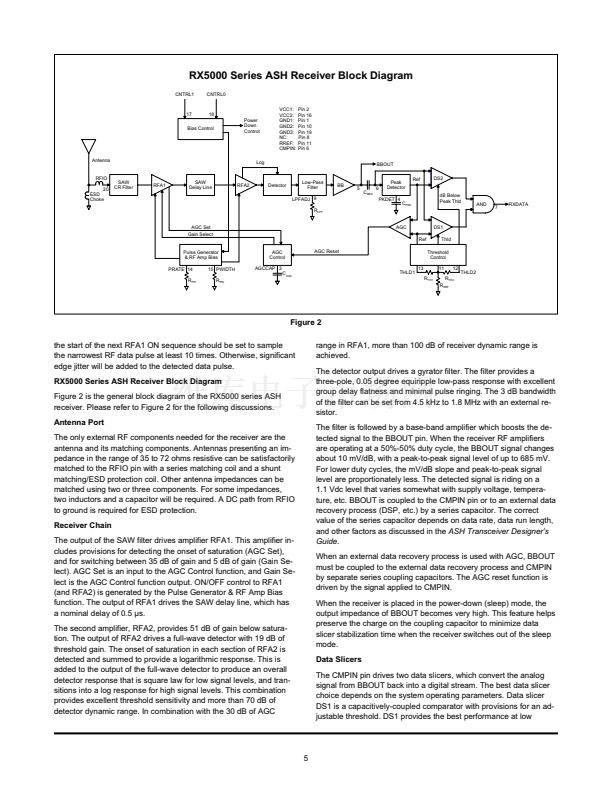

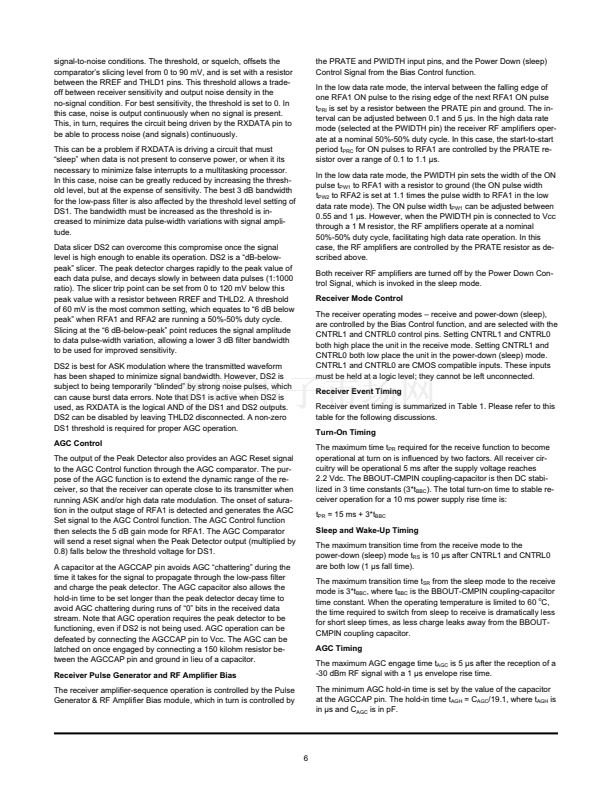

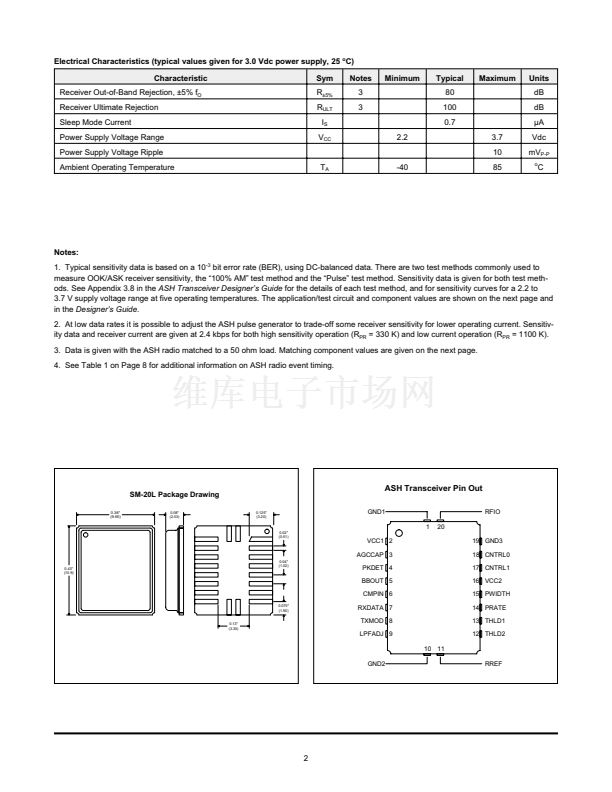

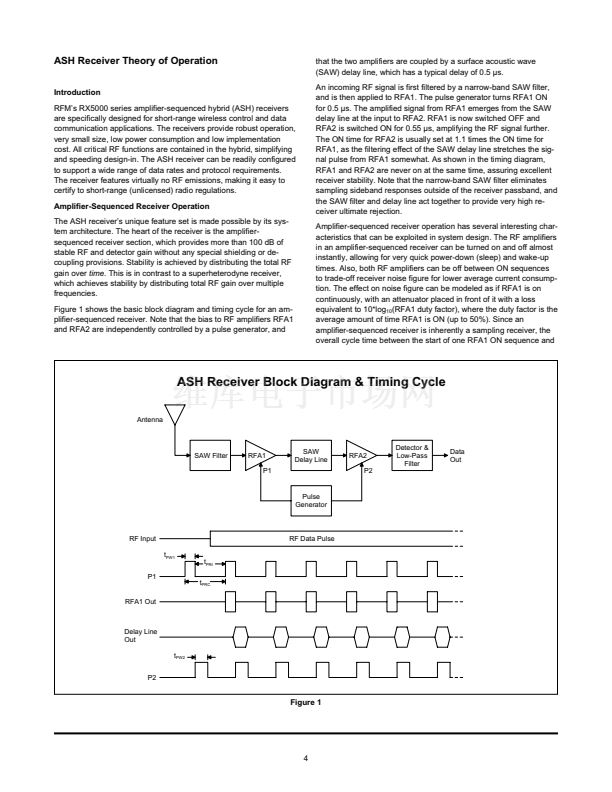

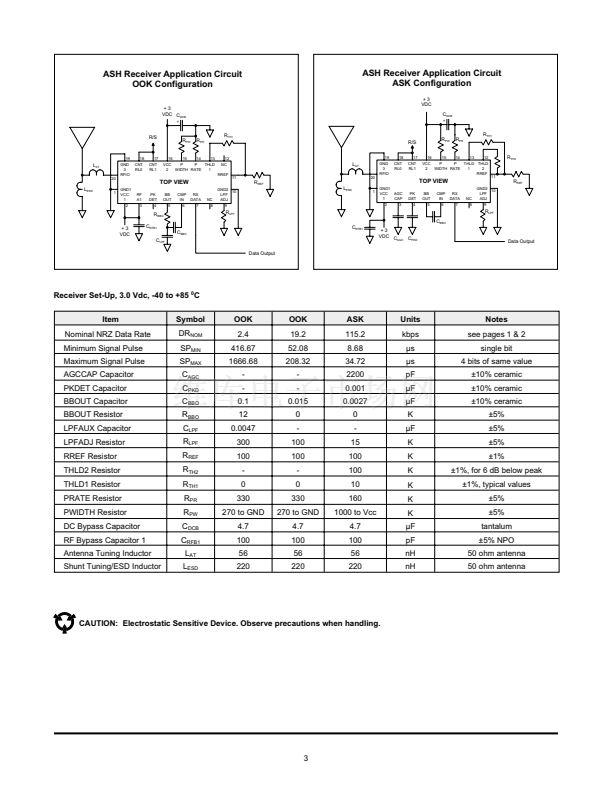

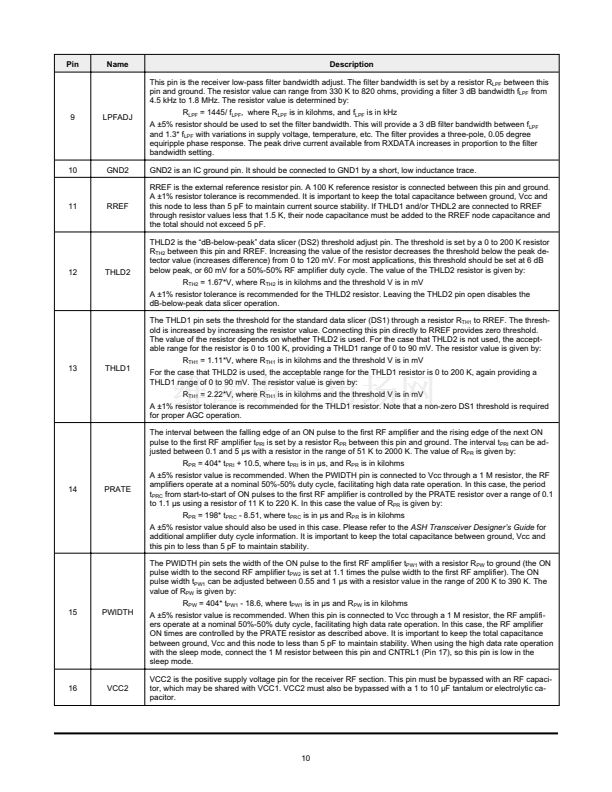

RX5000 產品屬性

  • 1

  • RF/IF 和 RFID

  • RF 接收器

  • -

  • 433.92MHz

  • -109dBm

  • 115.2kbps

  • ASK，OOK

  • 通用數據傳輸

  • 3.8mA

  • PCB，表面貼裝

  • -

  • PCB，表面貼裝

  • -

  • 2.2 V ~ 3.7 V

  • -40°C ~ 85°C

  • 20-SMD 模塊，無引線

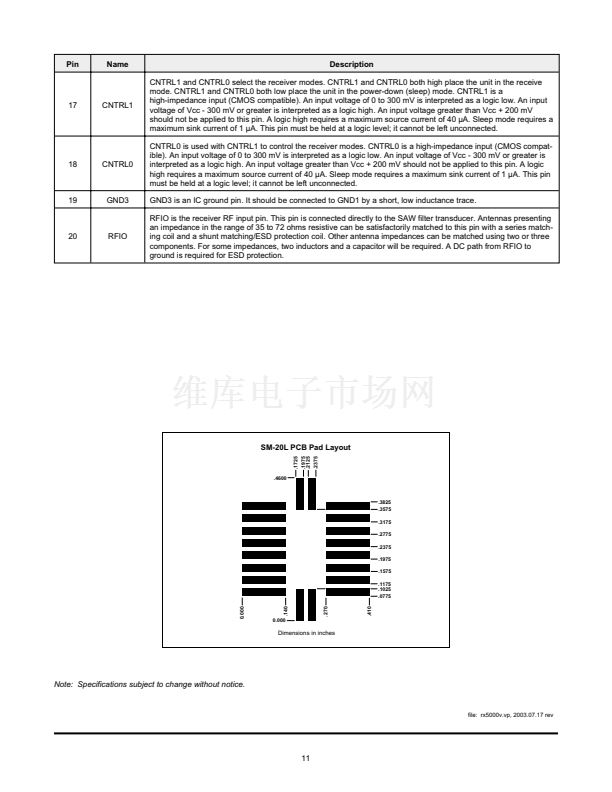

  • SM-20L

  • Digi-Reel®

  • 583-1074-6
