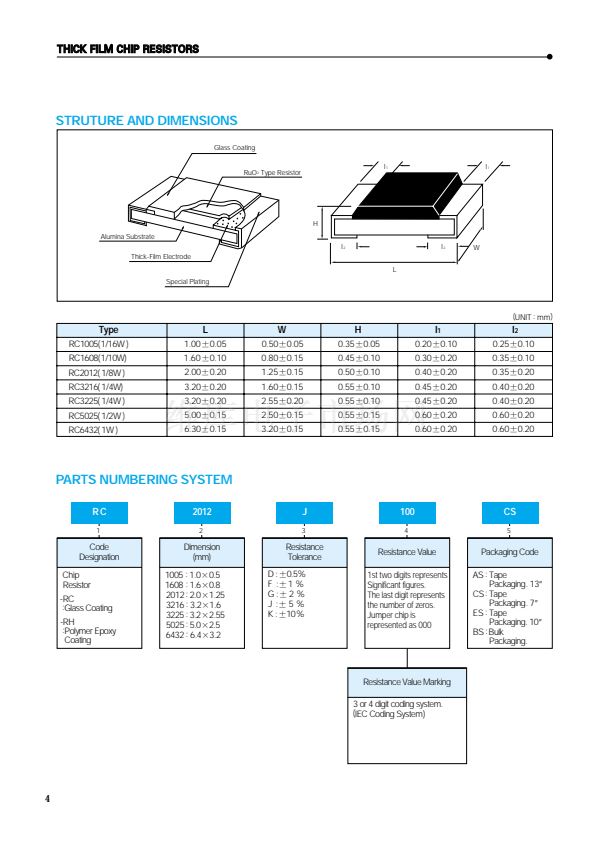

THICK FILM CHIP RESISTORS

STRUTURE AND DIMENSIONS

Glass Coating

RuO

Type Resistor

Alumina Substrate

Thick-Film Electrode

Special Plating

(UNIT : mm )

Type

RC1005(1/16W )

RC1608(1/10W)

RC2012( 1/8W )

RC3216( 1/4W)

RC3225( 1/4W )

RC5025( 1/2W )

RC6432( 1W )

1.00鹵0.05

1.60鹵0.10

2.00鹵0.20

3.20鹵0.20

5.00鹵0.15

6.30鹵0.15

0.50鹵0.05

0.80鹵0.15

1.25鹵0.15

1.60鹵0.15

2.55鹵0.20

2.50鹵0.15

3.20鹵0.15

0.35鹵0.05

0.45鹵0.10

0.50鹵0.10

0.55鹵0.10

0.55鹵0.15

0.20鹵0.10

0.30鹵0.20

0.40鹵0.20

0.45鹵0.20

0.60鹵0.20

0.25鹵0.10

0.35鹵0.10

0.35鹵0.20

0.40鹵0.20

0.60鹵0.20

PARTS NUMBERING SYSTEM

2012

100

Code

Designation

Chip

Resistor

-RC

:Glass Coating

-RH

:Polymer Epoxy

Coating

Dimension

(mm)

1005 : 1.0脳0.5

1608 : 1.6脳0.8

2012 : 2.0脳1.25

3216 : 3.2脳1.6

3225 : 3.2脳2.55

5025 : 5.0脳2.5

6432 : 6.4脳3.2

Resistance

Tolerance

D :

鹵0.5%

F :

鹵1

G :

鹵

2 %

J :

鹵

5 %

K :

鹵10%

Resistance Value

1st two digits represents

Significant figures.

The last digit represents

the number of zeros.

Jumper chip is

represented as 000

Packaging Code

AS : Tape

Packaging. 13鈥?/div>

: Tape

Packaging. 7鈥?/div>

ES : Tape

Packaging. 10鈥?/div>

: Bulk

Packaging.

Resistance Value Marking

3 or 4 digit coding system.

(IEC Coding System)
