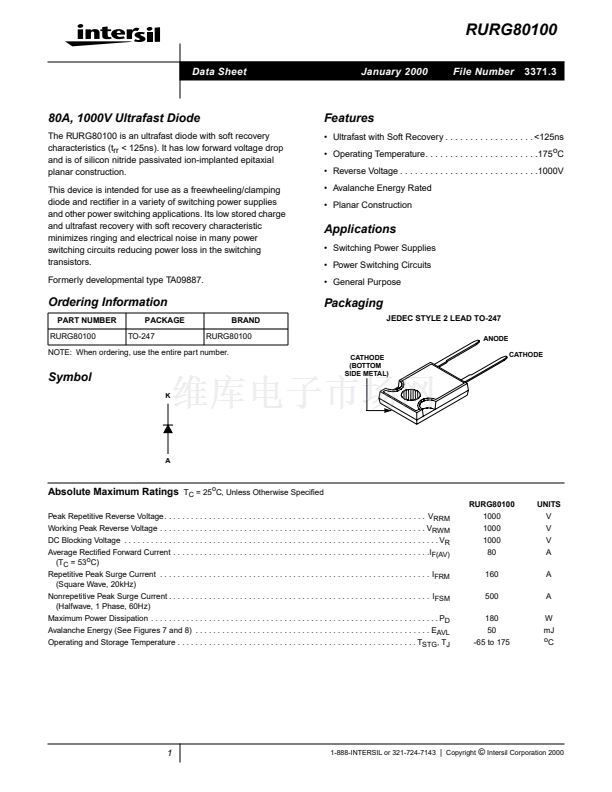

RURG80100
Data Sheet
January 2000
File Number
3371.3
80A, 1000V Ultrafast Diode
The RURG80100 is an ultrafast diode with soft recovery
characteristics (t
rr
< 125ns). It has low forward voltage drop
and is of silicon nitride passivated ion-implanted epitaxial
planar construction.
This device is intended for use as a freewheeling/clamping
diode and recti鏗乪r in a variety of switching power supplies
and other power switching applications. Its low stored charge
and ultrafast recovery with soft recovery characteristic
minimizes ringing and electrical noise in many power
switching circuits reducing power loss in the switching
transistors.
Formerly developmental type TA09887.
Features
鈥?Ultrafast with Soft Recovery . . . . . . . . . . . . . . . . . . <125ns
鈥?Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175
o
C
鈥?Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .1000V
鈥?Avalanche Energy Rated
鈥?Planar Construction
Applications
鈥?Switching Power Supplies
鈥?Power Switching Circuits
鈥?General Purpose
Ordering Information
PART NUMBER
RURG80100
PACKAGE
TO-247
BRAND
RURG80100
Packaging
JEDEC STYLE 2 LEAD TO-247
ANODE
CATHODE
(BOTTOM
SIDE METAL)
CATHODE
NOTE: When ordering, use the entire part number.
Symbol
K
A
Absolute Maximum Ratings
T
C
= 25
o
C, Unless Otherwise Speci鏗乪d
RURG80100
UNITS
V
V
V
A
A
A
W
mJ
o
C
1000
1000
1000
80
160
500
180
50
-65 to 175
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RRM
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RWM
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
Average Recti鏗乪d Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
F(AV)
(T
C
= 53
o
C)
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FSM
(Halfwave, 1 Phase, 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D
Avalanche Energy (See Figures 7 and 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E
AVL
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
STG
, T
J
1
1-888-INTERSIL or 321-724-7143
|
Copyright
漏
Intersil Corporation 2000
