RT9163-35CL Datasheet

  • RT9163-35CL

  • 500MA LOW DROPOUT POSITIVE VOLTAGE REGULATOR

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

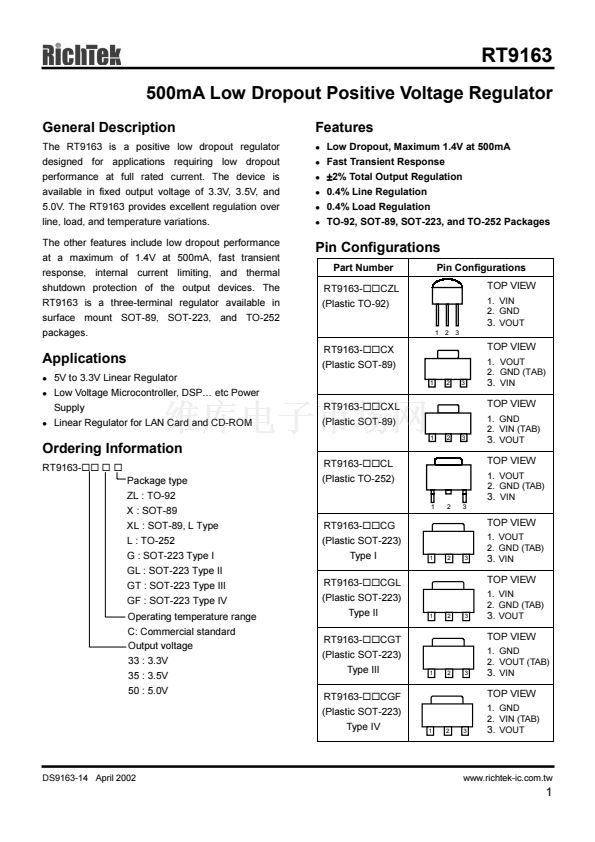

RT9163
500mA Low Dropout Positive Voltage Regulator
General Description
The RT9163 is a positive low dropout regulator
designed for applications requiring low dropout
performance at full rated current. The device is
available in fixed output voltage of 3.3V, 3.5V, and
5.0V. The RT9163 provides excellent regulation over
line, load, and temperature variations.
The other features include low dropout performance
at a maximum of 1.4V at 500mA, fast transient
response, internal current limiting, and thermal
shutdown protection of the output devices. The
RT9163 is a three-terminal regulator available in
surface mount SOT-89, SOT-223, and TO-252
packages.
1 2
3
Features
Low Dropout, Maximum 1.4V at 500mA
Fast Transient Response
鹵
2% Total Output Regulation
0.4% Line Regulation
0.4% Load Regulation
TO-92, SOT-89, SOT-223, and TO-252 Packages
Pin Configurations
Part Number
RT9163-
CZL
(Plastic TO-92)
Pin Configurations
TOP VIEW
1. VIN
2. GND
3.
VOUT
Applications
5V to 3.3V Linear Regulator
Low Voltage Microcontroller, DSP鈥?etc Power
Supply
Linear Regulator for LAN Card and CD-ROM
RT9163-
CX
1
2
3
TOP VIEW
1. VOUT
2. GND (TAB)
3.
VIN

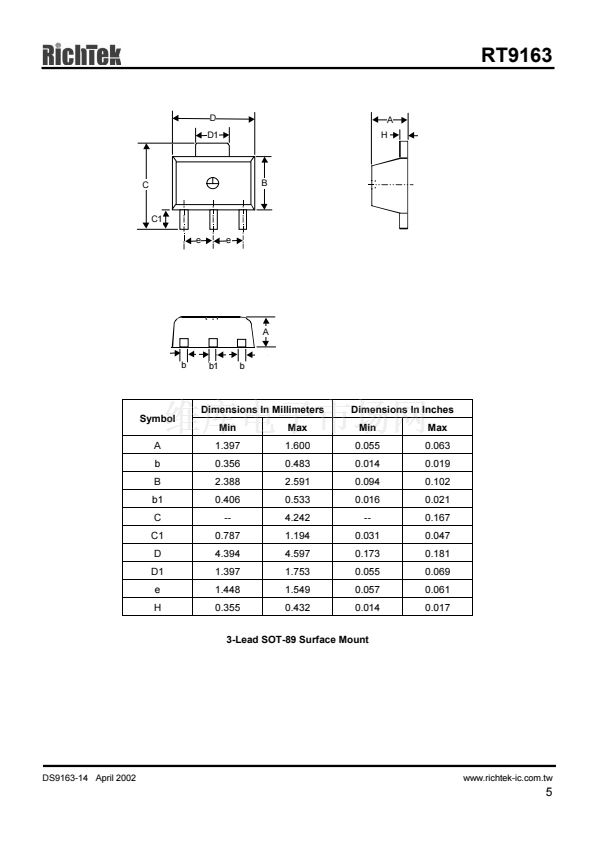

(Plastic SOT-89)
RT9163-
CXL
1
2
3
TOP VIEW
1. GND
2. VIN (TAB)
3.
VOUT
(Plastic SOT-89)
Ordering Information
RT9163-
Package type
ZL : TO-92
X : SOT-89
XL : SOT-89, L Type
L : TO-252
G : SOT-223 Type I
GL : SOT-223 Type II
GT : SOT-223 Type III
GF : SOT-223 Type IV
Operating temperature range
C: Commercial standard
Output voltage
33 : 3.3V
35 : 3.5V
50 : 5.0V
RT9163-
Type II
RT9163-
Type III
RT9163-
CGF
CGT
CGL

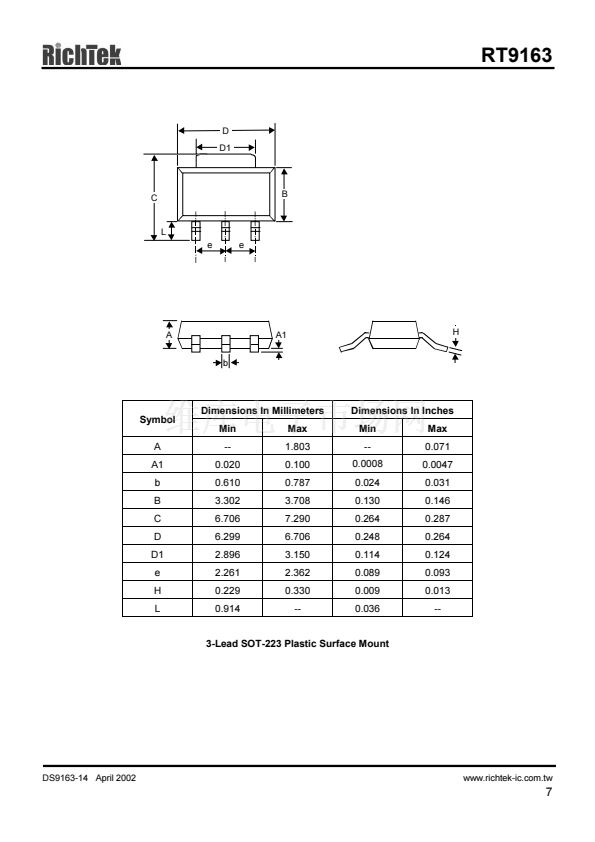

(Plastic SOT-223)
RT9163-
Type I
CG
(Plastic SOT-223)
RT9163-
CL

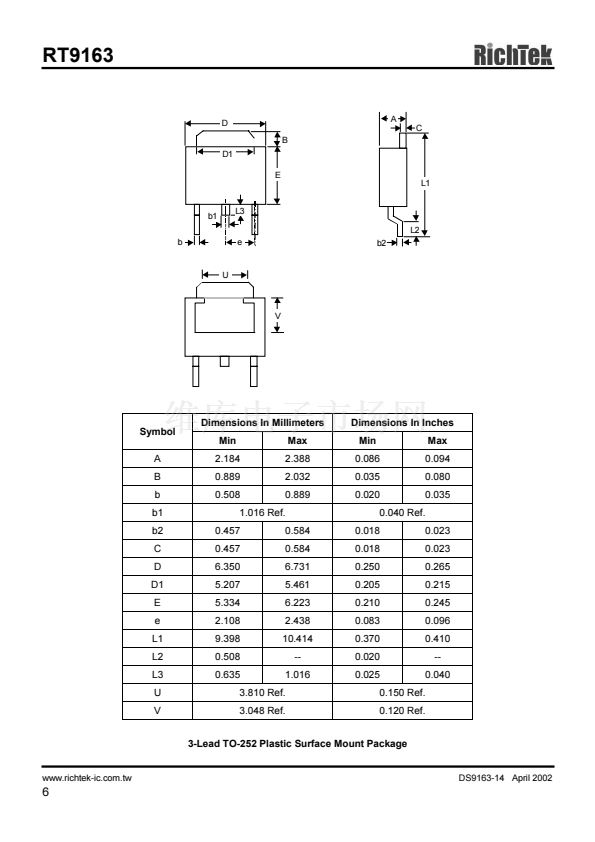

(Plastic TO-252)
TOP VIEW
1. VOUT
2. GND (TAB)
3.
VIN
1
2
3
TOP VIEW
1. VOUT
2. GND (TAB)
3.
VIN
1
2
3
TOP VIEW
1. VIN
2. GND (TAB)
3.
VOUT
1
2
3
TOP VIEW
1. GND
2. VOUT (TAB)
3.
VIN
(Plastic SOT-223)
1
2
3
TOP VIEW
1. GND
2. VIN (TAB)
3.
VOUT
(Plastic SOT-223)
Type IV
1
2
3
DS9163-14 April 2002
www.richtek-ic.com.tw
1
