SLIM, SPACE-SAVING
RELAY TERMINAL FOR
4-POINT OUTPUT
FEATURES
鈥?33 mm
1.299 inchwide
space-saving
type, with four independent points on
a base measuring 33
脳
67 mm
1.299
脳
2.638 inch.
Contributes to con-
trol panel and device downsizing.
鈥?Equipped with PA relays with high-
sensitivity twin contacts and Au-cald-
ding.
Equipped with 5 mm
.197 inch
wide PA
relays. The PA relays feature high sensi-
tivity (12 V type: 120 mW, 24 V type: 180
mW) and twin contacts with Au-cladding,
which combine to ensure high reliability
even with minute loads.
RT-3 UNIT
RELAY
(PA Relay type)
鈥?Can be used mounted on a DIN rail or
mounted directly (by screw).
鈥?Equipped with an LED display to al-
low easy con鏗乺mation of operation.
鈥?Incorporates a surge absorber.
Incorporates an absorber circuit for coil
surges. This protects the circuitry of the
controller and prevents operation errors.
鈥?Relay installation and removal can be
easily accomplished with the removal
key accessory.
鈥?Includes a cover as standard equip-
ment for increased safety.
TYPES
Type
PA relay
Rated input voltage
12 V DC
24 V DC
Part No.
RT3S-12V
RT3S-24V
Packing quantity
Inner carton
10 pcs.
Outer carton
100 pcs.
Notes: 1. Cannot be equipped with Power PhotoMOS standard type relays. However, equipping with voltage sensitive type of Power PhotoMOS relays
(AQZ
rrr
D) is possible.
2. 5 V DC units are also available. Please consult us.
RATINGS
1. Input ratings (per PA relay)
Part No.
RT3S-12V
RT3S-24V
Rated input voltage
12 V DC
24 V DC
Input current (at rated input voltage, 20
擄
C
68
擄
F)
(approx.)
11.5 mA (Relay 10 mA + LED 1.5 mA)
10.5 mA (Relay 7.5 mA + LED 3 mA)
Allowable variation of rated input voltage
(鈥?0 to +55
擄
C
鈥? to +131
擄
F)
12 V DC
鹵
10%
24 V DC
鹵
10%
10% Coil resistance
(
鹵
10%)
(at 20
擄
C
68
擄
F)
1,200
鈩?鹵
10%
3,200
鈩?鹵
10%

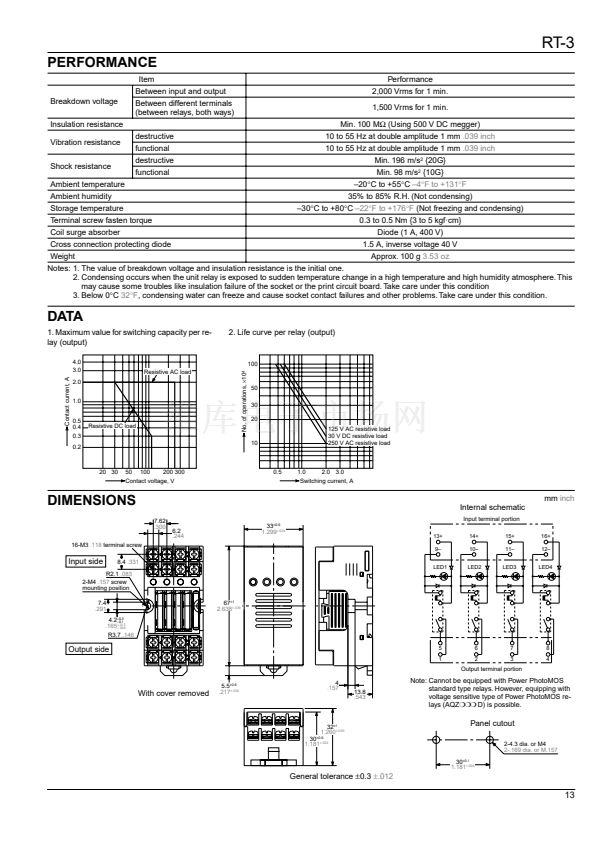

Performance
2 A 250 V AC, 2 A 30 V DC
500 VA (AC), 60 W (DC)
250 V AC, 30 V DC
2A
100 mV 100
碌
A
10
5
: 2 A 250V AC 10
5
: 2 A 30V DC
3
脳
10
5
: 1 A 250V AC
3
脳
10
5
: 1 A 30V DC
2
脳
10
7
2. Relay coil speci鏗乧ations (per PA relay) (ref. value)
Relay part No.
PA1a-12V
PA1a-24V
Rated coil voltage
12 V DC
24 V DC
Pick-up voltage
(at 20
擄
C
68
擄
F)
(Initial)
less than 70%
of nominal voltage
Drop-out voltage
(at 20
擄
C
68
擄
F)
(Initial)
more than 5%
of nominal voltage
Rated comsumption
power
120 mW
180 mA
3. Output ratings (per PA relay)
Speci鏗乧ation
Item
Rated control capacity (resistive load)
Maximum allowable contact power (resistive load)
Maximum allowable contact voltage
Maximum allowable contact current
Minimum load (ref. value)
Expected life
(Min. operations)
Electrical (resistive load)
Mechanical (at 180 cpm)
Contact rating
12
1
2
3
