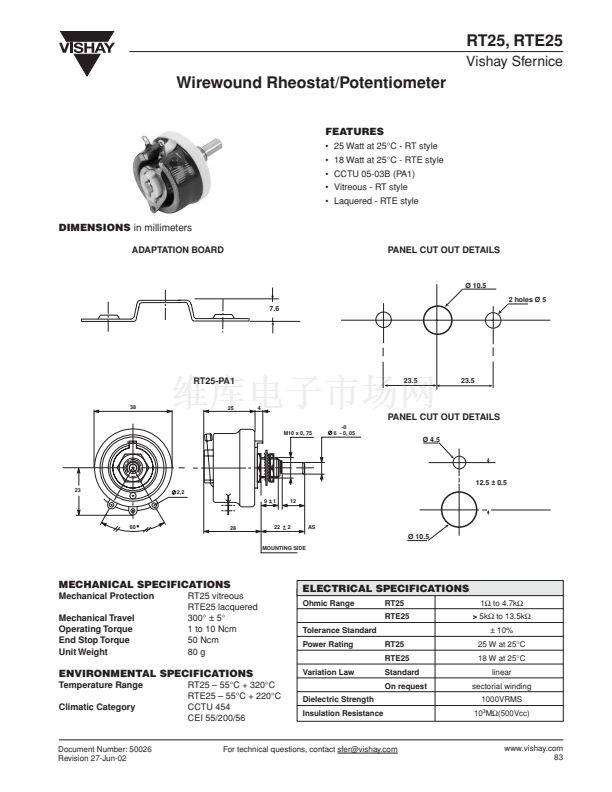

RT25, RTE25
Vishay Sfernice
Wirewound Rheostat/Potentiometer
FEATURES
鈥?25 Watt at 25擄C - RT style
鈥?18 Watt at 25擄C - RTE style
鈥?CCTU 05-03B (PA1)
鈥?Vitreous - RT style
鈥?Laquered - RTE style
DIMENSIONS
in millimeters
ADAPTATION BOARD
PANEL CUT OUT DETAILS
脴 10.5
2 holes 脴 5
7.6
RT25-PA1
38
25
4
23.5
23.5
PANEL CUT OUT DETAILS
M10 x 0, 75
-0
6 - 0, 05
脴 4.5
12.5 鹵 0.5
23
2,2
9 +1
12
60
28
22 + 2
AS
脴 10.5
MOUNTING SIDE
MECHANICAL SPECIFICATIONS
Mechanical Protection
Mechanical Travel
Operating Torque
End Stop Torque
Unit Weight
RT25 vitreous
RTE25 lacquered
300擄 鹵 5擄
1 to 10 Ncm
50 Ncm
80 g
ELECTRICAL SPECIFICATIONS
Ohmic Range
RT25
RTE25
Tolerance Standard
Power Rating
RT25
RTE25
Variation Law
Standard
On request
Dielectric Strength
Insulation Resistance
1鈩?to 4.7k鈩?/div>
>
5k鈩?to 13.5k鈩?/div>
鹵 10%
25 W at 25擄C
18 W at 25擄C
linear
sectorial winding
1000VRMS
10
3
M鈩?500Vcc)
ENVIRONMENTAL SPECIFICATIONS
Temperature Range
Climatic Category
RT25 鈥?55擄C + 320擄C
RTE25 鈥?55擄C + 220擄C
CCTU 454
CEI 55/200/56
Document Number: 50026
Revision 27-Jun-02
For technical questions, contact sfer@vishay.com
www.vishay.com
83
1
2
