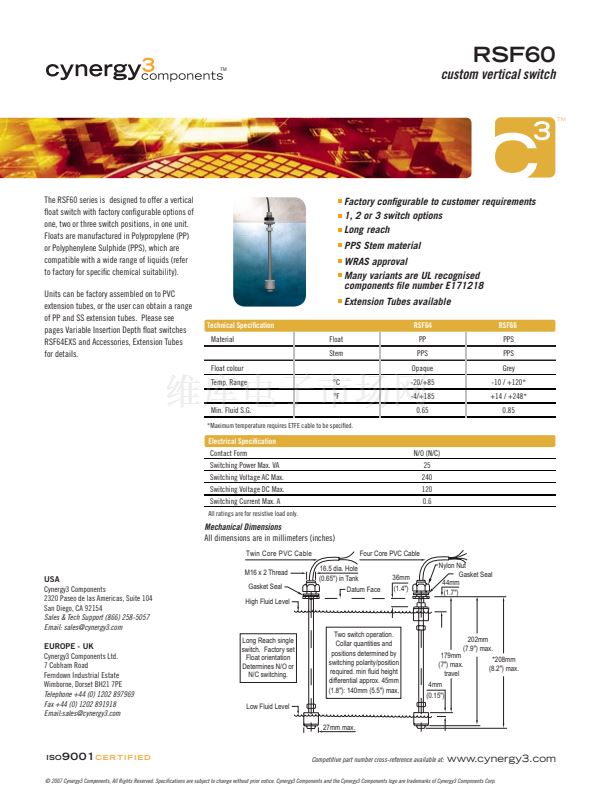

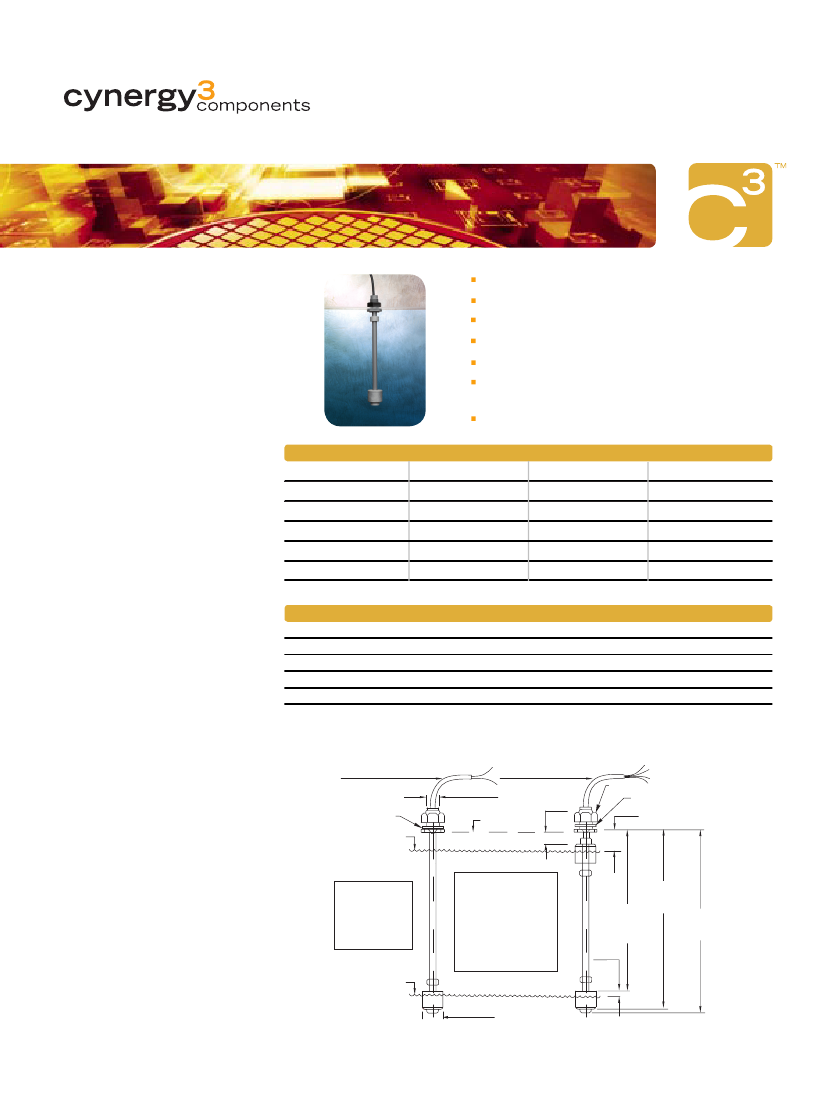

custom vertical switch
RSF60
The RSF60 series is designed to offer a vertical
float switch with factory configurable options of
one, two or three switch positions, in one unit.
Floats are manufactured in Polypropylene (PP)
or Polyphenylene Sulphide (PPS), which are
compatible with a wide range of liquids (refer
to factory for specific chemical suitability).
Units can be factory assembled on to PVC
extension tubes, or the user can obtain a range
of PP and SS extension tubes. Please see
pages Variable Insertion Depth float switches
RSF64EXS and Accessories, Extension Tubes
for details.
Factory configurable to customer requirements
1, 2 or 3 switch options
Long reach
PPS Stem material
WRAS approval
Many variants are UL recognised
components file number E171218
Extension Tubes available
Technical Specification
Material
Float colour
Temp. Range
Min. Fluid S.G.
*Maximum temperature requires ETFE cable to be specified.
RSF64
Float
Stem
擄C
擄F
PP
PPS
Opaque
-20/+85
-4/+185
0.65
RSF66
PPS
PPS
Grey
-10 / +120*
+14 / +248*
0.85
Electrical Specification
Contact Form
Switching Power Max. VA
Switching Voltage AC Max.
Switching Voltage DC Max.
Switching Current Max. A
All ratings are for resistive load only.
N/O (N/C)
25
240
120
0.6
Mechanical Dimensions
All dimensions are in millimeters (inches)
Twin Core PVC Cable
Four Core PVC Cable
16.5 dia. Hole
(0.65") in Tank
Datum Face
USA
Cynergy3 Components
2320 Paseo de las Americas, Suite 104
San Diego, CA 92154
Sales & Tech Support (866) 258-5057
Email: sales@cynergy3.com
EUROPE - UK
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Fax +44 (0) 1202 891918
Email:sales@cynergy3.com
M16 x 2 Thread
Gasket Seal
High Fluid Level
36mm
(1.4")
Nylon Nut
Gasket Seal
44mm
(1.7")
Long Reach single
switch. Factory set
Float orientation
Determines N/O or
N/C switching.
Two switch operation.
Collar quantities and
positions determined by
switching polarity/position
required. min fluid height
differential approx. 45mm
(1.8"): 140mm (5.5") max.
Low Fluid Level
202mm
(7.9") max.
179mm
*208mm
(7") max.
(8.2") max.
travel
4mm
(0.15")
27mm max.
ISO
9001
C E R T I F I E D
Competitive part number cross-reference available at:
