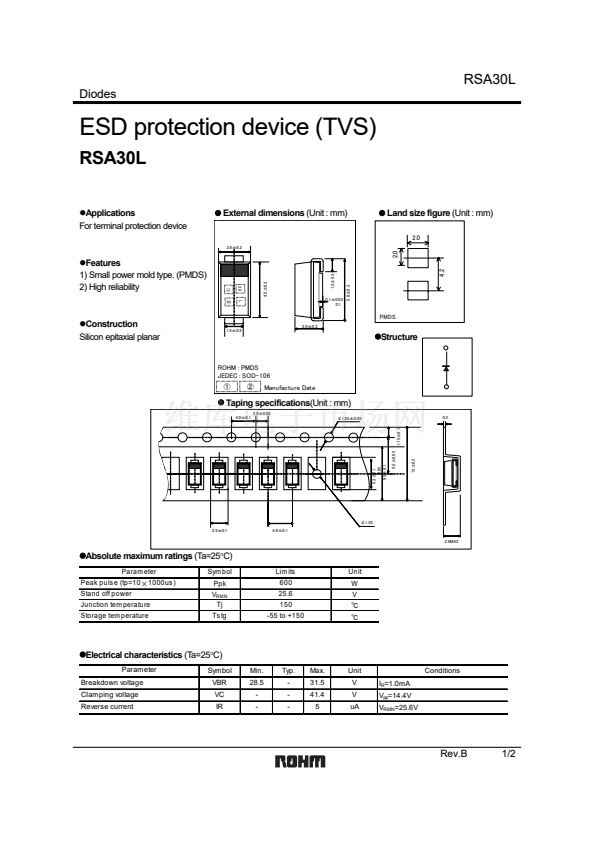

RSA30L
Diodes
ESD protection device (TVS)
RSA30L
Applications
For terminal protection device
External dimensions
(Unit : mm)
Land size figure
(Unit : mm)
2.0
2.6鹵0.2
4.5鹵0.2
0.1鹵0.02
銆€銆€銆€ 0.1
5.0鹵0.3
Features
1) Small power mold type. (PMDS)
2) High reliability
2.0
1.2鹵0.3
PMDS
Construction
Silicon epitaxial planar
1.5鹵0.2
2.0鹵0.2
Structure
ROHM : PMDS
JEDEC : SOD-106
鈶?/div>
鈶?/div>
Manufacture Date
Taping specifications(Unit
: mm)
2.0鹵0.05
4.0鹵0.1
蠁1.55鹵0.05
1.75鹵0.1
0.3
5.5鹵0.05
蠁1.55
2.9鹵0.1
4.0鹵0.1
2.8MAX
Absolute maximum ratings
(Ta=25擄C)
Param eter
P eak puls e (tp=10
脳
1000us )
S tand off power
Junction tem perature
S torage tem perature
Sym bol
Ppk
V
RMN
Tj
Ts tg
Lim its
600
25.6
150
-55 to +150
Unit
W
V
鈩?/div>
鈩?/div>
Electrical characteristics
(Ta=25擄C)
Parameter
Breakdown voltage
Clam ping voltage
Reverse current
Symbol
VBR
VC
IR
Min.
28.5
-
-
Typ.
-
-
-
Max.
31.5
41.4
5
Unit
V
V
uA
I
R
=1.0mA
V
pp
=14.4V
V
RMN
=25.6V
Conditions
5.3鹵0.1
銆€
0.05
9.5鹵0.1
12鹵0.2
4.2
30
L
