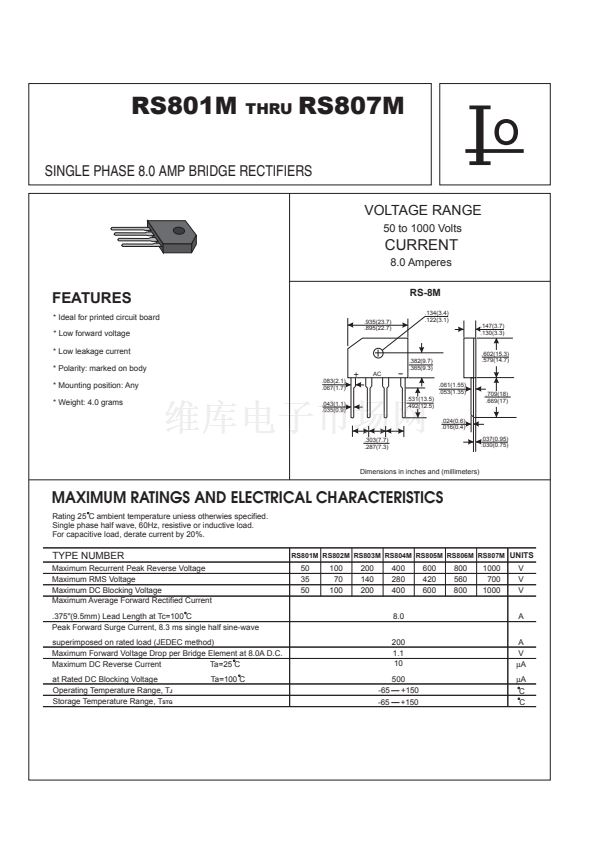

RS801M
THRU
RS807M
SINGLE PHASE 8.0 AMP BRIDGE RECTIFIERS
VOLTAGE RANGE
50 to 1000 Volts
CURRENT
8.0 Amperes
FEATURES
* Ideal for printed circuit board
* Low forward voltage
* Low leakage current
* Polarity: marked on body
* Mounting position: Any
* Weight: 4.0 grams
.083(2.1)
.067(1.7)
.043(1.1)
.035(0.9)
AC
.935(23.7)
.895(22.7)
RS-8M
.134(3.4)
.122(3.1)
.147(3.7)
.130(3.3)
.602(15.3)
.579(14.7)
.382(9.7)
.365(9.3)
.061(1.55)
.053(1.35)
.531(13.5)
.492(12.5)
.024(0.6)
.016(0.4)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
+
.709(18)
.669(17)
.303(7.7)
.287(7.3)
.037(0.95)
.030(0.75)
Dimensions in inches and (millimeters)
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at Tc=100 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Forward Voltage Drop per Bridge Element at 8.0A D.C.
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Operating Temperature Range, T
J
Storage Temperature Range, T
STG
Ta=100 C
RS801M RS802M RS803M RS804M RS805M RS806M RS807M
UNITS
50
35
50
100
70
100
200
140
200
400
280
400
8.0
200
1.1
10
500
-65 +150
-65 +150
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
V
碌A(chǔ)
碌A(chǔ)
C
C
