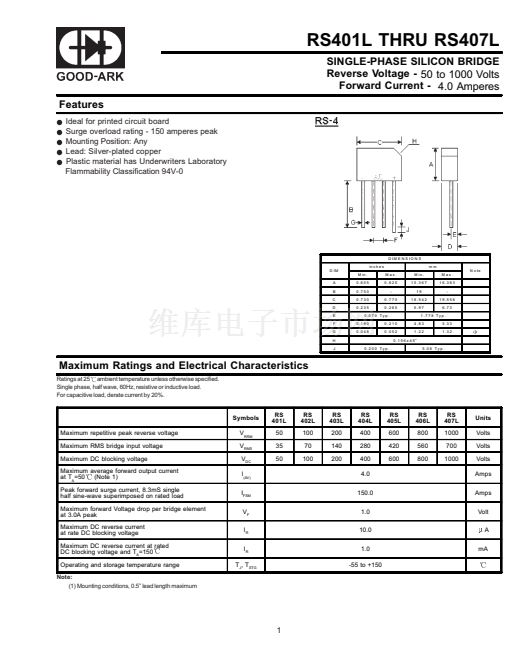

RS401L THRU RS407L
SINGLE-PHASE SILICON BRIDGE
Reverse Voltage -
50 to 1000 Volts
Forward Current -
4.0 Amperes
Features
Ideal for printed circuit board
Surge overload rating - 150 amperes peak
Mounting Position: Any
Lead: Silver-plated copper
Plastic material has Underwriters Laboratory
Flammability Classification 94V-0
D IM E N S IO N S
D IM
A
B
C
D
E
F
G
H
J
0 .2 0 0 T y p .
in c h e s
M in .
0 .6 0 5
0 .7 5 0
0 .7 3 0
0 .2 3 5
M ax.
0 .8 2 5
-
0 .7 7 0
0 .2 6 5
M in .
1 5 .3 6 7
19
1 8 .5 4 2
5 .9 7
mm
M ax.
1 6 .3 8 3
-
1 9 .5 5 8
6 .7 3
N o te
0 .0 7 0 T y p .
0 .1 9 0
0 .0 4 8
0 .2 1 0
0 .0 5 2
1 .7 7 8 T y p .
4 .8 3
1 .2 2
5 .3 3
1 .3 2
0 .1 5 6 x 4 5
o
5 .0 8 T y p .
Maximum Ratings and Electrical Characteristics
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Symbols
RS
401L
RS
402L
RS
403L
RS
404L
RS
405L
RS
406L
RS
407L
Units
Maximum repetitive peak reverse voltage
Maximum RMS bridge input voltage
Maximum DC blocking voltage
Maximum average forward output current
at T
A
=50 (Note 1)
Peak forward surge current, 8.3mS single
half sine-wave superimposed on rated load
Maximum forward Voltage drop per bridge element
at 3.0A peak
Maximum DC reverse current
at rate DC blocking voltage
Maximum DC reverse current at rated
DC blocking voltage and T
A
=150
Operating and storage temperature range
Note:
(1) Mounting conditions, 0.5聰 lead length maximum
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
I
R
T
J
, T
STG
50
35
50
100
70
100
200
140
200
400
280
400
4.0
150.0
1.0
10.0
1.0
-55 to +150
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amps
Amps
Volt
A
mA
1
1
2
